The high performance GL99 Series stereo microscopes utilize a Greenough design and feature a 1:7 zoom ratio with a103mmworking distance and a large visual field. Their parfocality allows an erect image of the observed specimens to stay in focus through repeated changes in the magnification. They feature a guidepost structure, making them lightweight, and a pair of horizontal magnification changing knobs to maximize comfort. Adding to the ergonomics is a choice of observation angle, either 45 or 60 degrees. In addition to performance and comfort, a highlight of the GL is their durability. Promoting one of the finest ball bearing guideways in the world, the focusing mechanism is extremely robust.
Standard configurations
|
Zoom ratio |
1:7 |
|
Objective zoom range |
0.65X-4.5X |
|
Eyepiece |
SWF10X/22mm |
|
Working distance |
103mm |
|
Interpupillary distance adjustment |
55mm-75mm |
|
Binocular head |
inclination of 45。or 60。 |
|
Diopter adjustment |
±5 diopter |
|
Optical Body Rotation |
360。 |
|
Voltage input |
110V/60HZ or 220V/50HZ |
|
Top halogen lamp |
6V15W adjustable brightness |
|
Bottom fluorescent lamp |
5W |
Technical data: M means magnification, V means visual field, W means Working distance(mm)

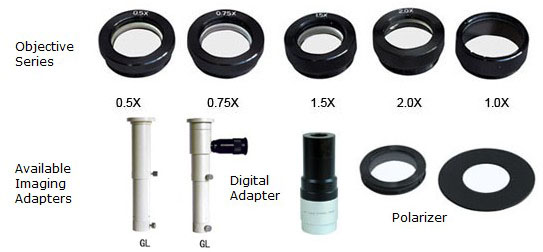

A means Auxiliary Objective
|
A |
Eyepiece |
W |
|||||||
|
SWF10X |
WFl5X |
WF20X |
WF25X |
||||||
|
M |
V |
M |
V |
M |
V |
M |
V |
||
|
0.5X |
3.3X-22.5X |
67.7-9.8 |
4.9X-33.8X |
49.2-7 |
6.5X-45X |
40-5.8 |
8.1X-56.3X |
37-5.2 |
163 |
|
0.75X |
4.9X-33.8X |
45.1-6.5 |
7.3X-50.6X |
32.8-4.7 |
9.75X-67.5 |
26.6-3.8 |
12.2X-84.4X |
24.6-3.5 |
117 |
|
1X |
6.5X-45X |
33.8-4.9 |
9.8X-67.5X |
24.6-3.5 |
13X-90X |
20-2.9 |
16.3X-112.5X |
18.5-2.6 |
103 |
|
1.5X |
9.8X-67.5X |
22.5-3.3 |
14.6X-101.3 |
16.4-2.3 |
19.5X-135X |
13.3-1.9 |
24.4X-168.8X |
12.3-1.7 |
45 |
|
2X |
13X-99X |
16.9-2.5 |
19.5X-135X |
12.3-1.8 |
266X-180X |
10-1.4 |
32.5X-225X |
9.2-1.3 |
40 |
