TOT-4 Series Stereo Zoom Microscope
Outstanding Ergonomic Design
35°viewing angle, suitable for long term sitting observation. 330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen.
Top Optical & Mechanical Design Greenough optical system, built-in rotating shaft zoom system.
No tilting Image in left &right light path in complete interpupillary distance, No dizziness feeling after long time observing.
Stereo angle for left & right light path is 12°, stereoscopic effect, large viewing field, high zoom ration.
Excellent Technology And Quality
High resolution, large depth of field, excellent color restoration and contrast.
Operation comfortable(manufactured by high-precision machine, excellent assembly technology ).
High- end material(PC resin cover, aluminiumalloy ,copper alloy parts, austenite stainless steel driving parts).
International Level Appearance Design
Elegant shape, high-end and integrated appearance design, comfortable operation.

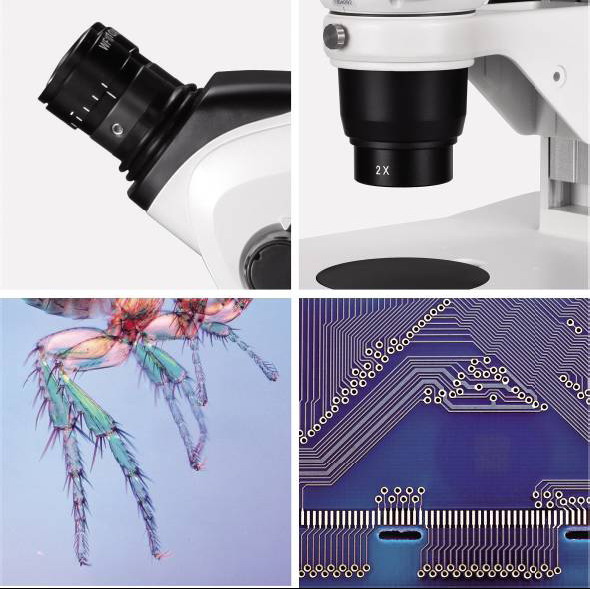

Various Accessories, Complete Function.

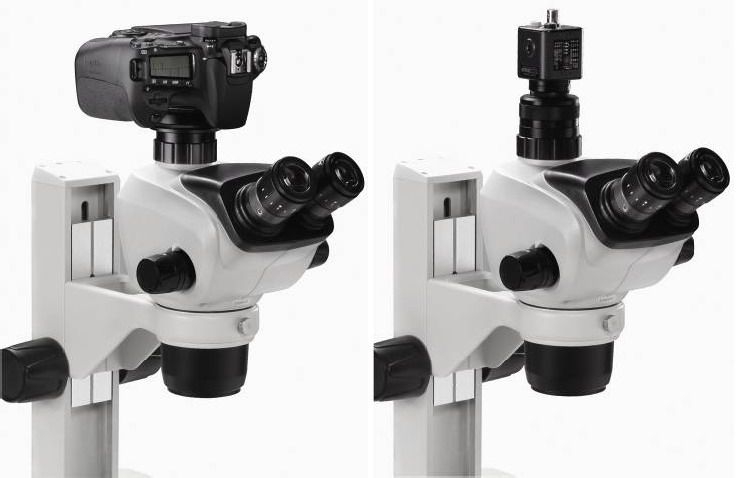

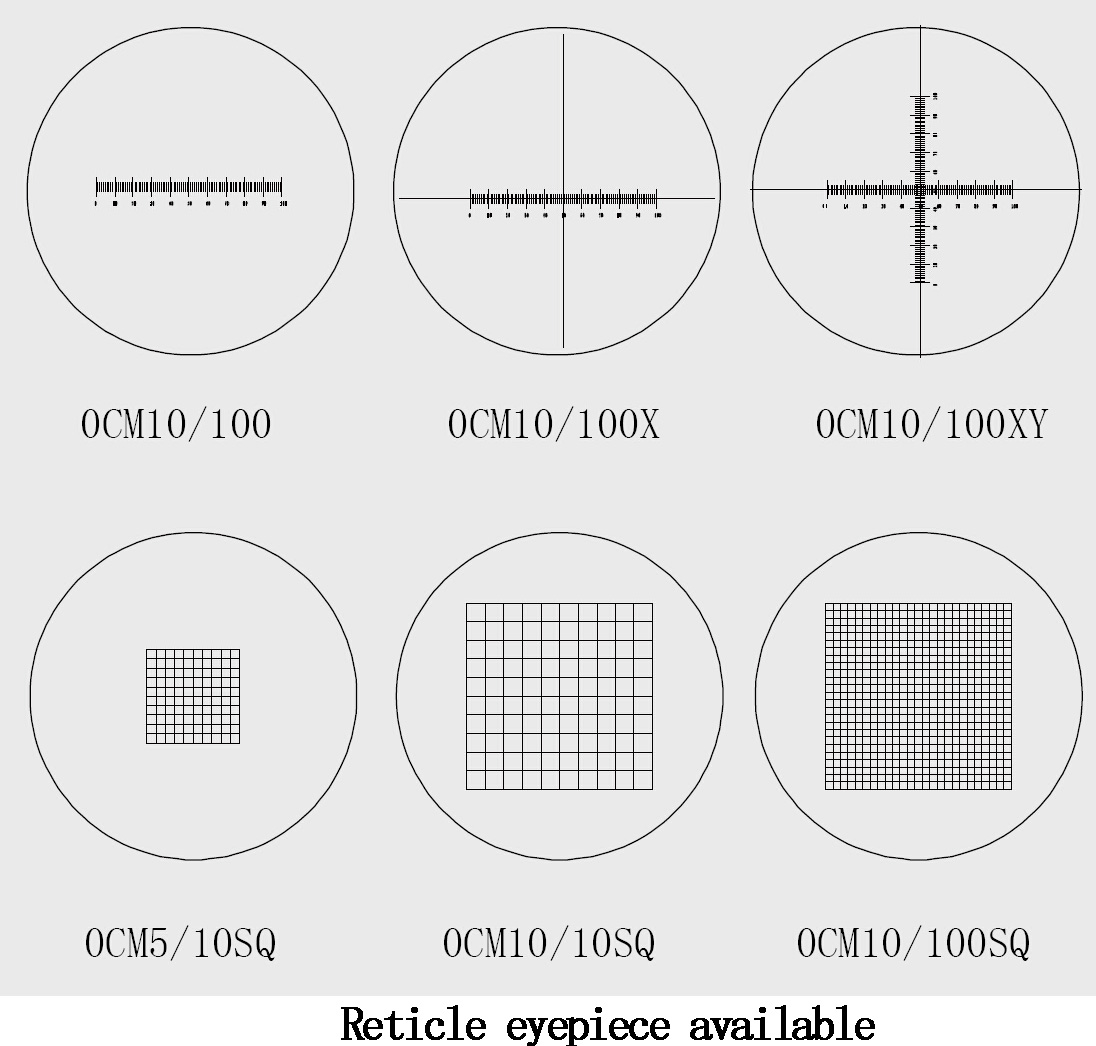

Different video output connectors, built-in digital image model.
Illumination optional: LED, halogen lamp, cold light source etc. (100V-240V wide voltage input).
Main Technical Specification
|
Model |
TOT-46 |
TOT-47 |
||
|
Objectives Zoom Range |
0.68X-4.7X |
0.66X-5.1X |
||
|
Zoom |
Ratio |
1 : 6.8 |
1 : 7.8 |
|
|
Field |
Diameter (mm) |
Φ23 |
Φ24 |
|
|
Working Distance (mm) |
110 |
110 |
||
|
Stereo Angle |
12° |
12° |
||
|
Viewing Angle |
35° |
35° |
||
|
Interpupillary Adjustable Distance (mm) |
50-75 |
50-75 |
||
|
Video Output Distribution |
100% |
100% |
||
|
Guide Rail Stand Focusing Distance |
(mm) |
80 |
||
|
Pillar Stand Focusing Distance (mm) |
|
115 |
||
|
TOT-46 Series Objective & Eyepiece Parameter List (0.68×-4.7×) |
||||
|
Additional Objective |
0.5X |
1X(built-in) |
2X |
|
|
W.D |
189mm |
110mm |
36mm |
|
|
10XEyepiece/Φ23mm |
Magnification |
3.4～23.5 |
6.8～47 |
13.6～94 |
|
Field dia. (mm) |
67.65～9.79 |
33.82～4.89 |
16.91～2.46 |
|
|
20XEyepiece/Φ12mm |
Magnification |
6.8～47 |
13.6～94 |
27.2～188 |
|
Field dia.(mm) |
35.294～5.11 |
17.65～2.55 |
8.82～1.28 |
|
|
TOT-47 Series Objective & Eyepiece Parameter List (0.66×-5.1×) |
||||
|
Additional Objective |
0.5X |
1X(built-in) |
2X |
|
|
W.D |
189mm |
110mm |
36mm |
|
|
10XEyepiece/Φ24mm |
Magnification |
3.3～25.5 |
6.6～51 |
13.2～102 |
|
Field dia. (mm) |
72.73～9.41 |
36.36～4.71 |
18.18～2.35 |
|
|
20XEyepiece/Φ12mm |
Magnification |
6.6～51 |
13.2～102 |
26.4～204 |
|
Field dia. (mm) |
396.36～4.71 |
18.18～2.35 |
9.09～1.18 |
|

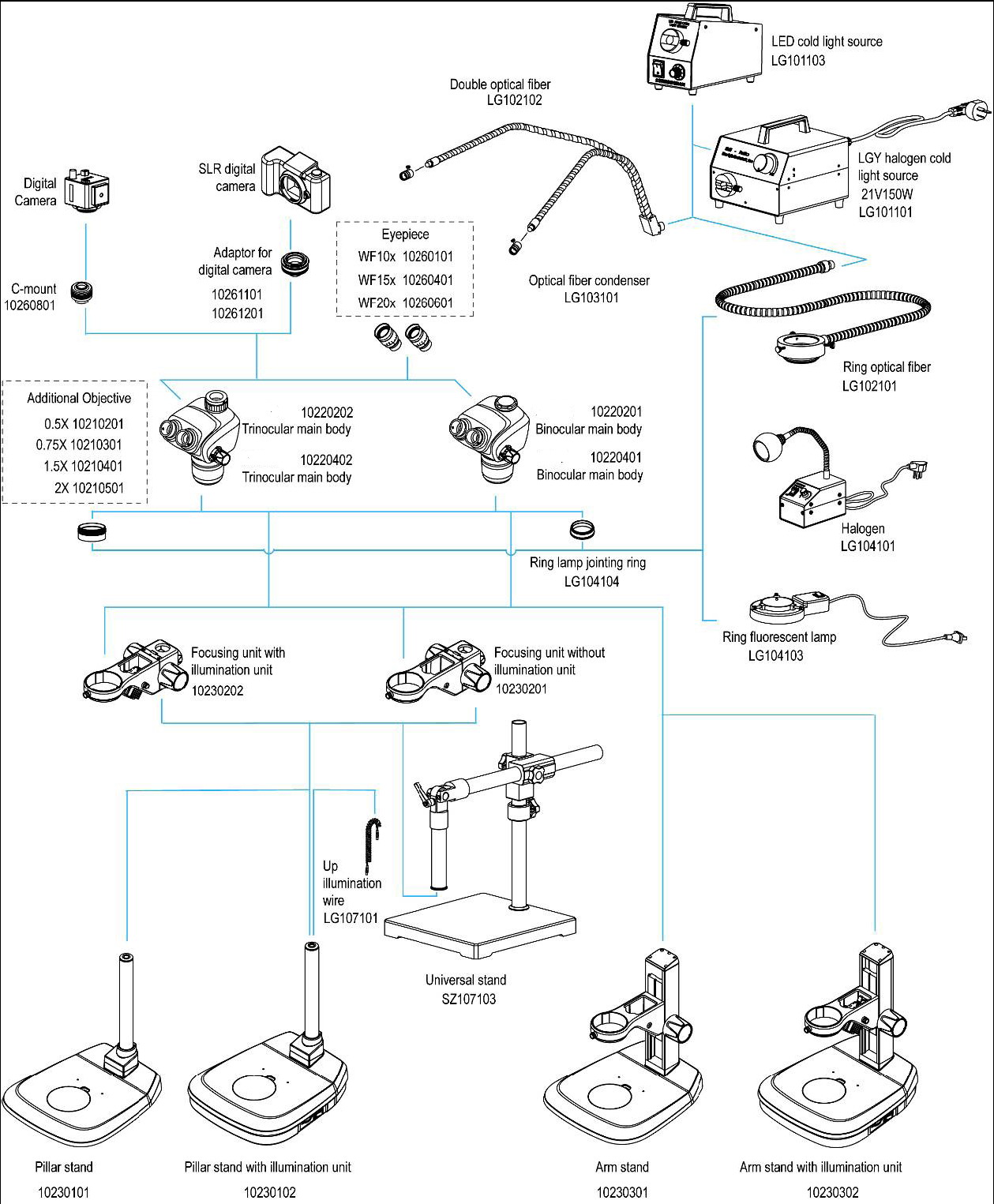

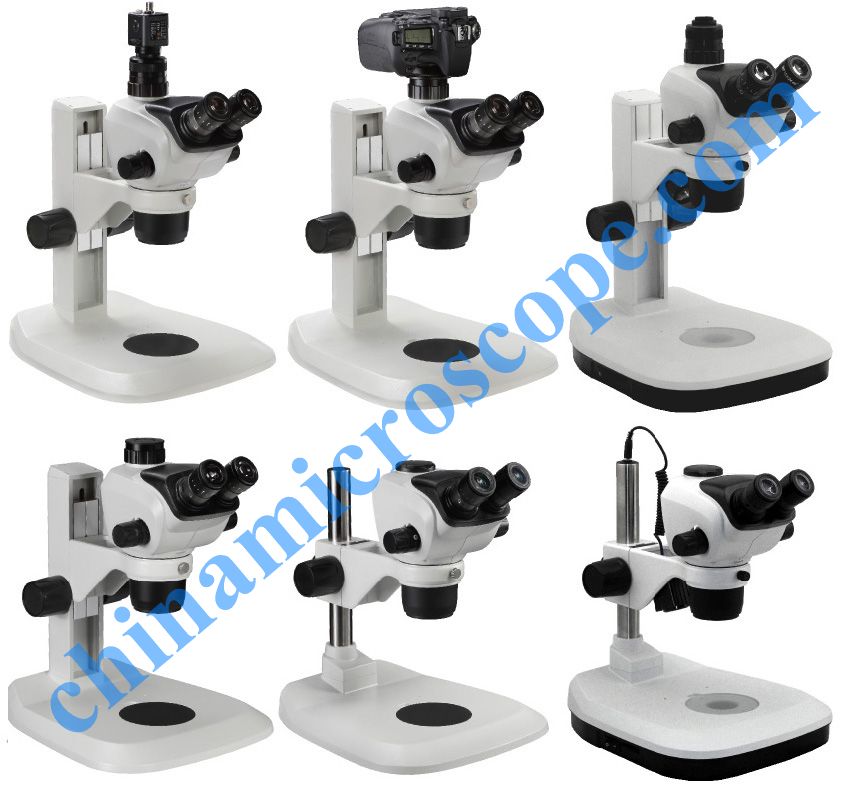

TOT-46/7 Series Zoom Stereo Microscope Outfit
|
Items |
TOT-46BP |
TOT-46B2L |
TOT-47BP |
TOT-47B2L |
||
|
Main Body (1X objective built in) |
Binocular |
● |
● |
● |
● |
|
|
Trinocular |
○ |
○ |
○ |
○ |
||
|
Digital Head |
○ |
○ |
○ |
○ |
||
|
10XEyepiece/Φ23mm |
●● |
●● |
|
|
||
|
10XEyepiece/Φ24mm |
|
|
●● |
●● |
||
|
20XEyepiece/Φ12mm |
○○ |
○○ |
○○ |
○○ |
||
|
0.5X/2X Objective |
○ |
○ |
○ |
○ |
||
|
Focusing unit |
● |
● |
● |
● |
||
|
No light |
● |
|
● |
|
||
|
Reflecting 3W LED |
|
● |
|
● |
||
|
Transmitting 3W LED |
|
● |
|
● |
||
|
Black & white Plate |
● |
● |
● |
● |
||
|
Glass Plate |
|
● |
|
● |
||
|
Arm stand |
● |
● |
● |
● |
||
|
Pillar stand |
○ |
○ |
○ |
○ |
||
|
Base (330×300mm) |
● |
● |
● |
● |
||
|
C-mount |
0.5X, 1X |
○ |
○ |
○ |
○ |
|
|
Adaptor for digital photo camera |
○ |
○ |
○ |
○ |
||
|
Two dimensional travelling table |
○ |
○ |
○ |
○ |
||
|
Single pole Universal Stand |
○ |
○ |
○ |
○ |
||

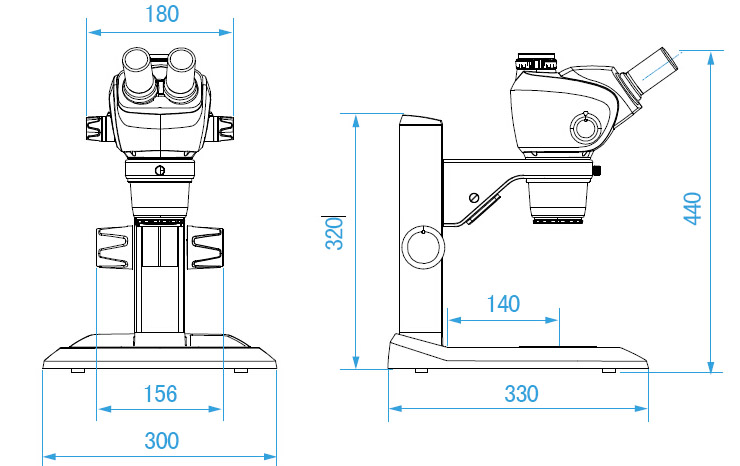

TOT-46/7 Series Zoom Stereo Microscope Size(mm)

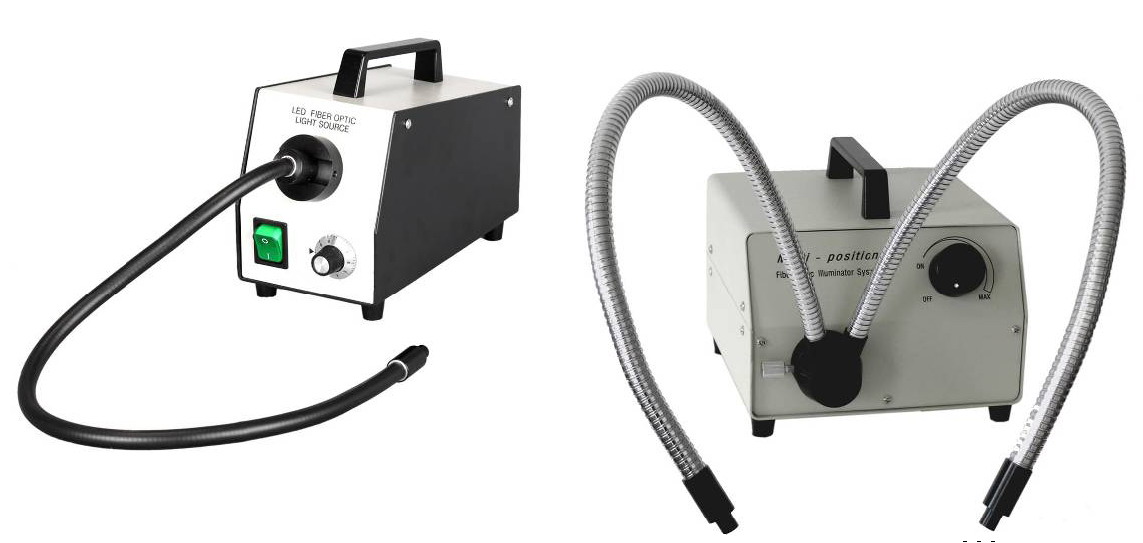

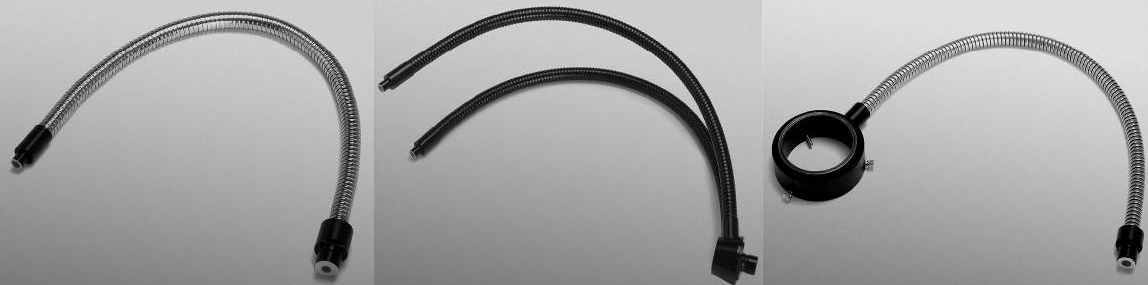

Optical Fiber Cold Light Source
