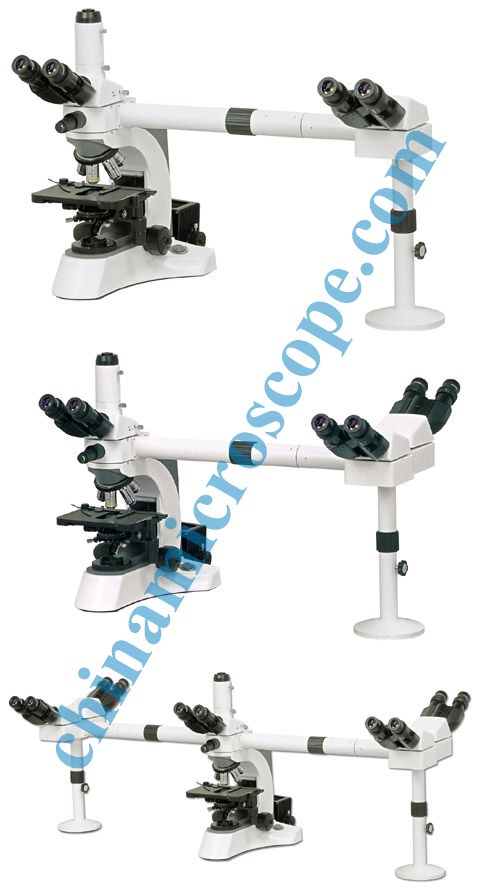

Multi-viewing Microscope allows people observation at the same time.
With the features of Infinite Optical System, Effective Illumination, LED Pointer and images Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.
Specification：
|
|
XSP-YM5 |
XSP-YM3 |
XSP-YM2 |
|
|
Optical System |
Infinite Optical System |
● |
● |
● |
|
Viewing Head |
Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm |
1 pc |
1 pc |
1 pc |
|
Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm |
4 pcs |
2 pcs |
1 pc |
|
|
Eyepiece |
Extra Wide Field Eyepiece EW10×/ 20 |
10pcs |
6 pcs |
4 pcs |
|
Nosepiece |
Inverse Quintuple Nosepiece |
● |
● |
● |
|
Objective |
Infinite Plan Achromatic Objective 4×、10×、40×、100× |
● |
● |
● |
|
Condenser |
Swing Condenser N.A.0.9/ 0.25 |
● |
● |
● |
|
Focusing |
Coaxial Coarse & Fine Focus Adjustment, Fine Division0.001mm |
● |
● |
● |
|
Stage |
Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm |
● |
● |
● |
|
Kohler Illumination |
External Illumination, Halogen Lamp 24V/ 100W |
● |
● |
● |
|
Pointer |
Green LED Pointer , Brightness Adjustable |
● |
● |
● |
|
Dual Color Pointer , Brightness Adjustable |
○ |
○ |
○ |
|
|
Photo Attachment |
○ |
○ |
○ |
|
|
Video Adapter |
C Mount 1× |
○ |
○ |
○ |
|
C Mount 0.5× |
○ |
○ |
○ |
|
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace
with technological advances, we have reserved the right to
make design
modification and changes without notice.
