TM-55、TM-70 series zoom stereo microscopes have biggish zoom ratio, magnification from low to high non-flash in focusing course, large depth of field, long working distance. It has many kinds of attachments. It can match with many stands and universal stands. Trinocular main body can connect CCD (COMS) camera, digital camera or film camera. Many kinds of eyepieces, divisional eyepieces and auxiliary objectives can be selected. It can match LED ring illuminator, ring fluorescent lamp, fiber etc. It can be satisfied the demands of checking up, measure and analysis in modern biology, medicine, environment, agriculture and forestry, chemistry industry, police, micro-electronics, semiconductors etc. fields. It is widely used in schools, biology engineering and science research, industry assemble, test and measure and controlling the quality.

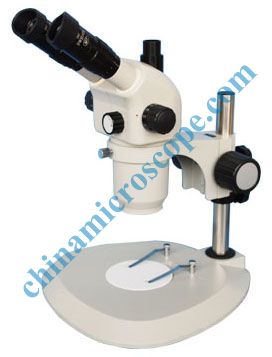

TM-55、TM-70 series zoom stereo microscopes
Main technology Specifications：
● Total magnification(standard outfits): TM-55 series: 6X~55X, TM-70 series: 8X~70X
Extend total magnification：TM-55 series: 330X, MZS0870 series: 420X
● Zoom objective magnification: TM-55 series: 0.6X~5.5X, zoom ratio is 9.2:1. The working distance is108mm.
TM-70 series: 0.8X~7.0X, zoom ratio is 8.8:1. The working distance is108mm.
● With wide field and high eye point eyepiece SWH10X(Φ23mm)
● Trinocular/Binocular drawtubes horizontal inclined 35°and main body can be rotated 360°
● The range of adjusting the diopter is ±6
● Interpupillary distance adjustment range52mm~76mm(Left and right move at the same time)
● The range of adjusting the focus is50mm(the square post is100mm).
The diameter of the center working stage is Φ95mm
● The measurement to match between the support and the main body is Φ76mm
● The distance between from the post center to the main body center is140mm
● The size of the round post is Φ25mm
● Illuminators : The down illuminator is the transmitted illumination of the fluorescent lamp(5W), The up illuminator is the reflected illumination of the halogen lamp(6V、10W).
Standard specification：
|
|
TM-55 |
TM-55T |
TM-70 |
TM-70T |
|
Main body ZS0655 |
● |
|
|
|
|
Main body ZS0655T |
|
● |
|
|
|
Main body ZS0870 |
|
|
● |
|
|
Main body ZS0870T |
|
|
|
● |
|
Eyepieces SWH10X |
●● |
●● |
●● |
●● |
|
Eye shields |
●● |
●● |
●● |
●● |
|
Stand SD1 |
● |
● |
● |
● |
Main optical data:
|
Eyepiece |
Objective |
Main body |
0.37X objective |
0.5X objective |
0.7X objective |
1.5X objective |
2X objective |
||||||
|
0.6X ~5.5X |
0.8X ~7X |
0.22X ~2.04X |
0.3X ~2.59X |
0.3X ~2.75X |
0.4X ~3.5X |
0.42X ~3.85X |
0.56X ~4.9X |
0.9X ~8.25X |
1.2X ~10.5X |
1.2X ~11X |
1.6X ~14X |
||
|
10X |
Total magnification |
6X ~55X |
8X ~70X |
2.22X ~20.4X |
2.96X ~25.9X |
3X ~27.5X |
4X ~35X |
4.2X ~38.5X |
5.6X ~49X |
9X ~82.5X |
12X ~105X |
12X ~110X |
16X ~140X |
|
Diameter of visual field(mm) |
Φ38.3 ~Φ4.2 |
Φ28.75 ~Φ3.3 |
Φ99.1 ~Φ10.8 |
Φ74.3 ~Φ8.5 |
Φ76.7 ~Φ8.4 |
Φ57.5 ~Φ6.6 |
Φ54.8 ~Φ6 |
Φ41.1 ~Φ4.7 |
Φ25.6 ~Φ2.8 |
Φ19.2 ~Φ2.2 |
Φ19.2 ~Φ2.1 |
Φ14.4 ~Φ1.6 |
|
|
15X |
Total magnification |
9X ~82.5X |
12X ~105X |
3.33X ~30.5X |
4.44X ~38.9X |
4.5X ~41.25X |
6X ~52.5X |
6.3X ~57.75X |
8.4X ~73.5X |
13.5X ~123.75X |
18X ~157.5X |
18X ~165X |
24X ~210X |
|
Diameter of visual field(mm) |
Φ28.3 ~Φ3.1 |
Φ21.25 ~Φ2.4 |
Φ76.6 ~Φ8.35 |
Φ57.4 ~Φ6.6 |
Φ56.7 ~Φ6.2 |
Φ42.5 ~Φ4.9 |
Φ40.5 ~Φ4.4 |
Φ30.4 ~Φ3.5 |
Φ18.9 ~Φ2.1 |
Φ14.2 ~Φ1.6 |
Φ14.2 ~Φ1.5 |
Φ10.6 ~Φ1.2 |
|
|
20X |
Total magnification |
12X ~110X |
16X ~140X |
4.44X ~40.7X |
5.92X ~51.8X |
6X ~55X |
8X ~70X |
8.4X ~77X |
11.2X ~98X |
18X ~165X |
24X ~210X |
24X ~220X |
32X ~280X |
|
Diameter of visual field(mm) |
Φ23.3 ~Φ2.5 |
Φ17.5 ~Φ2 |
Φ63.1 ~Φ6.9 |
Φ47.3 ~Φ5.4 |
Φ46.7 ~Φ5.1 |
Φ35 ~Φ4 |
Φ33.3 ~Φ3.6 |
Φ25 ~Φ2.9 |
Φ15.6 ~Φ1.7 |
Φ11.7 ~Φ1.3 |
Φ11.7 ~Φ1.3 |
Φ8.75 ~Φ1 |
|
|
30X |
Total magnification |
18X ~165X |
24X ~210X |
6.66X ~61.1X |
8.88X ~77.7X |
9X ~82.5X |
12X ~105X |
12.6X ~115.5X |
16.8X ~147X |
27X ~247.5X |
36X ~315X |
36X ~330X |
48X ~420X |
|
Diameter of visual field(mm) |
Φ15 ~Φ1.6 |
Φ11.25 ~Φ1.3 |
Φ40.5 ~Φ4.4 |
Φ30.4 ~Φ3.5 |
Φ30 ~Φ3.3 |
Φ22.5 ~Φ2.6 |
Φ21.4 ~Φ2.3 |
Φ16.1 ~Φ1.8 |
Φ10 ~Φ1.1 |
Φ7.5 ~Φ0.9 |
Φ7.5 ~Φ0.8 |
Φ5.625 ~Φ0.6 |
|
|
Working distance(mm) |
108 |
275 |
195 |
145 |
50 |
35 |
|||||||
Note: Please use lengthen round post when using 0.37X or 0.5X objective. When using 0.37X objective, the round post lengthen to350 mmat least.
