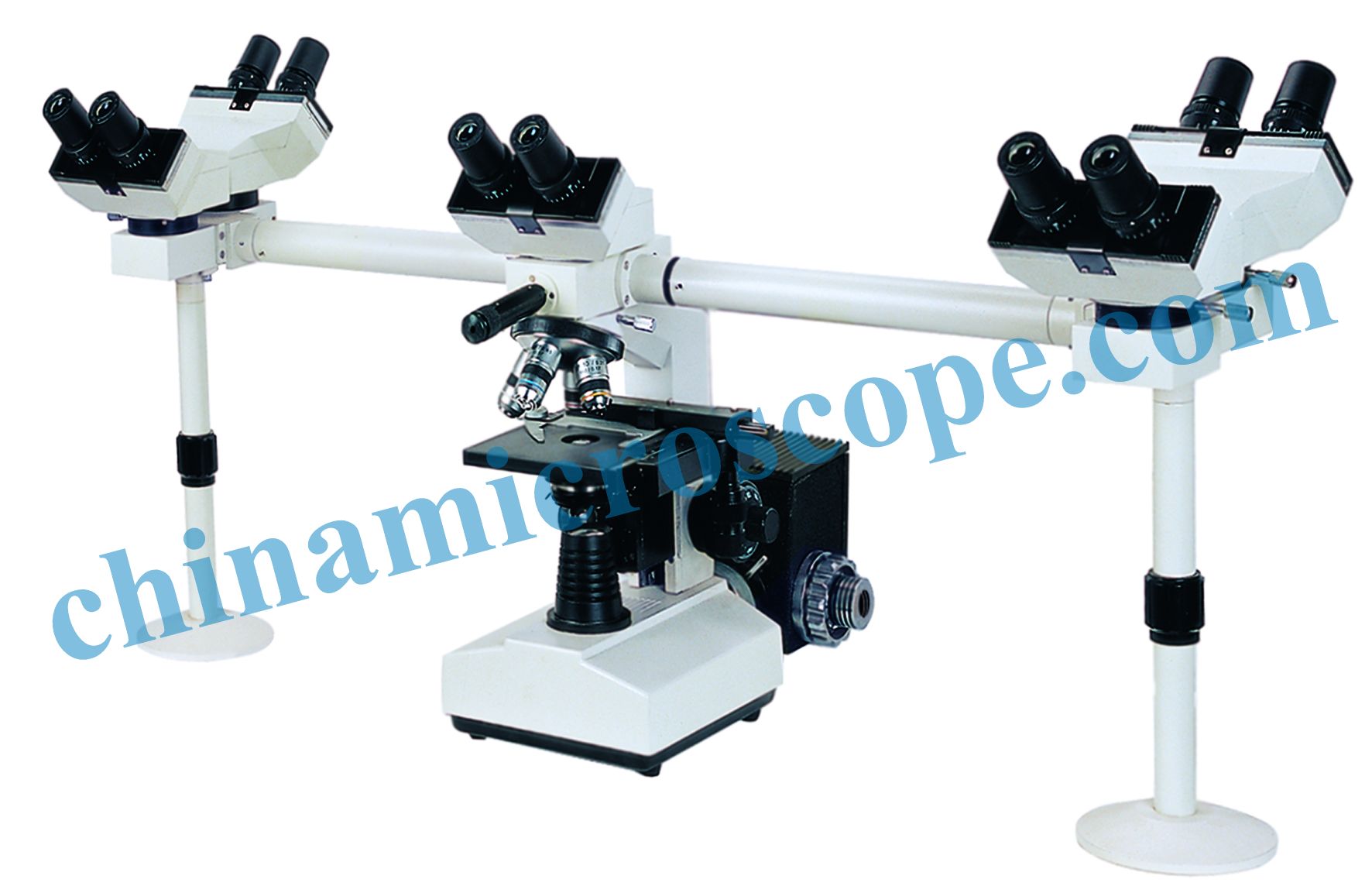

The microscope is equipped with five heads for five persons observing at the same time.
Specification：
|
|
XSZ-N204 |
XSZ-N304 |
XSZ-N510 |
|
|
Viewing Head |
Sliding Binocular Head, inclined at 45° |
2Pcs |
1Pc |
5Pcs |
|
Monocular Head, inclined at 45° |
|
2Pcs |
|
|
|
Eyepiece |
Wide Field Eyepiece WF10× |
4Pcs |
4Pcs |
10Pcs |
|
Nosepiece |
Quadruple Nosepiece |
● |
● |
● |
|
Objective |
Achromatic Objective 4×、 10×、40×、100× |
● |
● |
● |
|
Condenser |
Abbe Condenser NA1.25 |
● |
● |
● |
|
Focusing |
Coaxial Coarse & Fine Focus Adjustment, Fine Division0.002mm |
● |
● |
● |
|
Stage |
Double Layers Mechanical Stage 140×140mm/ 75×50mm |
● |
● |
● |
|
Illumination |
S-LED Illumination, Brightness Adjustable |
● |
● |
● |
|
Halogen Lamp 6V/ 20W |
○ |
○ |
|
|
|
Halogen Lamp 24V/ 100W |
|
|
○ |
|
|
Pointer |
Green LED Pointer , Brightness Adjustable |
|
|
● |
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have
reserved the right to
make design modification and changes without notice.
