Excellent infinite Optical System. |
|
|
Comfortable and Enjoyable Operation With low and Repetitive Position Control knob |
|
|
Triangle Structure Make it much steadier and less working Space Occupation |
|
|
Easy, Safe and Reliable Lamp Replacement Device |
|
|
|

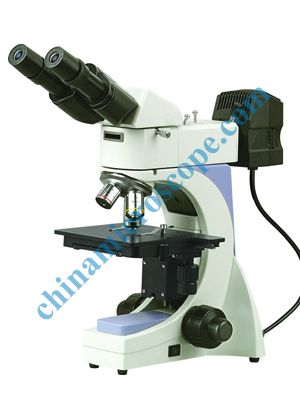

Y-ZM1 |
||
|
Viewing Head |
Binocular Head |
● |
||
|
Trinocular Head |
○ |
|||
|
Eyepiece |
WF10×/18 |
● |
||
|
WF8×/18 |
○ |
|||
|
WF10×/18 with0.1mmMicrometer & Cross Hair |
○ |
|||
|
WF12.5×/15 |
○ |
|||
|
Objective |
Infinitive plan achromatic objectives |
4×/0.1/∞/- WD25.4mm |
● |
|
|
10×/0.25/∞/- WD11.0mm |
● |
|||
|
20×/0.40/∞/- WD6.0mm |
○ |
|||
|
40×/0.60/∞/0 WD3.7mm |
● |
|||
|
40×/0.65/∞/- WD0.78mm |
○ |
|||
|
50×/0.75/∞/- WD0.32mm |
○ |
|||
|
80×/0.90/∞/- WD0.2mm |
○ |
|||
|
100×/0.90/∞/0 WD0.7mm |
○ |
|||
|
Nosepiece |
Quadruple Nosepiece |
● |
||
|
Stage |
Double layer mechanical stage150×140mm/75×50mm |
● |
||
|
Focusing |
Coaxial Fine & Coarse Adjustment |
● |
||
|
Illumination |
Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable |
● |
||
|
Diascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable |
○ |
|||
|
Filters |
Blue, Green, Yellow & Ground Glass |
● |
||
|
Polarization Set |
|
○ |
||
|
Specimen Presser |
For metallurgical specimen preparation |
○ |
||
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to
make design modification and changes without notice.
