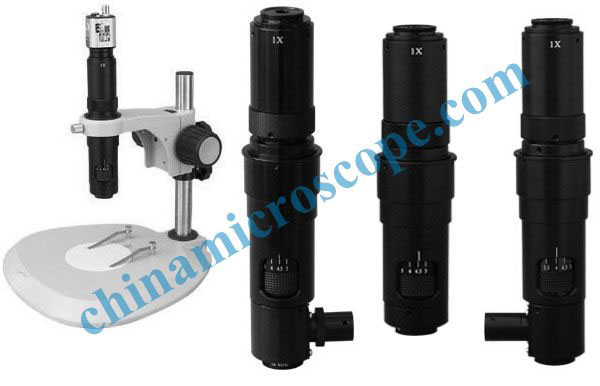

MIC TMM-H850 series high-resolution zoom monocular video microscope systems have four types, TMM-H850, TMM-H850C, TMM-H850-D, TMM-H850C-D (Difference: TMM-H850Coutfits coaxial illumination, TMM-H850-D can click-stop at integer magnification in zoom course, TMM-H850C-D outfits coaxial illumination and can click-stop at integer magnification in zoom course). They are characterized by the infinitely far and coaxial illuminate optical system, high-resolution and high definition. They can be used in electric equipments, semi-conductor, LCD，LED etc. for observing digital image, checking-up and survey. We can observe different objects by coaxial illuminating with LED or fiber optic illumination.
Main technology Specifications：
The range of objective zoom magnification: 0.75X-5X
Standard total magnification: 0.75X-5X, extend total magnification: 0.07X-50X(use auxiliary objectives and kinds of magnification CCD adapters)
Adjusting high lightness LED coaxial illumination (TMM-H850C)
Parfocal in zoom course, even illumination, high resolution.
The measurement to match between the support and the main body：Φ45mm
0.3X、0.4X、0.5X、0.67X、1X(standard outfits)、1.5X、2X seven kinds of CCD adapters to be selected.
0.3X、0.5X、0.75X、1X(standard outfits)、1.5X、2X、5X auxiliary objectives to be selected.
Standard specification：
|
|
TMM-H850 |
TMM-H850-D |
TMM-H850C |
TMM-H850C-D |
|
Main body TMM-H850 |
● |
|
|
|
|
Main body TMM-H850-D |
|
● |
|
|
|
Main body TMM-H850C |
|
|
● |
|
|
Main body TMM-H850C-D |
|
|
|
● |
|
Stand SD1-D |
● |
● |
● |
● |
|
LED illuminator MLC1000 |
|
|
● |
● |
Main optical data：
|
Objective |
CCD adapter |
|||||||
|
|
0.3X |
0.4X |
0.5X |
0.67X |
1X |
1.5X |
2X |
|
|
0.3X |
Optical magnification |
0.07X-0.45X |
0.09X-0.6X |
0.11X-0.75X |
0.15X-1X |
0.225X-1.5X |
0.34X-2.25X |
0.45X-3X |
|
Field of video(mm) |
51.4X68.6-8X10.67 |
40X53.33-6X8 |
32.7X43.6-4.8X6.4 |
24X32-3.6X4.8 |
16X21.3-2.4X3.2 |
10.6X14.12-1.6X2.13 |
8X10.67-1.2X1.6 |
|
|
Working distance(mm) |
293 |
|||||||
|
0.5X |
Optical magnification |
0.11X-0.75X |
0.15X-1X |
0.19X-1.25X |
0.25X-1.675X |
0.375X-2. 5X |
0.56X-3.75X |
0.75X-5X |
|
Field of video(mm) |
32.7X43.6-4.8X6.4 |
24X32-3.6X4.8 |
18.9X25.3-2.88X3.84 |
14.4X19.2-2.15X2.9 |
9.6X12.8-1.44X1.92 |
6.4X8.6-0.96X1.28 |
4.8X6.4-0.72X0.96 |
|
|
Working distance(mm) |
175 |
|||||||
|
0.75X |
Optical magnification |
0.17X-1.125X |
0.225X-1.5X |
0.28X-1.875X |
0.4X-2.5X |
0.56X-3.75X |
0.84X-5.625X |
1.125X-7.5X |
|
Field of video(mm) |
21.2X28.2-3.2X4.27 |
16X21.33-2.4X3.2 |
12.9X17.1-1.92 X2.56 |
9X12-1.44 X1.92 |
6.4X8.6-0.96X1.28 |
4.3X5.7-0.64X0.85 |
3.2X4.27-0.48X0.64 |
|
|
Working distance(mm) |
117 |
|||||||
|
1X |
Optical magnification |
0.225X-1.5X |
0.3X-2X |
0.375X-2. 5X |
0.5X-3.35X |
0.75X-5X |
1.125X-7.5X |
1.5X-10X |
|
Field of video(mm) |
16X21.3-2.4X3.2 |
12X16-1.8X2.4 |
9.6X12.8-1.44X1.92 |
7.2X9.6-1.07X1.4 |
4.8X6.4-0.72X0.96 |
3.2X4.27-0.48X0.64 |
2.4X3.2-036X0.48 |
|
|
Working distance(mm) |
82 |
|||||||
|
1.5X |
Optical magnification |
0.34X-2.25X |
0.45X-3X |
0.5625X-3.75X |
0.75X-5X |
1.125X-7.5X |
1.6875X-11.25X |
2.25X-15X |
|
Field of video(mm) |
10.6X14.1-1.6X2.13 |
8X10.67-1.2X1.6 |
6.4X8.53-0.96X1.28 |
4.8X6.4-0.72X0.96 |
3.2X4.27-0.48X0.64 |
2.13X2.84-0.32X0.43 |
1.6X2.13-0.24X0.32 |
|
|
Working distance(mm) |
54 |
|||||||
|
2X |
Optical magnification |
0.45X-3X |
0.6X-4X |
0.75X-5X |
1X-6.7X |
1.5X-10X |
2.25X-15X |
3X-20X |
|
Field of video(mm) |
8X10.7 -1.2X1.6 |
6X8 -0.9X1.2 |
4.8X6.4-0.72X0.96 |
3.6X4.8-0.54X0.72 |
2.4X3.2-0.36X0.48 |
1.6X2.1 -0.24X0.32 |
1.2X1.6 -0.18X0.24 |
|
|
Working distance(mm) |
35 |
|||||||
|
4.5X |
Optical magnification |
1.01X-6.75X |
1.35X-9X |
1.69X-11.25X |
2.26X-15.075X |
3.375X-22.5X |
5.06X-33.75X |
6.75X-45X |
|
Field of video(mm) |
3.56X4.74-0.53X0.71 |
2.67X3.56-0.4X0.53 |
2.13X2.84-0.32X0.43 |
1.59X2.12-0.24X0.32 |
1.07X1.42-0.16X0.21 |
0.71X0.95-0.11X0.14 |
0.53X0.71-0.08X0.11 |
|
|
Working distance(mm) |
16 |
|||||||
|
Magnification range of zoom body 0.75X-5X |
||||||||
Note: Optical magnification and the field of video are based on 1/3" CCD camera and 14"monitor
|
Item/Model |
ZDH0850, ZDH0850C, ZDH0850-D, ZDH0850C-D |
|||
|
Optical magnification |
0.75X~5.0X |
|||
|
|
0.75X |
2.0X |
5.0X |
|
|
NA |
0.03 |
0.067 |
0.097 |
|
|
Depth of field |
1.8mm |
0.30mm |
0.08mm |
|
|
Resolution |
11.2μm |
5.0μm |
3.5μm |
|
|
TV distortion |
0.26% |
0.31% |
0.12% |
|
|
Install dimension |
0Φ45 mm-0.1 |
|||
|
Fine adjustment(choose to buy) |
0~6mm |
|||
|
The largest compatible camera |
1/2" |
|||
|
CCD whorl mount |
1 inch 32 button |
|||
The depth of field is the value of parsing images if you use 1/2" CCD camera and monitor of level 320 line. (Imaging surface concessional confusion circumference: 40μm)
Resolution is the theory resolution of wavelength in 550nm.
