Information
1.Sharp
stereo erect image over a vide field view.
2.45° inclined and 360° rtational binocular head with locked-in eyepiece.The
left ocular-tube with diopter adjustment ±5dp,The interpupillary distance is
between 55-75mm
3.Three kinds of 90° rotational objective selection:1x/2x,1x/3x,2x/4x.

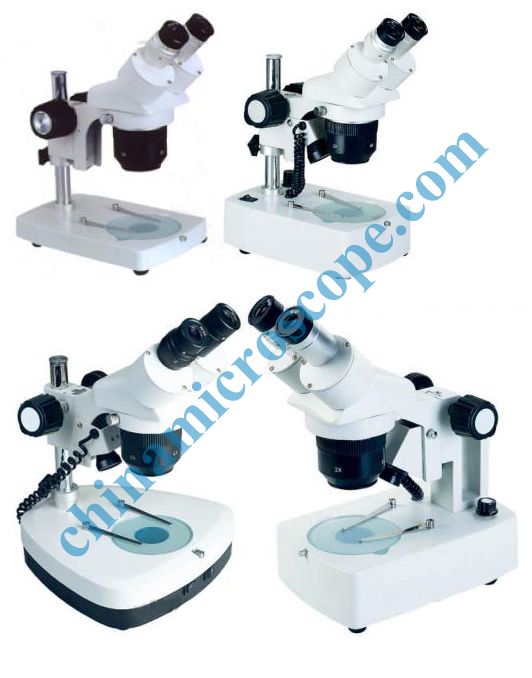

4.ZTX-10/ZTX-20 series supplied with pillar style stand, ZTX-10-W ZTX-20-W
series supplied with arm curved style stand.
5.Electric apparatus has CE approval
6.Power supply 110V/60Hz or 220V/50Hz
7.Each set packed in styorfoam and in an inner box.Four sets in one carton
8.A wide range of optional accessories.
Optional accessories:
1.Eyepiece WF5x,WF10x,WF15x,WF20x
2.Auxiliary objective 0.5x,0.75x,1.5x,2x
3.Video Attachment for Microscope
4.Darkfield stage,Φ94.5mm
5.Jewel tweezer
6.White/black workingplate,Φ95mm
7.Frosted glass working plate,Φ95mm
8.Fluorescent bulb 5W
9.Halogen bulb 12V/10W
10.Ring fluorescent lighting 8W & 10W
11.Wooden cabinet with lock and key/Aluminium case
Technique data
|
Model |
Eyepiece |
Eyepiece |
Working Stage |
Illumination |
|
Z10 |
WF10× |
Rotated |
White/Black |
Natural illumination |
|
Z10-W |
WF10× |
White/Black |
Natural illumination |
|
|
Z10-C1 |
WF10× |
White/Black |
Natural illumination |
|
|
Z-20 |
WF10× |
Frosted glass |
Incident illumination & transmitted illumination |
|
|
Z-20-W |
WF10× |
Frosted glass |
Incident illumination & transmitted illumination |
|
|
Z-20-C2 |
WF10× |
Frosted glass |
Incident illumination & transmitted illumination |
|
|
Optional
accessories：0.5×、0.75x、1.5×、2× |
||||
Optical data: E means eyepiece, V means visual field, W means Working distance (mm), O means Objective
|
E |
Stand Objective |
Auxiliary Objective |
|||||||||
|
0.5X |
0.75X |
1.5X |
2.0X |
||||||||
|
O |
V |
W |
V |
W |
V |
W |
V |
W |
W |
V |
|
|
5X |
1X |
20 |
80 |
37.5 |
120 |
24 |
75 |
14 |
40 |
11 |
25 |
|
2X |
10 |
80 |
19 |
120 |
12 |
75 |
7 |
40 |
5.5 |
25 |
|
|
3X |
7 |
80 |
12.5 |
120 |
8 |
75 |
4.5 |
40 |
3.5 |
25 |
|
|
4X |
5 |
80 |
19 |
120 |
6 |
75 |
3.5 |
40 |
2.8 |
25 |
|
|
10X |
1X |
20 |
80 |
37.5 |
120 |
25 |
75 |
14 |
40 |
11 |
25 |
|
2X |
10 |
80 |
19 |
120 |
12 |
75 |
7 |
40 |
5.5 |
25 |
|
|
3X |
7 |
80 |
12.5 |
120 |
8 |
75 |
4.5 |
40 |
3.5 |
25 |
|
|
4X |
5 |
80 |
19 |
120 |
6 |
75 |
3.5 |
40 |
3 |
25 |
|
|
15X |
1X |
15 |
80 |
30 |
120 |
18 |
75 |
10 |
40 |
8 |
25 |
|
2X |
7.5 |
80 |
15 |
120 |
9 |
75 |
5 |
40 |
4 |
25 |
|
|
3X |
5 |
80 |
9.5 |
120 |
6 |
75 |
3.5 |
40 |
3 |
25 |
|
|
4X |
3.8 |
80 |
7 |
120 |
4.5 |
75 |
2.8 |
40 |
2 |
25 |
|
|
20X |
1X |
10 |
80 |
19 |
120 |
12 |
75 |
7 |
40 |
5.5 |
25 |
|
2X |
5 |
80 |
10 |
120 |
6 |
75 |
3.5 |
40 |
2.5 |
25 |
|
|
3X |
3.5 |
80 |
6.2 |
120 |
4 |
75 |
2.4 |
40 |
2 |
25 |
|
|
4X |
2.5 |
80 |
4.7 |
120 |
3 |
75 |
2 |
40 |
1.5 |
25 |
|
