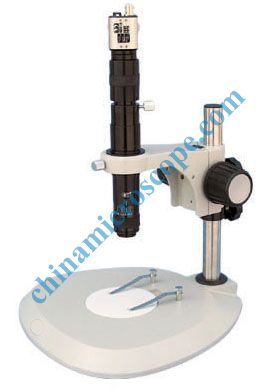

MIC TMM-745 miniature zoom monocular video microscope systems, are characterized by unique optical system, precise machinery appearance，sharp micro images. It can be used in electric equipments，semiconductor，LCD，LED etc for observing digital images，checking-up and survey. We can observe different objects with each LED illumination.
Main technology Specifications：
In focus and non-flash in zoom course.
The range of objective zoom magnification: 0.7X-4.5X
The measurement to match between the support and the main body：Φ35mm, add the connecting ring is Φ45mm0.5X、1X standard outfits CCD adapters to be selected
Adjusting LED ring illuminators and kinds of stands to be selected (CCD is selected to buy)
Standard specification：
|
TMM-745 |
|
|
Main body ZDM0745 |
● |
|
Stand SD1-D |
● |
Main optical data:
|
Auxiliary objective |
CCD adapter |
|||
|
0.5X |
1X |
|||
|
Main body(1X auxiliary objective) |
Optical magnification |
0.35X-2.25X |
0.7X-4.5X |
|
|
Field of video(mm) |
10.3X13.7-1.6X2.13 |
5.14X6.86-0.8X1.07 |
||
|
Working distance(mm) |
90 |
|||
|
0.5X |
Optical magnification |
0.175X-1.125X |
0.35X-2.25X |
|
|
Field of video(mm) |
20.57X27.4-3.2X4.27 |
10.29X13.7-1.6X2.13 |
||
|
Working distance(mm) |
175 |
|||
|
2X |
Optical magnification |
0.7X-4.5X |
1.4X-9X |
|
|
Field of video(mm) |
5.14X6.86-0.8X1.07 |
2.57X3.43-0.4X0.53 |
||
|
Working distance(mm) |
34 |
|||
|
Magnification range of zoom body 0.7X-4.5X |
||||
|
Item/Model |
ZDM0745 |
||
|
Optical magnification |
0.7X~4.5X |
||
|
|
0.7X |
2.0X |
4.5X |
|
NA |
0.028 |
0.066 |
0.073 |
|
Depth of field |
2.0mm |
0.30mm |
0.12mm |
|
Resolution |
12.0μm |
5.1μm |
4.6μm |
|
TV distortion |
0.10% |
0.05% |
0.02% |
|
Install dimension |
0Φ35 mm-0.1 |
||
|
The largest compatible camera |
1/2" |
||
|
CCD whorl mount |
1 inch 32 button |
||
The depth
of field is the value of parsing images if you use 1/2" CCD camera and
monitor of level 320 line.(Imaging surface concessional confusion
circumference: 40μm)
Resolution is the theory resolution of wavelength in 550nm.
