High Speed CCD Camera MC56
MC56 is a 5.0MP Microscope Camera with 2/3”CCD sensor, adopts new SpeedXT core technology,frame rate in real time can get to 13fps even with full resolution.It has advantage obviously for laboratory working and moving research specimen, users is easy to achieve fast and accurate focus and position fixed. The camera supports 180s exposure time to provide excellent image under low light surroundings, maximum color depth is 36bits.
Advantages
• Excellent CCD sensor to get high speed
& easy focus-SpeedXT core
• High resolution and brilliant imaging quality
• Perfect color reproduction
• Functional MIC TECH digital microscope imaging software
• Easy installation and use
• High cost-effective
Applications
Microscope imaging analysis, documents and date save for
• Material science, geology and mineralogy
• Life science and diagnose
• Quality control
• Pathology and cito-biology
• Forensic
MC56 CCD Camera Specification
|
Sensor |
2/3" CCD , color |
|
Resolution |
2580 x 1944, 5.0MP |
|
Active sensor size [Hx V] |
9.04 mm x7.86 mm |
|
Pixel size |
3.4 μm x 3.4 μm |
|
Analogue Gain |
1x ... 5x |
|
A/D conversion |
12 bit |
|
Frame rate |
13 fps [2580 x 1944] |
|
45 fps [640 x 484] |
|
|
Dynamic range |
61 dB |
|
Read out noise (typical) |
4 LSB (RMS) |
|
Exposure |
30 µs … 180 s |
|
White Balance |
One-push auto, manual |
|
Optical Interface |
C-Mount (0.63× TV pref.) |
|
PC Interface |
USB2.0 |
|
Software Functions |
Image preview, acquisition, video record, measuring, image processing |
|
Power data |
USB |
MC55 HIGH-PERFORMANCE DIGITAL COLOR IMAGING SYSTEM MC55
The mc55 is a 5 megapixel digital color camera that is ideal for fast and easy documentation and image analysis requirements when high-resolution detail is essential. The perfect color reproduction, fast live image preview and ease of use make the MC55 asound choice for a broad range of scientific applications including bright field, phase contrast, DIC, etc.
Key Features
Perfect color reproduction
High resolution (2580×1944,5.0Mpix)
Fast live image (9fps 1290 x 972，25fps 646 x 488)
Fit to any PC and microscope
Excellent price-performance ratio
MC55 Camera Specifications
|
Sensor |
Sony ICX282 , 2/3" CCD |
|
Resolution |
2580 x 1944, 12bit |
|
Pixels Size |
3.4μm X 3.4μm |
|
Frame Rate |
9 fps (1.290 x 972) |
|
25fps(646 x488) |
|
|
Binning |
1x … 8x |
|
Shutter |
Electronic shutter |
|
Dynamic range |
61 dB | 60 dB |
|
Read out noise (typical) |
4 LSB (RMS) |
|
Exposure |
400 µs … 180 s |
|
Operating Temp. |
-10°C ～-60°C |
|
White Balance |
One-push auto, manual |
|
Optical Interface |
Standard C-Mount 0.63X |
|
Digital Interface |
IEEE1394aFireWire |
|
Software Functions |
Image preview, acquisition, video record, measuring, image processing |
|
OS |
Windows 2000, XP SP2/SP3/Win7(32bit) |
PC configuration needs:
|
CPU |
Requirement |
Pentium 4,2.4 GHz or above, Pentium M,1.4 GHz or above |
|
Recommend |
Pentium D930,3.0 GHz, Dual core, Pentium M,2.6 GHz |
|
|
Pixels Size |
Requirement |
5GB or more |
|
Recommend |
20 GB |
|
|
EMS Memory |
Requirement |
512Mb or More |
|
Recommend |
1GB |
|
|
Operating System |
Microsoft windows 2000,XP SP2/SP3,Vista |
|
|
Data Interface |
USB2.0 |
|
|
Application Software |
MIC TECH Image processing Software |
|
MC50 MIC TECH CCD Microscope Camera with 5 megapixel
The MIC TECH MC50 is a 5.0 MP cooled color camera offering superior image quality and long exposure times, ideal for fluorescence /weak signal or any low light condition. Its high resolution, fast frame rates and excellent color fidelity all guarantee an efficient microscopy workday.
CCD chip
The 2,560 x 1,944-pixel Sony ICX282 CCD chip used in the MC50 offers 12 bits per color channel and can be used for variable exposure times between 1.6 ms and 17.9 min with the help of Peltier cooling. These features, along with the high sensitivity, color fidelity, superior contrast and extraordinary signal-to-noise ratio make the MC50 agreat universal high-resolution CCD color camera.
Interface
The MC50 makes a great addition to any microscopy system not only because of its great features, but also since it is easy to integrate using a standard C-mount adaptor to connect to the microscope and the high-speed data transfer and power capabilities of the USB2.0 interface.
Software
The camera can be fully operated using the MIC TECH Image processing Software, which offers a host of image processing, storage, preview and measurement functions.
Highlights:
High resolution & high quality image.
Real time preview and focusing.
Image refresh rate up to 40fps.
12-bit color depth for outstanding color fidelity.
USB2.0 design makes it easy to carry and install.
Peltier cooled to 10º C below ambient
Exposure times ranging from 1.6 ms to 17.9 min.
Automatic exposure and white balance. Manual mode for fine tuning
Standard C-MOUNT is widely used in connection between microscope and camera.
2/3”Sony ICX282 Progressive Scan Interline CCD, good quality guarantee.
MC50 Camera Specifications
|
Sensor |
2/3”Sony ICX282 Progressive Scan Interline CCD, Color |
|
Resolution |
2560 * 1944,，5.0MP |
|
Pixels Size |
3.4μm X 3.4μm |
|
Frame Rate |
10fps@1280X768 |
|
30fps@320X240 |
|
|
Binning |
2x3,3x3 or 4x4,color |
|
Shutter |
Electronic shutter |
|
S/N Ratio |
72dB |
|
Cooling Type |
Peltier cooling |
|
Exposure |
1.6 ms～17.9 min |
|
Scanning Mode |
Progressive scanning |
|
Operating Temp. |
-10°C ～-60°C |
|
White Balance |
One-push auto, manual |
|
Optical Interface |
Standard C-Mount |
|
Power Supply. |
USB |
|
Software Functions |
Image preview, acquisition, video record, measuring, image processing |
|
Data Interface |
USB2.0, 480Mbit/s |
|
OS |
Windows 2000，XP(32bit,64bit),win7, Vista; USB2.0 Port |
PC configuration needs:
|
CPU |
Requirement |
Pentium 4,2.4 GHz or above, Pentium M,1.4 GHz or above |
|
Recommend |
Pentium D930,3.0 GHz, Dual core, Pentium M,2.6 GHz |
|
|
Pixels Size |
Requirement |
5GB or more |
|
Recommend |
20 GB |
|
|
EMS Memory |
Requirement |
512Mb or More |
|
Recommend |
1GB |
|
|
Operating System |
Microsoft windows 2000,XP SP2/SP3,Vista |
|
|
Data Interface |
USB2.0 |
|
|
Application Software |
MIC TECH Image processing Software |
|
MC35 MIC TECH 3.0 MP Professional CCD Digital Camera
MC35 adopts Sony ICX252 CCD sensor and can be used for previewing. Its 3.3 MP enables it to capture images of both bright and dark field with high quality as well as fluorescence pictures. These functions above can be realized under the cooperation of MIC TECH imaging software. MC35 is widely applied to IHC, DIC, polarization and live cell observation.
3.3MP professional digital imaging
MC35 equipped with Sony ICX252 CCD sensor of high resolution up to 2080*1542 and can capture HD images. Even under low magnification, images remain clear after magnify in some area.
Color Rendition
Applied with Germany advanced technology, MC35 is better in color reproduction.
Smooth Real-time preview
Real-time preview and focusing refresh rate up to 25 fps and even higher when
select ROI.
High transmission speed
MC35 adopts standard C adapter and can easily connect to microscope. Speed even
higher when use1394A.
Comprehensive Software
MIC TECH microscope imaging software is customer friendly and easy to master.
MC35 Camera Specifications
|
Sensor |
Sony ICX252 AQ, 1/1.8"，3.0MP |
|
Resolution |
2080×1542 （12 bit monochrome ，36 bit color） |
|
Pixels Size |
3.45μm X 3.45μm |
|
Binning |
2x3,3x3, 4x4,5×5 |
|
Dynamic range |
61dB |
|
Readout |
4 LSB (RMS) |
|
Expose time |
500μs … 180s，auto expose |
|
Max frame rate |
6.7 fps (2080×1542），25fps(416×308) |
|
Data interface |
IEEE1394aFireWire |
|
Optical adapter |
Standard C adapter |
|
White Balance |
Auto WB/Manual WB |
|
Shutter control |
Continuous changeable rapid electric shutter |
|
Software function |
Displaying、snapping、DOF expanding 、videoing、measuring、reporting and other advanced functions |
MC15-MIC TECH CCD Microscope Camera with 1.4 megapixel
The MIC TECH MC15 camera, color or monochrome mode, offers all of the properties required to provide dependable gray scale value and fluorescence microscopy images: high resolution, extremely fine sensitivity, a cooled CCD chip, variable exposure times and full-preview function.
Easy installation and controls
The MC15 can be quickly and easily mounted onto all light microscopes with a
C-mount adaptor. Furthermore, it can be fully operated via MIC TECH Image
processing Software, which offers a host of image processing, storage, preview
and measurement functions.
Highlights:
1,360 x 1,024 pixel image resolution (1.4 Mega pixel)
1/2〞ICX205 Sony HAD CCD
4.6 micron pixels that provide high sensitivity and a large dynamic range
10-bit color depth for outstanding color fidelity.
Exposure times ranging from 6 ms to 650ms.
Peltier Cooling Mechanism, suppressing thermal background noise and obtain high-contrast images
Easy to use camera control interface with the standard C-Mount
Standard C-MOUNT is widely use in connection between microscope and camera.
USB2.0 Interface means smooth, live preview on the computer display
Supporting third-party software, you can choose the one as you like
MC15 Camera Specifications
|
Sensor |
1/2″ICX205 Sony HAD CCD |
Readout Noise |
12e- |
|
Resolution |
1360x1024 |
Data Interface |
USB2.0 (480 Mbit / sec) |
|
Pixels Size |
4.6μm x 4.6μm |
Power Supply |
USB |
|
Frame Rate |
15fps@ 1360*1024 |
Electricity |
≈200 mA |
|
Shutter |
Electronic |
White Balance |
Manual/Auto One-touch |
|
S/N Ratio |
66dB |
Exposure control |
6ms~650ms. Auto and Manual Exposure |
|
Scanning Mod |
Progressive scanning |
Spectral Response |
400nm~1000nm |
|
Operating Temp |
-10°C ~60°C |
OS |
Windows 2000, XP SP2/SP3, Vista; |
|
Software Functions |
Image preview, acquisition, video record, measuring, image processing |
||
MC20-MIC TECH High Sensitive CCD Camera
with 1.4 megapixel
Applying SONY Exview HAD CCD, the same CCD used in Olympus DP72, MC20 acquires
images of competitive quality with reasonable price. Its Peltier cooling
mechanism can significantly reduce the thermal noise caused by long time
exposure, suitable to observe hypo fluorescence, bright&dark field, DIC,
living cell, IHC, etc.. Standard C-Mount spectral interface makes it work with
any standard trinocular biological microscope, stereo microscope, metallurgical
microscope smoothly.
High sensitivity
The MC20 camera has a resolution of 1,360 x 1,024 pixels. Highly efficient readout technology coupled with Peltier-cooling of the CCD chip results in images of superior signal-to-noise ratio. Highly sensitive CCD elements are capable of detecting even the faintest signals. The electronic shutter offers variable exposure times ranging from 1/44000s to 115s.
High frame rates
The MC20 provides several resolutions using various read-out modes. With a video-like resolution it delivers 60 frames per second. At its full resolution –1,360 x 1,024 pixels – the MC20 still offers an impressive 15 frames per second.
Highlights
High resolution & high quality image.
Speed of preview15fps, resolution1360x1024.
USB2.0 design makes it easy to carry and install.
12-bit color depth for outstanding color fidelity.
Peltier cooled to 10º C below ambient
Exposure times ranging from 1/44000s to 115s.
Automatic exposure and white balance. Manual mode for fine tuning
Standard C-MOUNT is widely use in connection between microscope and camera.
2/3" SONY ICX285 CCD, good quality guarantee.
MC20 Camera Specifications
|
Sensor |
2/3"SONY ICX285 CCD |
Readout Noise |
8e- |
|
Resolution |
1360x1024,12bit |
Spectral Response |
400nm～1000nm |
|
Pixels Size |
6.45μm x6.45μm |
Data Interface |
USB2.0 (480 Mbit / sec) |
|
Frame Rate |
15fps@1360x1024 |
Power |
DC 5V ± 5% |
|
30fps@640*480 |
Electricity |
≈200 mA |
|
|
Binning |
2x2,4x4 |
Optical Interface |
Standard C-Mount |
|
Shutter |
Electronic shutter, continuous variable speed |
White Balance |
Manual/Auto One-push |
|
S/N Ratio |
72dB |
Exposure |
1/44000s~115s, Auto |
|
Scanning Mode |
Progressive scanning |
Software |
Display, capture, video, measure |
|
Operating Temp |
-10°C ~60°C |
Application |
Faint light, chemiluminescence, bioluminescence, flow cytometery, GFP,FISH,NIR ,FRET, bright or dark field, DIC, living cells, IHC and so on. |
|
Cooling |
Optional. Semiconductor cooling mode, 20 ° C below the environment temperature. |
||
MC21 Deep Cooled Monochrome/Color CCD Camera MC21
Professional-grade CCD microscope camera MC21 is our latest CCD microscope camera developed independently. It is a high resolution deep cooled CCD camera in high sensitivity. Effective pixels can reach 1360 (H) * 1024 (V). Since our MC21 puts the imported 2/3 " CCD sensor--SONY EXview HAD CCD into use, its imaging effect is comparable to Olympus DP71.
MC21 is equipped with high-speed USB2.0 interface to collect data, and does not need to configure a video conversion device. Easy installation with our drive and software can realize real-time preview, images capture and video record. You are not only able to basically process your microscope image, but also measure the length, angle, area of the shooting objects and print a graphic report.
MC21 is suitable for the following applications:
MC21 can be connected to any standard trinocular biological microscope, stereo microscope and metallurgical microscope to capture your microscopy images. Mainly used in weak fluorescence, chemiluminescence, bioluminescence, flow cytometry, bright and dark field observation, imaging observation of GFP, FISH, NIR, FRET, DIC, live cell, immunohistochemistry, etc.
Highlights:
2/3 “ CCD sensor--SONY EXview HAD CCD, 1.4MP
Deep cooled to -28C° at ambient temperature
High sensitivity suitable for weak fluorescent and infrared observation
USB2.0 data interface

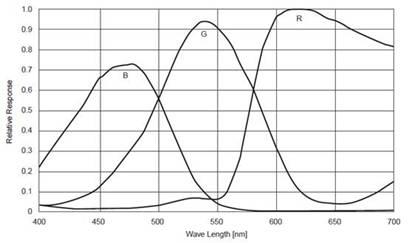

MC21(Color) spectrum response curve:
MC21(Monochrome) spectrum response curve:
MC21(Color) Technical Parameters
|
Model |
MC21 Color |
Camera type |
Color CCD Camera |
|
Sensor |
Sony |
Pixel size |
6.45um×6.45um |
|
Sensor model |
ICX285AQ |
Frame rate |
15fps@ 1360*1024 |
|
Sensor size |
2/3-inch (4:3) |
Shutter type |
Electronic shutter |
|
Effective resolution |
8.8mm (H) X6.6mm(V ) diagonal11mm |
Exposure control |
Automatic/manual |
|
Effective pixels |
1360H x 1024V（1.4MP） |
Dynamic range |
67dB |
|
A/D conversion(color depth) |
12bit |
Data connector |
USB2.0（480Mbit/sec） |
|
Scanning mode |
Progressive scanning |
Supporting connector |
SDK, WDM, TWAIN, direct show |
|
Spectrum response |
400nm~1200nm |
Camera connector |
Standard C-mount |
|
Readout noise |
4LSB |
Working temperature |
-30℃~+70℃ |
|
G sensitivity |
1300mv |
Working power(current) |
DC 5V±5% |
|
Cooling |
semiconductor refrigeration, -28C° at ambient temperature |
Operating system |
Windows2000、XP、Vista、Windows7 32bit/64bit |
|
Controller |
Image size, image acquiring, exposure time, GAMMA, contrast ratio, brightness, RGB gain, saturation |
Applications |
Weak fluorescent, chemiluminescence, bioluminescence, flow cytometry, bright and dark field observation, imaging of GFP, FISH, NIR, FRET, DIC, and live cell, IHC, infrared observation. |
MC21( monochrome) Technical Parameters
|
Model |
MC21 Monochrome |
Camera type |
Monochrome CCD Camera |
|
Sensor |
Sony |
Pixel size |
6.45um×6.45um |
|
Sensor model |
ICX285AL |
Frame rate |
15fps@ 1360*1024 |
|
Sensor size |
2/3-inch (4:3) |
Shutter type |
Electronic shutter |
|
Effective resolution |
8.8mm (H) X6.6mm(V ) diagonal11mm |
Exposure control |
Automatic/manual |
|
Effective pixels |
1360H x 1024V（1.4MP） |
Dynamic range |
72dB |
|
A/D conversion(color depth) |
12bit |
Data connector |
USB2.0（480Mbit/sec） |
|
Scanning mode |
Progressive scanning |
Supporting connector |
SDK, WDM, TWAIN, direct show |
|
Spectrum response |
400nm~1200nm |
Camera connector |
Standard C-mount |
|
Readout noise |
4LSB |
Working temperature |
-30℃~+70℃ |
|
G sensitivity |
1300mv |
Working power(current) |
DC 5V±5% |
|
Cooling |
semiconductor refrigeration, -28C° at ambient temperature |
Operating system |
Windows2000、XP、Vista、Windows7 32bit/64bit |
|
Controller |
Image size, image acquiring, exposure time, GAMMA, contrast ratio, brightness, RGB gain, saturation |
Applications |
Weak fluorescent, chemiluminescence, bioluminescence, flow cytometry, bright and dark field observation, imaging of GFP, FISH, NIR, FRET, DIC, and live cell, IHC, infrared observation. |
