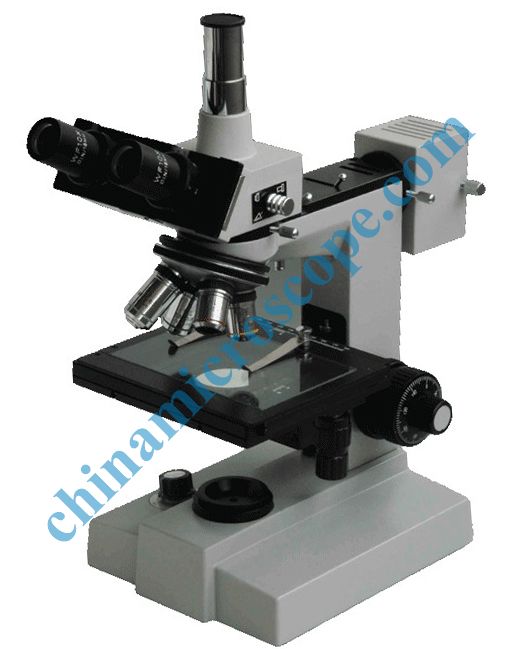

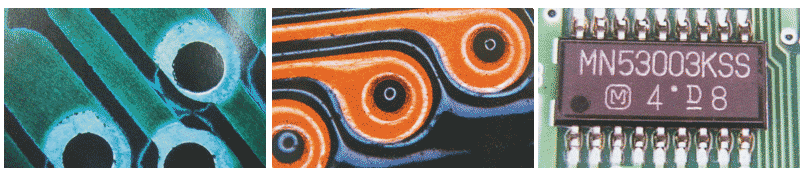

MIC-A2 Series are applied to electron、metallurgy、chemic、and instrument & watch industry for observing the transparent、semitransparent or opaque material. Such as metal ceramic、electron ceramic、IC module、PCB、LCD screen、pellicle、fibre、plating & coat and other nonmetal matter, as well as used in the field of medicine、agriculture & forestry、and the education department for viewing and analyzing.
|
Technical Specification |
Model |
|
|||||
|
MIC-A208 |
MIC-A209 |
MIC-A208D |
MIC-A209D |
|
|||
|
Viewing Body |
Binocular Body |
30°Incline, Interpupillary Adjustable Distance:55mm～75mm |
● |
|
● |
|
|
|
|
● |
|
● |
||||
|
Trinocular Body |
|
||||||
|
Eyepiece |
WF10×(Viewing
Field Diameter:ø18mm) |
● |
● |
● |
● |
|
|
|
Plain-field achromatic objective (without cover glass) 4×NA0.1、10×/NA0.25、40×(S)/NA0.65、63×(S)/NA0.85 |
● |
● |
● |
● |
|
||
|
Mechanical stage |
Size:160mm×130mm Moving range:76mm×50mmVernier:0.1mm |
|
|
● |
● |
|
|
|
Size:140mm×140mm Moving range:70mm×50mmVernier:0.1mm |
● |
● |
|
|
|
||
|
Nosepiece |
Four Holes Nosepiece Of Ball Bearing |
● |
● |
● |
● |
|
|
|
Focusing |
Coaxial
Coarse And Fine Focusing |
● |
● |
● |
● |
|
|
|
EPI-Illumination |
110V、220V/6V 20W halogen lamp with adjustable brightness, Filter(light blue、light green) |
● |
● |
● |
● |
|
|
|
Optional Accessories |
Unit、Color Micro-TV Unit、Digital Micro-Photo Unit、Metallurgical |
|
|||||
