XSP-200F |
|
|
Optical System |
Infinite Optical System |
● |
|
|
Viewing Head |
Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm |
● |
|
|
Seidentopf Trinocular Head Inclined at 30°，Interpupillary 48-75mm |
○ |
||
|
Eyepiece |
Ф30 Wide Field Eyepiece EW10×/22, Eyepiece Tube Diameter30mm |
● |
|
|
Wide Field Eyepiece EW15×/16 |
○ |
||
|
Wide Field Eyepiece EW20×/12 |
○ |
||
|
Nosepiece |
Backward Quintuple Nosepiece |
● |
|
|
Backward Quadruple Nosepiece |
○ |
||
|
Objective |
Infinite Plan Achromatic Objective 4×，10×，40×，100× |
● |
|
|
Infinite Plan Achromatic Objective 20×，60× |
○ |
||
|
Condenser |
Abbe Condenser NA1.25 with Aperture Diaphragm |
● |
|
|
Focusing System |
Coaxial Coarse
and Fine Adjustment, Fine Division0.002mm, Coarse Stroke37.7mmper Rotation, |
● |
|
|
Stage |
Double Layers Mechanical Stage 216×150mm, Moving Range 78×54mm |
● |
|
|
Illumination |
12V/20W Halogen Lamp, Brightness Adjustable |
● |
|
|
12V/30W Halogen Lamp, Brightness Adjustable |
○ |
||
|
LED Illumination |
○ |
||
|
Accessories |
Photo Attachment |
○ |
|
|
Video Adapter |
C Mount 0.4× |
○ |
|
|
C Mount 0.5× |
○ |
||
|
Polarization Attachment |
○ |
||
|
Phase Contrast Kit |
○ |
||
|
Dark Field Attachment |
Dark-field Condenser (Dry) |
○ |
|
|
Dark-field Condenser (Oil) |
○ |
||
|
Kohler Illumination |
○ |
||
|

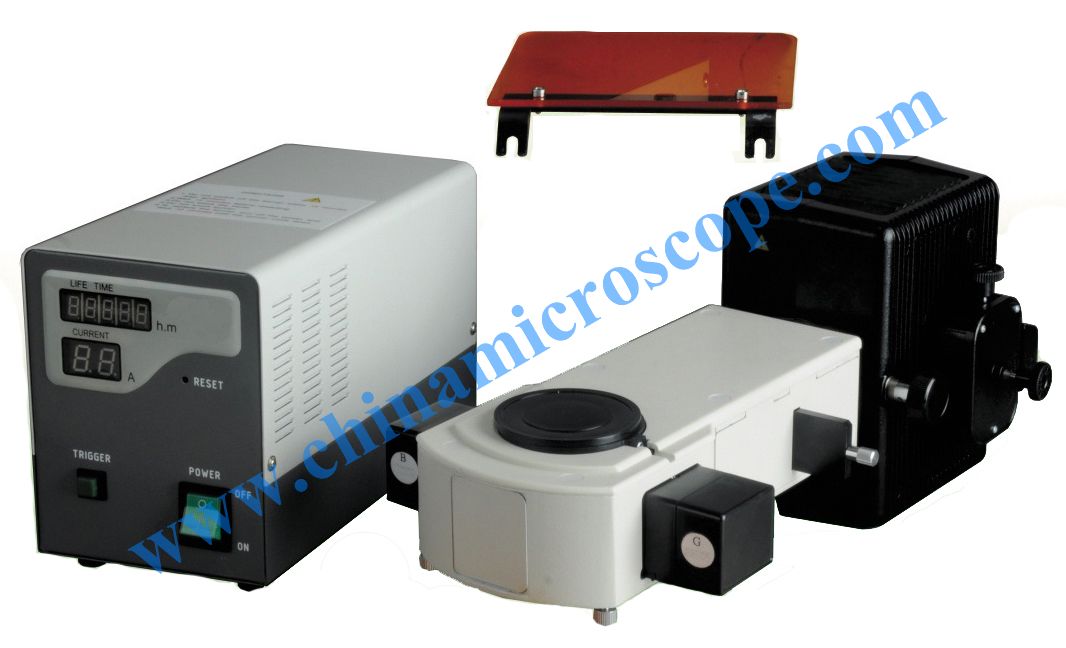

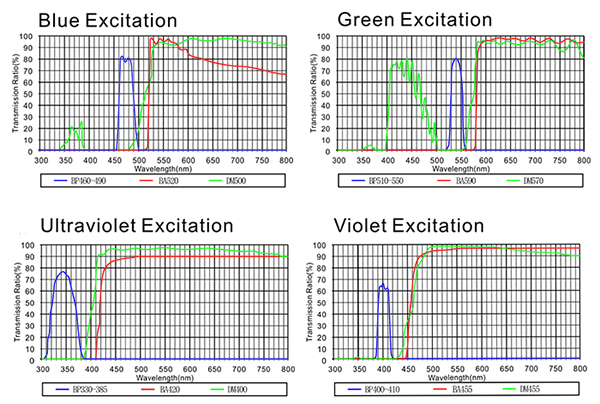

Epi-Fluorescent Attachment |
○ |
||
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to
make design modification and changes without notice.
