Standard configurations
|
Zoom ratio |
1：4 |
|
Objective zoom range |
1X-4X |
|

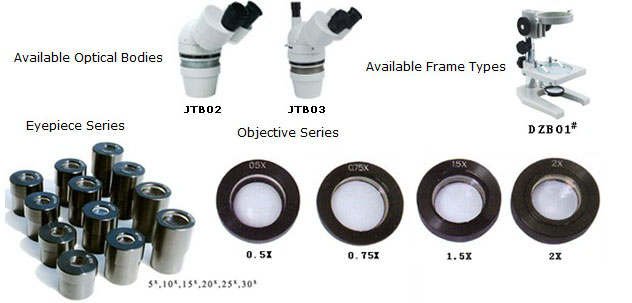

Eyepiece, Big Eyepiece |
10X eyepiece, 20Xeyepiece, 2X big eyepiece |
|
Working distance |
95mm |
|
Interpupillary distance adjustment range |
55mm-75mm |
|
Binocular head |
inclination of 45。 |
|
Diopter adjustment |
±5 diopter |
|
Optical body rotation |
360 |
|
Voltage input |
110V/60HZ or 220V/50HZ |
Technical data: M means magnification, V means visual field, W means Working distance(mm)
A means Auxiliary Objective
|
A |
Eyepiece |
W |
|||||||
|
WF10X |
WFl5X |
WF20X |
WF25X |
||||||
|
M |
V |
M |
V |
M |
V |
M |
V |
||
|
0.5X |
5X-20X |
40-10 |
7.5X-30X |
32-8 |
10X-40X |
26-6.6 |
12.5X-50X |
24-6 |
160 |
|
0.75X |
7.5X-30X |
26.7-6.7 |
11.3X-45X |
21.3-5.3 |
15X-60X |
17.3-4.4 |
18.8X-75X |
16-4 |
120 |
|
1X |
10X-40X |
20-5 |
15X-60X |
16-4 |
20X-80X |
13-3.3 |
25X-100X |
12-3 |
97 |
|
1.5X |
15X-60X |
13.3-3.3 |
22.5X-90X |
10.7-2.7 |
30X-120X |
8.7-2.2 |
37.5X-150X |
8-2 |
45 |
|
2X |
20X-80X |
10-2.5 |
30X-120X |
8-2 |
40X-160X |
6.5-1.6 |
50X-200X |
6-1.5 |
30 |
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
