The product is widely suitable to observe and analyze in experiment for medicine and hygiene 、farming and forestry of plant protection、animal husbandry and aquatic product、biological engineering、college and school etc。
Adjustable parfocal objective is the patent
product of our factory It can improve the parfocal character of the instrument.
The mechanical stage of no gap surface-plate is the patent product of our
factory. It can be cleaned easily.
|
Model |
MIA-802 |
MIA-803 |
MIA-808 |
MIA-809 |
||
|
Viewing Body |
Square 45°Incline Monocular Body |
● |
|
|
|
|
|
Square 45°Incline Dual Viewing Body |
|
● |
|
|
|
|
|
30°Incline Binocular Body Interpupillary Adjustable |
|
|
● |
|
|
|
|

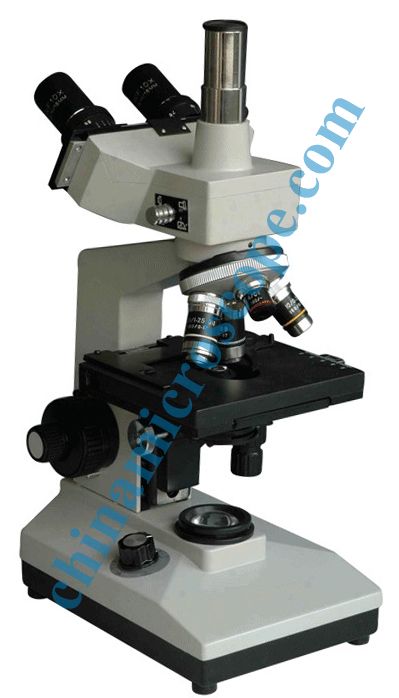

30°Incline Trinocular Body Interpupillary Adjustable Distance:55mm～75mm |
|
|
|
● |
|
|
|
Eyepiece |
WF10X (Viewing Field Diameter:ø18mm) |
|
||||
|
Objectives |
Adjustable Parfocal Achromatic Objective 4×/NA 0.1，10×/NA 0.25，40×(s)/NA 0.65，100×(s,oil)/NA.1.25 |
|
||||
|
Mechanical Stage |
Size:140mm×120mm, Moving Range:70mm×40mm, Vernier Division:0.1mm |
|
||||
|
Nosepiece |
Nosepiece of four holes revolving on ball |
|
||||
|
Condenser |
Abbe Condenser:N.A.1.25, Elevating Range:15mm |
|
||||
|
Focusing |
Coaxial
coarse/fine focusing adjustment. Focusing Range:20mm. Division of Fine Focus |
|
||||
|
Illumination |
6V 20W Halogen Lamp With Adjustable Brightness, Free Voltage 100V-240V.Filter (blue) |
|
||||
