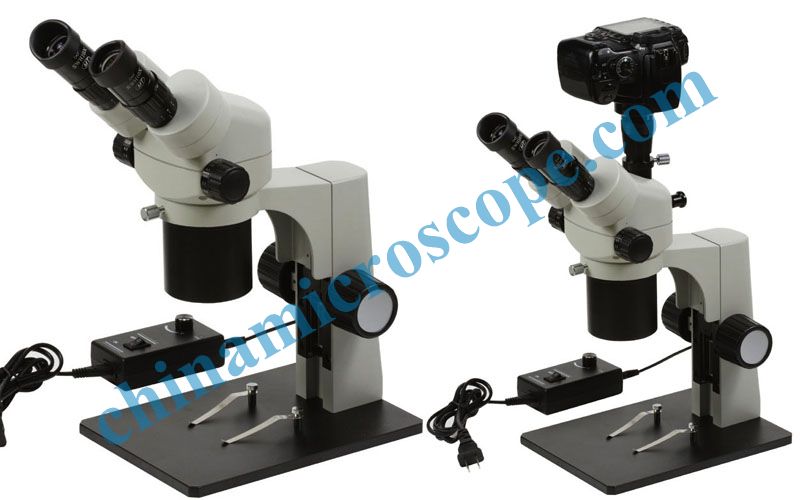

TM-65C series high definition coaxial illumination zoom stereo microscopes have two types, TM-65C (binocular) and TM-65CT (trinocular). Unique optical design, high-quality LED coaxial illumination, high contrast, and large depth of field. Applied for images observation inspection and measurement on semiconductor, LCD, LED and etc., Which needs coaxial illumination.
Main technology Specifications：
Total magnification 18X~65X(standard outfits), extend total magnification：195X
Zoom objective magnification 1.8X~6.5X, working distance 92mm.
With high eye point and wide field eyepiece SWH10X(Φ23mm)
Binocular/ Trinocular eyetubes inclined 45°and main body can be rotated 360°
The range of adjusting the diopter is ±6
Interpupillary distance adjustment range 52mm~76mm
The range of adjusting the focus is 50mm(the square post is 100mm), the diameter of the center working stage is Φ95mm
The measurement to match between the support and the main body is Φ76mm
The distance between from the post center to the main body center is 140mm
The size of the round post is Φ25mm
Illuminators : the low illuminator is the transmitted illumination of the fluorescent lamp(5W),the up illuminator is the reflected illumination of the halogen lamp(6V、10W)
Standard specification：
|
|
TM-65C |
TM-65CT |
|
Main body MZS1865C |
● |
|
|
Main body MZS1865TC |
|
● |
|
Eyepieces SWH10X |
●● |
●● |
|
Eye shields |
●● |
●● |
|
Stand SD12 |
● |
● |
Technical data ：
|
Zoom magnification |
W.D. |
Eyepieces |
|||||||
|
SWH10X |
SWF15X |
SWF20X |
SWF30X |
||||||
|
Total magnifi- |
Field of view (mm) |
Total magnifi- |
Field of view (mm) |
Total magnifi- |
Field of view (mm) |
Total magnifi- |
Field of view (mm) |
||
|
1.8X |
92 |
18X |
23 |
27X |
17 |
36X |
14 |
54X |
9 |
|
2X |
20X |
11.5 |
30X |
8.5 |
40X |
7 |
60X |
4.5 |
|
|
3X |
30X |
7.7 |
45X |
5.7 |
60X |
4.7 |
90X |
3 |
|
|
4X |
40X |
5.8 |
60X |
4.3 |
80X |
3.5 |
120X |
2.3 |
|
|
5X |
50X |
4.6 |
75X |
3.4 |
100X |
2.8 |
150X |
1.8 |
|
|
6X |
60X |
3.8 |
90X |
2.8 |
120X |
2.3 |
180X |
1.5 |
|
|
6.5X |
65X |
3.5 |
97.5X |
2.6 |
130X |
2.2 |
195X |
1.4 |
|
