MIC-T14 Specification: |
|
|
Sensor |
Sony ICX285AL |
|
Color/monochrome |
Monochrome |
|

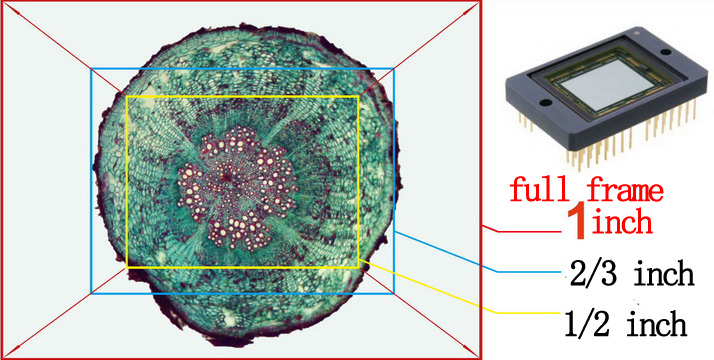

Sensor size |
2/3" |
|
Pixel size(μm) |
6.45×6.45 |
|
Effective pixels |
1.4MP |
|
Max.resolution (H×V) |
1360×1024 |
|
Scan mode |
Progressive |
|
Shutter |
Electronic shutter |
|
Frame rate |
13fps(1360 × 1024 Full Frame) |
|
|
15fps (680 × 520，2 × 2Bin) |
|
Color depth |
― |
|
A/D |
12 bit |
|
Exposure Control |
Manual/Auto |
|
Integration Time (S) |
0.0001-3600 |
|
White Balance |
Manual/Auto |
|
Dynamic range |
79dB |
|
Operating temperature |
0-60℃ |
|
Cooling |
Semiconductor refrieration |
|
Operating humidity |
45%-85% |
|
Storage temperature |
-20-70℃ |
|
Cooling temperature |
-10℃ |
|
Operating system |
Windows / Linux / Mac |
|
Optical port |
C-Mount |
|
Data interface |
USB2.0/480Mb/s |
|
MIC-T694 Specification: |
|
|
Sensor |
ICX694 |
|
Color/monochrome |
Monochrome/Color |
|
Sensor size |
1" |
|
Pixel size(μm) |
4.54μm x4.54μm |
|
Effective pixels |
6MP |
|
Max.resolution (H×V) |
2736Hx2200V |
|
Scan mode |
Progressive |
|
Shutter |
Electronic shutter |
|
Frame rate |
3.5fps (2728x2192) |
|
|
6.5fps (1620x1072 ) |
|
|
9fps(1080x720) |
|
Color depth |
― |
|
A/D |
12 bit |
|
Exposure Control |
Manual/Auto |
|
Exposure time |
1ms-160minute |
|
White Balance |
Manual/Auto |
|
Dynamic range |
75dB |
|
Operating temperature |
0-60℃ |
|
Cooling |
Semiconductor refrieration |
|
Operating humidity |
45%-85% |
|
Storage temperature |
-20-70℃ |
|
Cooling temperature |
-10℃ |
|
Operating system |
Windows / Linux / Mac |
|
Optical port |
C-Mount |
|
MIC-T50 5.0MP CCD camera |
|
|
CCD chip manufacturer |
Sony |
|
CCD chip model |
ICX282AQ |
|
CCD scan mode |
interline |
|
CCD size |
2/3 inch |
|
Pixels |
3.4micron x 3.4micron |
|
G sensitive |
280mV |
|
Resolution |
2580H x 1944V |
|
Filter |
R, G, B |
|
Lens interface |
standard C-mount |
|
Maximum fps |
3 fps (2580 x 1944)/10 fps (1280 x 932) |
|
Low-speed readout |
ok |
|
A/D conversion |
12 bit |
|
Exposure control |
automatic/manual |
|
Exposure time |
0.1ms-60minute |
|
Angle light control |
Yes |
|
White balance |
automatic/manual |
|
Parameter |
image size, bright, gain, exposure, RGB |
|
Data interface |
USB2.0/480Mb/s |
|
USB cable |
2.5 meter |
|
USB power supply |
USB2.0 |
|
Dimension |
130mm*111mm*54mm(HXBXT) |
|
Weight |
920g |
|
Operational temperature |
0-60℃ |
|
Operational humidity |
45-85% |
|
Storage temperature |
-20-70℃ |
|
MIC-TH6 CCD camera |
|||
|
|
MIC-TH6 |
MIC-TH6E |
MIC-TH6EII |
|
CCD chip manufacturer |
Sony |
Sony |
Sony |
|
CCD chip model |
ICX674ALG |
ICX674ALG |
ICX674ALG |
|
CCD scan mode |
Progress |
Progress |
Progress |
|
CCD size |
2/3 inch |
2/3 inch |
2/3 inch |
|
Pixels |
4.54μm x 4.54μm |
4.54μm x 4.54μm |
4.54μm x 4.54μm |
|
Resolution |
1920H x 1460V |
1920H x 1460V |
1920H x 1460V |
|
Filter |
monochrome |
monochrome |
monochrome |
|
Maximum fps |
7 fps (1912 x 1452) 17 fps (952*720 2x2Bin) |
7 fps (1912 x 1452) 17 fps (952*720 2x2Bin) |
7 fps (1912 x 1452) 17 fps (952*720 2x2Bin) |
|
Binning |
2*2/4*4 |
2*2/4*4 |
2*2/4*4 |
|
Readout noise |
5.5e- |
5.5e- |
5.5e- |
|
Quantum efficiency |
75%@600nm |
75%@600nm |
75%@600nm |
|
Full well capacity |
16000e- |
16000e- |
16000e- |
|
Dynamic range |
69.8dB |
69.8dB |
69.8dB |
|
Cool type |
- |
Peltier class I (0℃) |
Peltier class II (-20℃) |
|
Temperature control |
- |
- |
yes |
|
Dark noise |
1e/pixel/s |
0.07e/pixel/s |
0.01e/pixel/s |
|
Low-speed readout |
ok |
ok |
ok |
|
A/D conversion RGB |
12 bit |
12 bit |
12 bit |
|
Exposure control |
automatic/manual |
automatic/manual |
automatic/manual |
|
Exposure time |
1ms-20min |
1ms-160min |
1ms-160min |
|
White balance |
automatic/manual |
automatic/manual |
automatic/manual |
|
Parameter |
image size, bright, gain, exposure |
image size, bright, gain, exposure |
image size, bright, gain, exposure |
|
Data interface |
USB2.0/480Mb/s |
USB2.0/480Mb/s |
USB2.0/480Mb/s |
|
USB cable |
1.8 meter |
1.8 meter |
1.8 meter |
|
USB power supply |
USB2.0 |
USB2.0 |
USB2.0 |
|
Operational temperature |
0-60℃ |
0-60℃ |
0-60℃ |
|
Operational humidity |
45-85% |
45-85% |
45-85% |
|
Storage temperature |
-20-70℃ |
-20-70℃ |
-20-70℃ |
