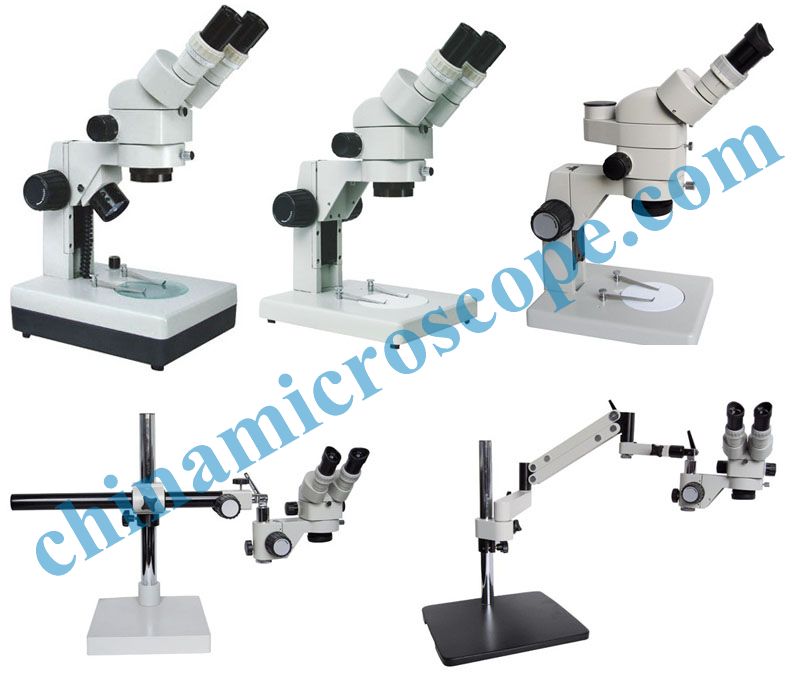

The TGG-PD is a high performance Multi-magnification optical instrument featuring five distinct magnifications and great flexibility in configuration choices. Its modular design allows for the attachment of a variety of imaging adapters, including CCD, 35mm and many professional digital still and digital video cameras. It employs the optical body as well as the imaging adapters of the TGG adapter system. It features the latest design in parallel optics and a common objective lens, improving the depth of field, optical clarity, contrast, and dimensional quality of the specimen under examination. Its long working distance, excellent contrast, and super wide field of view characterize this instrument as superior to its competitors. It also features a 48mm to 75mm interpupillary adjustment; the largest range available in the industry. Mechanically the XPD-510 also excels, with a large comfortable base, precise and resilient ball bearing mechanical focusing, and superior ergonomics. These microscopes are used extensively world wide in medical research and health care, biology and botany research, agriculture, as well as electronic component manufacturing. They are also particularly well suited in the inspection and production of LC Polymer films and glass substrates, LCD printing pastes, LED production, fabric and fiber evaluation, electronics assembly, printed circuit board manufacturing, medical device inspection and all types of quality control environments.

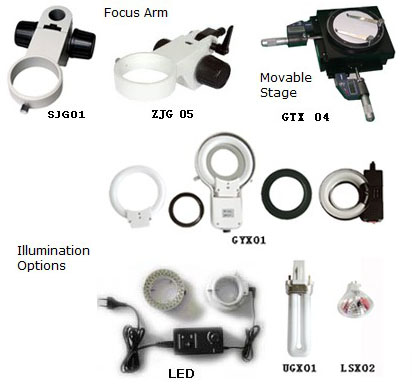

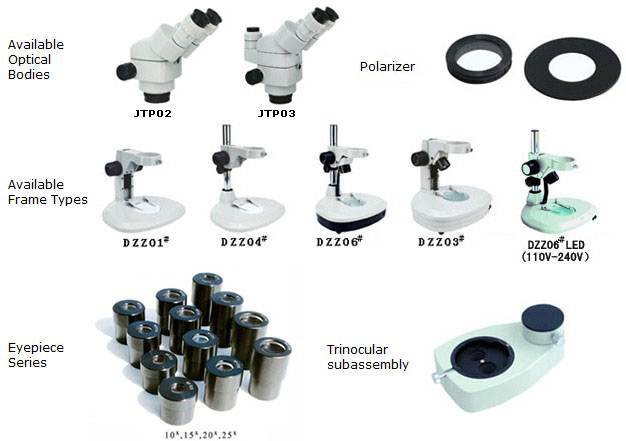

Standard configurations
|
Objective zoom range |
0.5, 1X, 1.75X,3X, 5.5X |
|
Eyepiece |
SWF10X/23mm |
|
Working distance |
95mm |
|
Interpupillary distance adjustment range |
48mm-75mm |
|
Binocular head |
inclination of 45。 |
|
Diopter adjustment |
±5 diopter |
|
Optical Body Rotation。 |
360。 |
|
Voltage input |
110V/60HZ or 220V/50HZ |
|
Top halogen lamp |
6V15W adjustable brightness |
|
Bottom fluorescent lamp |
5W |
Technical data: M means magnification, V means visual field, W means Working distance(mm)

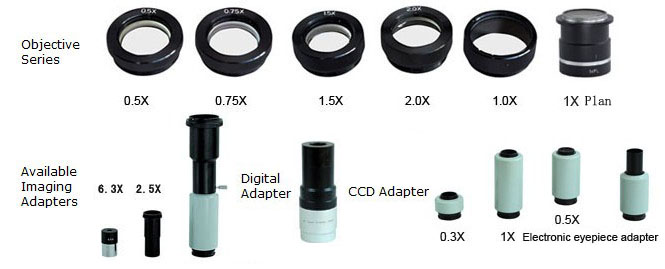

A means Auxiliary Objective
|
A |
Eyepiece |
W |
|||||||
|
SXF10X |
WFl5X |
WF20X |
WF25X |
||||||
|
M |
V |
M |
V |
M |
V |
M |
V |
||
|
0.3X |
|
|
|
|
|
|
|
|
|
|
0.5X |
2.8X 5X 8.8X 15X 27.5X |
93.6 46 26.3 15.3 8.4 |
4.1X 7.5X 13.1X 22.5X 41.3X |
58.2 32 18.3 10.7 5.8 |
55X 10X 17.5X 30X 55X |
47.3 26 14.9 8.7 4.7 |
6.9X 12.5X 21.9X 37.5X 68.8X |
43.6 24 13.7 8 4.4 |
200 |
|
1X |
5.5X 10X 17.5X 30X 55X |
41.8 23 13.1 7.7 4.2 |
8.3X 15X 26.3X 45X 82.5X |
29.1 16 9.1 5.3 2.9 |
11X 20X 35X 60X 110X |
23.6 13 7.4 4.3 2.4 |
13.8X 25X 43.8X 75X 137.5X |
21.8 12 6.9 4 2.2 |
95 |
|
1.5X |
8.3X 15X 26.3X 45X 82.5X |
27.9 15.3 8.8 5.1 2.9 |
12.4X 22.5X 39.4X 67.5X 123.8X |
19.4 10.7 6.1 3.6 1.9 |
16.5X 30X 52.5X 90X 165X |
15.8 8.7 5 2.9 1.8 |
20.6X 37.5X 65.6X 112.5X 206.3X |
14.5 8 4.6 2.7 1.5 |
55 |
|
2X |
11X 20X 35X 60X 110X |
20.9 11.5 6.6 3.8 2.1 |
16.5X 30X 52.5X 90X 165X |
14.5 8 4.6 2.7 1.5 |
22X 40X 70X 120X 220X |
11.8 6.5 3.7 2.2 1.2 |
27.5X 50X 87.5X 150X 275X |
10.9 6 3.4 2 1.1 |
35 |
