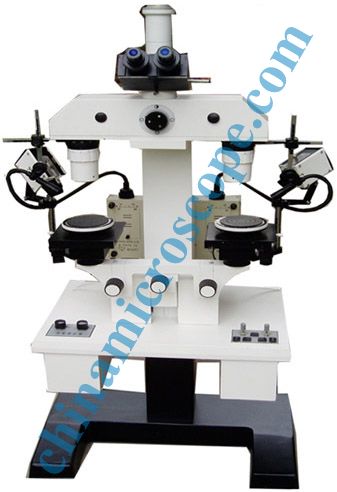

Comparison microscope MIC-W8Ais our company newly developed Leica DMC style import substation microscope, which helps users observe though eyepieces to view images of left and right objects, thus make macro and micro comparison on two or more objects, to achieve the purpose of identification, the main features of it is:
|
1. Zooming range wide, objective lens continuously variable from 0.9X to 5.9X, total magnification up to 118X; |
|
2. Visual synchronizes with video, visual and photographing is separated, without interfering; |
|
3. With binocular observation system, users can reduce eye fatigue; |
|
4. Camera system can be equipped with various models of digital cameras; |
|
5. Simultaneously equipped with 12V50W air-blast strong light source, light source brightness high, good cooling effect, easy to use and is reliable; and 24V150W optic fiber illumination and cold light source; |
|
6. Left and right two objective stages can achieve left and right linkage scan at the same time; |
|
7. With magnification correction mechanism, with rate correction plate, can make magnification of left and right system strictly identical; |
|
8. Can achieve left and right single view field, cutting view field, overlapping view field observation; |
|
9. Left and right working tables up and down moving realizing electric machinery transmission, operation easy and quick; |
|
10. Configuring two working tables, expanding effective working range of the instrument, in which fixed working table also sets a transmission illumination, detachable rotary working table, working stage can rotate 360°, when needs making document retrieval, loosen screws and remove rotary working table; |
|
11. View field cutting ridges width and consistency are adjustable. |
|
Application: Therefore, comparison microscope MIC-W8Ais an ideal tool for public security to make forensic check (on comparing bullets, cartridge shells, tool marks, fingerprints, seals, texts, coins, printings etc...), which is also widely used in electronics, biology, printing, coins making and other industrial quality controls. Applied to photographing, video recording and transmission illumination |
Accessories:
|
Binocular head |
10X eyepieces |
|
20X eyepieces |
Magnification corrector plates |
|
Red and green color filters |
12V50W bulb |
|
Bullet holder |
Binocular cold light source (150WX2) |
|
Photographing tube |
Cable |
|
Video cable |
0.5X low magnification objective lens |
|
2A fuse tubes |
Dust remover pen |
|
Desiccant |
Lens cleaning paper |
