Bertrand Lens |
Compensation Unit |
Centering Nosepiece |
|
||

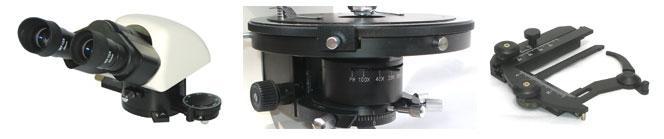

Combined Binocular |
Analyzer |
Polarizing Attached Stage |
OP-2 Series Polarizing Microscope Outfits
Items |
Specification |
OP-2 |
Eyepiece |
WF 10X-18mm |
● |
WF 10X-18 mm(Reticule0.1mm) |
● |
|
Non-stress |
4× |
● |
10× |
● |
|
20× (S) |
● |
|
40× (S) |
● |
|
60× (S) |
● |
|
Seidentopf Binocular Head |
Inclined 30°, Rotatable 360°, |
● |
Trinocular Head |
Inclined 30°, Rotatable 360°, |
○ |
Nosepiece |
Quintuple |
● |
Polarizing Unit |
Rotatable 360°(Module Type, Can Be Locked) |
● |
Bertrand Lens |
Inbuilt, Center Adjustable |
● |

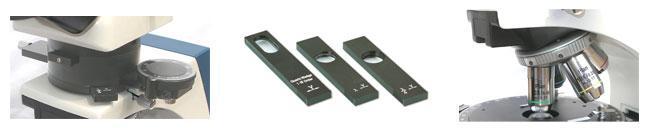

λSlip |
First Class Red |
● |
1/4λSlip |
|
● |
Quartz Wedge |
(Ⅰ-Ⅳ Class) |
● |
Revolving Round Stage |
Rotatable 360°, Center Adjustable, Division 1°, Vernier division6’ |
● |
Polarizing Attached Mechanical Stage |
○ |
|
Condenser |
Abbe N.A. 1.25 Non-stress |
● |
Polarizing Unit with Scale |
Rotatable 360°, |
● |
Kohler Illumination |
6V/20W Halogen Lamp |
● |
6V/30W Halogen Lamp |
○ |
|
2 A Fuse |
Spare: 1 pc |
● |
Filter |
Blue, |
● |
Amber |
○ |
|
Green |
○ |
|
Neutral |
○ |
|
C-mount |
0.57×(Focus Adjustable), 1× |
○ |
Adapter for Digital Camera |
○ |
|
Reflecting Polarizing Unit |
Halogen Lamp House 12V/50W |
● |
Power House |
● |
|
Diaphragm Choosing Slide |
● |
|
Polarizer Choosing Slide |
● |
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have
reserved the right to
make design modification and changes without notice.
Packing Size:750mmX360mmX450mm
Gross Weight: 16 kgs Net
Weight: 12.5 kgs
