Information
1.Sharp
stereo erect image over a wide field of view.
2.45° inclined and 360° rotational binocular head with locked-in eyepiece. The
left ocular-tube with diopter adjustment ±5dp,The interpupillary distance is
between 55-75mm
3.Zoom objective 1x-4x

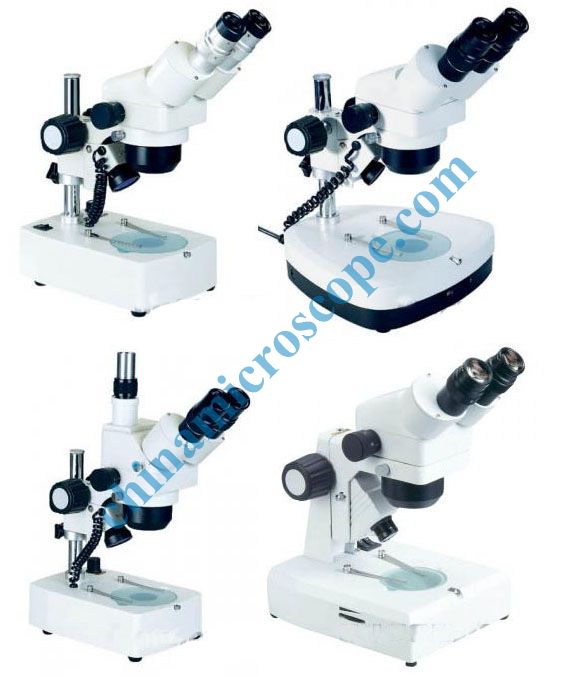

4.TX-E series supplied with pillar style stand, TX-EW series supplied with arm
curved style stand.TX-3E series trinocular head.
5.Electric apparatus has CE approval
6.Power supply 110V/60Hz or 220V/50Hz
7.Each set packed in Styrofoam and in an inner box. Three sets in one carton
8.A wide range of optional accessories.
Optional accessories:
1.Eyepiece WH5x(Φ22mm),WF10x(Φ23mm)WF15x(Φ13mm),WF20x(Φ10mm)
2.Auxiliary objective 0.5x,0.75x,1.5x,2x
3.Figure eyepiece: VD-TV,VD-PC
4.Darkfield stage,Φ95mm
5.White/black working plate,Φ95mm
6.Fluorescent bulb 5W
7.Halogen bulb 12V/10W/LED
8.Ring fluorescent lighting 8W & 10W
9.Wooden cabinet with lock and key /Aluminum case
|
Model |
Standard Eyepiece |
Objective |
Viewing Head |
Up & Down Mechanism |
Base/Working Stage |
|
TX-E |
SWF10× |
ZOOM1×-4× |
Binocular |
Pillar style |
φ95 Frosted glass |
|
TX-E-W |
SWF10× |
ZOOM1×-4× |
Binocular |
Arm curved style |
φ95 Frosted glass |
|
TX-3E |
SWF10× |
ZOOM1×-4× |
Trinocular |
Pillar style |
φ95 Frosted glass |
|
TX-3E-W |
SWF10× |
ZOOM1×-4× |
Binocular |
Arm curved style |
φ95 Frosted glass |
|
TX-E-C1 |
SWF10× |
ZOOM1×-4× |
Binocular |
Pillar style |
φ95 White/Black Working stage |
|
TX-E-C1 |
SWF10× |
ZOOM1×-4× |
Binocular |
Pillar style |
φ95 Frosted glass |
|
TX-G |
SWF10× |
ZOOM0.75×-3.6× |
Binocular |
Pillar style |
φ95 Frosted glass |
|
TX-G-W |
SWF10× |
ZOOM0.75×-3.6× |
Binocular |
Arm curved style |
φ95 Frosted glass |
|
TX-G-C2 |
SWF10× |
ZOOM0.75×-3.6× |
Binocular |
Pillar style |
φ95 Frosted glass |
|
Optional
accessories ：0.5×、0.75×、1.5x、2× Auxiliary Objective； |
|||||
Optical Data: F means Field of View (mm) W means Working Distance(mm)
|
Model |
Eyepiece |
Standard Eyepiece |
Auxiliary Eyepiece |
|||||||||
|
0.5× |
0.75× |
1.5× |
2.0× |
|||||||||
|
Objective |
F |
W |
F |
W |
F |
W |
F |
W |
F |
W |
||
|
TX-E |
WF5× |
1-4× |
20-5 |
91 |
40-11 |
170 |
25-6.5 |
100 |
13-3.5 |
42 |
10-2.5 |
28 |
|
SWF10× |
1-4× |
23-5.5 |
91 |
52-12 |
170 |
30-7 |
100 |
15-4.8 |
42 |
11-5.3 |
28 |
|
|
WF15× |
1-4× |
15.5-4 |
91 |
36-8.5 |
170 |
21-5 |
100 |
10.5-2.5 |
42 |
8-2 |
28 |
|
|
WF20× |
1-4× |
10.5-3 |
91 |
25-5.8 |
170 |
14-3.5 |
100 |
7-1.8 |
42 |
5.5-1.5 |
28 |
|
|
TX-G |
WF5× |
0.75-3.6× |
26-6 |
86 |
63-13 |
178 |
32-7 |
96 |
16-4 |
42.5 |
12.5-3 |
25.5 |
|
HWF10× |
0.75-3.6× |
28-6 |
86 |
43-14 |
178 |
35-8 |
96 |
18-4 |
42.5 |
14-3 |
25.5 |
|
|
WF15× |
0.75-3.6× |
19-4.5 |
86 |
43-9.5 |
178 |
24-5.5 |
96 |
12-3 |
42.5 |
9.5-2 |
25.5 |
|
|
WF20× |
0.75-3.6× |
12.5-3 |
86 |
28-6 |
178 |
16-3.5 |
96 |
8-2 |
42.5 |
6-1.5 |
25.5 |
|
