TOT-2 Series technical Specification: |
|
Zoom ratio 1∶7.6 |
|
Magnification 6.6×～50× |
|
Objective zoom range0.66×～5× |
|
10×Eyepiece 10×/Φ23mm high point, diopter adjustable |
|
Standard working distance110mm |
|
Interpupillary distance54mm～76mm |
|
Observing tube Binocular/Trinocular/built-in digital camera 45°inclined, 360°rotatable. |
|
Up illumination 3W LED （optional :12V/15W halogen） |
|
Down illumination 3W LED （optional :12V/15W halogen） |
|
Optional eyepiece 20×/Φ13mm（focus adjustable） |
|
25×/Φ11mm（focus adjustable） Additional objective 0.5× W.D. 189mm, 0.75× W.D. 122mm, 2×W.D. 36mm |
|
TOT-2 DM320/500 Digital Stereo Microscope Specifications |
|
Dustproof, moisture-proof, against disassemble, built-in digital chip, integrated design. |
|
Light distribution 20:80, eyepiece observation synchronized with the imaging from digital camera. |
|
Built in 3MP/5MP digital camera, 1/2'' CMOS colorful sequential scanning. |
|
USB2.0 connection, without external power supply. |
|
Available for WINDOWS 2000 /XP/ 7 /Vista system. |
TOT-2 Series Objective，Eyepiece Parameter List:
|
Objectives |
0.5X |
0.75X |
1X(built-in) |
2X |
|
|
W.D |
189mm |
122mm |
110mm |
36mm |
|
|
10XEyepiece/ φ23mm |
Magnification |
3.3-25 |
5.0-37.5 |
6.6-50 |
13.2-100 |
|
Field dia. (mm) |
62.86～9.57 |
41.90～6.38 |
31.43～4.78 |
15.71～2.39 |
|
|
20XEyepiece/ φ13mm |
Magnification |
7～46 |
10.5～69 |
14～92 |
28～184 |
|
Field dia. (mm) |
37.14～5.65 |
24.76～3.77 |
18.57～2.83 |
9.29～1.41 |
|
|
25XEyepiece / φ11mm |
Magnification |
8.8～57.5 |
13.1～86.3 |
17.5～115 |
35～230 |
|
Field dia. (mm) |
31.43～4.78 |
20.95～3.19 |
15.71～2.39 |
7.86～1.20 |
|
TOT-2 Series Zoom Stereo Microscope Outfits:
|
Items |
TOT-2BP |
TOT-2B2L |
TOT-2TP |
TOT-2T2L |
TOT-2DM320 |
|
|
Main Body (1X objective built in) |
Binocular |
● |
● |
|
|
|
|
Trinocular |
|
|
● |
● |
|
|
|
Digital |
|
|
|
|
● |
|
|
Eyepiece 10×/23㎜ |
●● |
●● |
●● |
●● |
●● |
|
|
Focusing unit |
● |
● |
● |
● |
● |
|
|
No light |
● |
|
● |
|
○ |
|
|
Reflecting 3W LED |
|
● |
|
● |
● |
|
|
Transmitting 3W LED |
|
● |
|
● |
● |
|
|
Black & White Plate |
● |
● |
● |
● |
● |
|
|
Glass Plate |
|
● |
|
● |
● |
|
|
Arm stand |
● |
● |
● |
● |
● |
|
|
Pillar stand |
○ |
○ |
○ |
○ |
○ |
|
|
Reflector base |
○ |
○ |
○ |
○ |
○ |
|
|
Rectangular big base （330 X300mm） |
○ |
○ |
○ |
○ |
○ |
|
|
Stage Micrometer |
○ |
○ |
○ |
○ |
● |
|
|

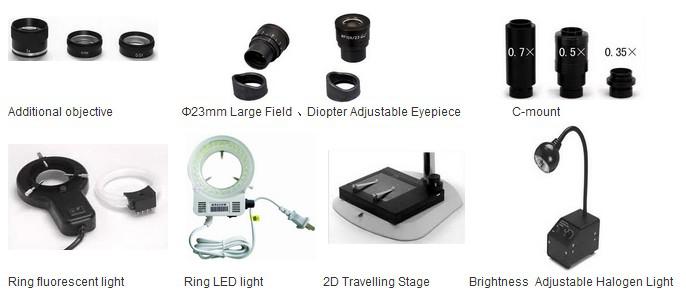

0.35X /0.5X /0.7X C-mount |
|
|
○ |
○ |
|
|
|
Adaptor for digital photo camera |
|
|
○ |
○ |
|
|
|
0.5X/ 0.75X/ 2XObjective |
○ |
○ |
○ |
○ |
○ |
|
|
20X/ 25X Eyepiece |
○ |
○ |
○ |
○ |
○ |
|
|
Two dimensional travelling table |
○ |
○ |
○ |
○ |
○ |
|
|
Single pole Universal Stand |
○ |
○ |
○ |
○ |
○ |
|
|
Double-pole Universal Stand |
○ |
○ |
○ |
○ |
○ |
|
|
|
||||||
|
|
||||||
|
||||||
