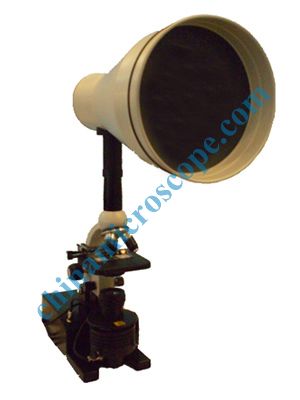

XJC-2 project microscope is one multi-functional optical instrument which can be applied both on the observation of ordinary transparent sample as biological microscope and be projected to the projection wall for further teaching and research. And it can also be used to depict the observing object. It is an ideal instrument in teaching, research, and biological cell research field
Magnification, Nine inches projection wall magnification,Depiction Magnification
|
Eyepiece |
Objective |
View Magnification |
Nine inches projection wall magnification (Distance:225mm) |
Depiction Magnification (Distance :175mm) |
|
10X |
4X |
40X |
60 |
45 |
|
|
10X |
100X |
150 |
117 |
|
|
40X |
400X |
600 |
450 |
Projection wall maganification
|
Eyepiece |
Objective |
Distance 4m |
Distance 6m |
Distance 8m |
|
Projection area600mm |
Projection area 950mm |
Projection area 1200mm |
||
|
2X |
4X |
185 |
270 |
370 |
|
10X |
555 |
740 |
1000 |
|
|
40X |
1800 |
2800 |
4000 |
|
|
Eyepiece |
Objective |
Distance 2m |
Distance 4m |
|
|
Projection area 1250mm |
Projection area2350mm |
|
||
|
10X |
4X |
350 |
650 |
|
|
10X |
400 |
1600 |
|
|
|
40X |
3600 |
6400 |
|
Nosepiece: Three-hole nosepiece(build out) Fixed stage with moving ruler
Coarse focus range Precision: 0.002mm
Illumination：Power supply：24V/100W changeable switch and power supply
Input：220V/50Hz or 110V/60Hz (adaptable through the voltage switch behind the chassis)
Tungsten lamp：24V/100W Fuse tube：3A φ5X20
