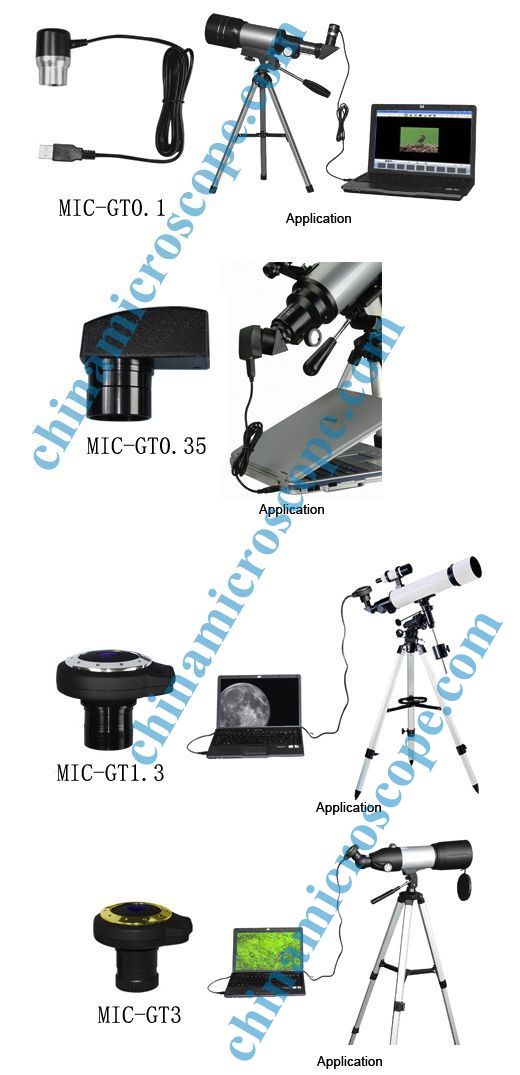

0.1M pixel cmos digital video eyepiece
To equip 0.10 MP sensor and display image on screen at resolution of 320*240, no squinting with one eye on ocular eyepiece, just enjoy pictures and process them with software.
Feature
|
Power supply |
USB port |
|
Size of ocular tube |
24.5mm |
|
Connection |
Ocular tube |
|
Snap |
Software controlling |
|
Correct imaging function |
Software controlling |
|
Backlighting reduce |
Software controlling |
|
Function of software |
Image file management：set up, open up, save, lead in image file Image capture: switch, setting, shoot,, full screen view. Image edit: picture turn, zoom, cut, modify, email, print |
|
Resolution of display |
320*240 |
|
Resolution of picture |
320*240 |
|
Resolution of video |
320*240 |
|
USB cable length |
1.5 m |
|
weight of device |
0.11 kg |
Specifications
|
Sensor Parameter |
1/7" 0.1MP CMOS |
|
Resolution |
320*240 |
|
USB Port |
USB 1.1 |
|
Frame Rate |
24 fps for 320x240 |
|
Preview Model |
320*240 |
|
Pixel Size |
5.6μm *5.6μm |
|
Sentivity |
190 level/lux-sec (550nm) |
|
Dynamixc Range |
31.6 db (Max) |
|
White Balance |
AUTO |
|
O/P compatibility |
Win2k,WinXP,Vista |
|
Packing |
1. Single box: Weight:0.2kg,Measurement: 15.5*13.5*7.0 ㎝³; 2. One carton of 50 PCS: Weight:11.0 kg, Measurement: 65.0*33.5*36.5㎝³; |
0.35M pixel cmos digital video eyepiece
To equip 0.35 MP sensor and offer 30 frames at resolution of 640*480, with which is very suitable to view or shoot movable object both in sky and at land, the stream images is smooth.
Feature
|
Power supply |
USB port |
|
Size of ocular tube |
31.75mm、24.5mm |
|
Connection |
Ocular tube |
|
Snap |
Software controlling |
|
Correct imaging function |
Software controlling |
|
Backlighting reduce |
Software controlling |
|
Function of software |
Image file management：set up, open up, save, lead in image file Image capture: switch, setting, shoot, full screen view. Image edit: picture turn, zoom, cut, modify, email, print. |
|
Resolution of display |
640*480 |
|
Resolution of picture |
640*480 |
|
Resolution of vedio |
640*480 |
|
USB cable length |
1.5m（or8mif you need） |
|
Wight of device |
0.051kg |
Specifications
|
Sensor Parameter |
1/4" 0.35MP CMOS |
|
Resolution |
640*480 |
|
USB Port |
USB 2.0 |
|
Frame Rate |
30 fps for 640*480 |
|
Preview Model |
640*480, 320*240 |
|
Pixel Size |
5.6μm *5.6μm |
|
Sentivity |
1.9 V/lux-sec |
|
Color Filter |
RGB Bayer Pattern |
|
Wihte Balance |
AUTO |
|
USB Cable Length |
1.5m |
|
O/P compatibility |
Win2k,WinXP,Vista |
|
Packing |
1. Single box:weight:0.225kg,Measurement:15.5*13.5*7.0㎝³; 2. One carton of 50 PCS: Weight:13.0 kg, Measurement: 69.0*33.5*36.5㎝³; |
1.3M pixel cmos digital video eyepiece
To equip 1.3 MP CMOS sensor and offer full screen view of 1280*1024, high quality chip and IC board insure sharp images and true color images. It is the first choice for landscape view and shoot.
Feature
|
Power supply |
USB port |
|
Size of ocular tube |
31.75mm、24.5mm |
|
Connection |
Ocular tube |
|
Snap |
Software controlling |
|
Correct imaging function |
Software controlling |
|
Backlighting reduce |
Software controlling |
|
Function of software |
Image file management：set up, open up, save, lead in image file Image capture: switch, setting, shoot, full screen view. Image edit: picture turn, zoom, cut, modify, email, print. |
|
Resolution of display |
1280*1024 |
|
Resolution of picture |
1280*1024 |
|
Resolution of vedio |
1280*1024 |
|
USB cable length |
1.5m（or8mif you need） |
|
Wight of device |
0.071kg |
Specifications
|
Sensor Parameter |
1/3" 1.3MP CMOS |
|
Resolution |
1280*1024 |
|
USB port |
USB 2.0 |
|
Frame Rate |
16 fps @ 1280*1024 |
|
Preview Model |
1280*1024, 640*480, 320*240 |
|
Pixel Size |
3.6μm *3.6μm |
|
Sensitivity |
1.0 V/lux-sec@550nm |
|
Spectrum response |
400nm-1000nm |
|
hutter Type |
ERS(electronic rolling shutter) |
|
White Balance |
AUTO |
|
The Length of USB |
1.5m |
|
O/P compatibility |
Win2k,WinXP,Vista |
|
Packing |
1. Single box:Weight:0.275 kg,Measurement:19.0*13.5*8.6㎝³; 2.One carton of 50 PCS:Weight:15.0kg,Measurement:68.0*39.0*45.0㎝³; |
3M pixel cmos digital video eyepiece
To equip 3.0 MP CMOS chip and offer high resolution pictures of far landscape when fit on wide field telescope. High quality chip and IC board insure to capture sharp images and true color images.
Feature
|
Power supply |
USB port |
|
Size of ocular tube |
31.75mm、24.50mm |
|
Connection |
Ocular tube |
|
Snap |
Software controlling |
|
Correct imaging function |
Software controlling |
|
Backlighting reduce |
Software controlling |
|
Function of software |
Image file management：set up, open up, save, lead in image file Image capture: switch, setting, shoot, full screen view. Image edit: picture turn, zoom, cut, modify, email, print. |
|
Resolution of display |
2048*1536 |
|
Resolution of picture |
2048*1536 |
|
Resolution of vedio |
2048*1536 |
|
USB cable length |
1.5m（or8mif you need） |
|
Wight of device |
0.075kg |
Specifications
|
Sensor Parameter |
1/2" 3.0MP CMOS |
|
Resolution |
2048*1536 |
|
USB port |
USB 2.0 |
|
Frame rate |
7.5 fps @ 2048*1536 |
|
Resolution Model |
2048*1536,1280×1024 ,1024×768 |
|
Pixel size |
3.18μm*3.18μm |
|
Sensitivity |
1.0 V/lus-secx |
|
S/N Ratio |
40 dB |
|
Dynamixc Range |
60 dB |
|
Color Filter |
RGB Bayer Pattern |
|
White Balance |
AUTO |
|
USB Cable Length |
1.5m |
|
O/P compatibility |
Win2k,WinXP,Vista |
|
Packing |
1. Single box:Weight:0.275kg,Measurement:19.0*13.5*8.6㎝³; 2. One carton of 50 PCS:Weight:13.0kg,Measurement:68.0*39.0*45.0㎝³; |
