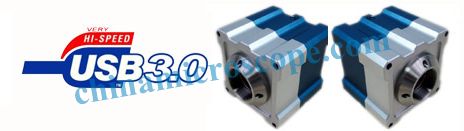

USB 3.0 is not only possess the high usability and flexibility of USB 2.0 ,but also make a qualitative leap in data rate-480Mbps of USB 2.0 to 5Gbps. Considering this property, the MIC TECH engineers decided to adopt and developed this new technology in the field of industrial camera.
It's specially designed for professional clients who both use camera with 5Mega or above and have strict requirement in capturing rate at the same time.
|
5.0 megapixel USB3.0 CMOS Camera, Color |
|
|
5.0 megapixel USB3.0 CMOS Camera, Monochrome |
|
|
14.0 megapixel USB3.0 CMOS Camera, Color |
|
|
Image sensor |
1/2.5" CMOS Color/BW |
|
Pixel dimension |
2.2um x 2.2um |
|
Scan method |
Progressive |
|
Sensitivity |
1.4V/Lux-sec(550nm) |
|
Frame rate |
14fps@
2592 x 1944, 30fps@ 1920 x 1080, |
|
Shutter |
Electronic shutter |
|
SNR |
44dB |
|
Spectral response |
400nm~1100nm |
|
Data interface |
USB3.0 rate 5Gbps,18Mcable |
|
Power |
DC 5V |
|
Current |
About 500 MA |
|
White balance |
One-time white balance/regional white balance |
|
Auto exposure control |
36us~300ms,auto/manual,regional exposure |
|
Lens Mount |
C interface (Optional CS interface) |
|
Busy indicator |
LED |
|
Working humidity |
0-85% |
|
Camera weight |
About115g |
|
Software |
MIC
image analysis software with modular designing, including image previewing,
capturing, analyzing, processing, sharing function. |
