Features：

Supply high quality and contrast image with special strain free objective.

Single polarization, othorgonal polarization and conoscopic observationon.

Transmitted light and reflect light, 24V/100W long life halogen lamp.

Stage with 45°located, attachable mechanical stage with large moving range, high efficiency by no interference
when turning objectives.

Professional polarizing microscope for geology, petroleum, chemicals, polymer, LED field.

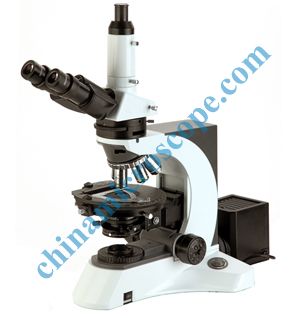

NYP2

Optical System

Infinite optical system

●

Viewing Head

Seidentopf trinocular head inclined at 30°, Interpupillary 48-75mm

●

Eyepiece

Plan eyepiece EW10X/22

●

Plan eyepiece with scale of crosshair, Plan eyepiece with cross, Plan eyepiece with gridding

●

Strain-Free Plan
Achromatic Objective

4X/0.10/∞/-  WD17.3mm

●

10X/0.25/∞/0.17  WD10.0mm

●

20X/0.40/∞/0.17  WD5.10mm

○

40X/0.65/∞/0.17  WD0.54mm

●

100X/1.25/∞/0.17  WD0.13mm

●

Nosepiece

Backward quintuple nosepiece, Center adjustable

●

Analyzer

360° dial rotation  Minimum scale reading：0.1°（Vernier scale）

●

Conoscopic observation
attachment

Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable

●

Optical Compensator

First-order red plate, Guarter-wave plate, Quartz wedge

●

Polarizing Rotatable
Stage

Diameter Φ170mm, Center adjustment, 360° scale, Minimum division 1°, Minimum reading 6 by means of venire scale, 45° Click stop knob

●

Attachable Stage

Moving range 30mmX40mm

○

Condenser

Strain-free swing condenser NA0.9/0.25

●

Focusing

Coaxial coarse & fine adjustment, Range32mm, Fine division0.001mm, Coarse stroke37.7mmper
rotation, Fine stroke0.1mmper rotation

●

Polarizer

360°rotatable 0°position adjustable

●

Illumination

24V/100W Halogen lamp, Brightness adjustable

●

Filter

Blue filter Φ45mm

●

ND6 Neutral density filter Φ45mm

○

ND25 Neutral density filter Φ45mm

○

Attachment

Video attachment

○

0.01mm Micrometer

○
