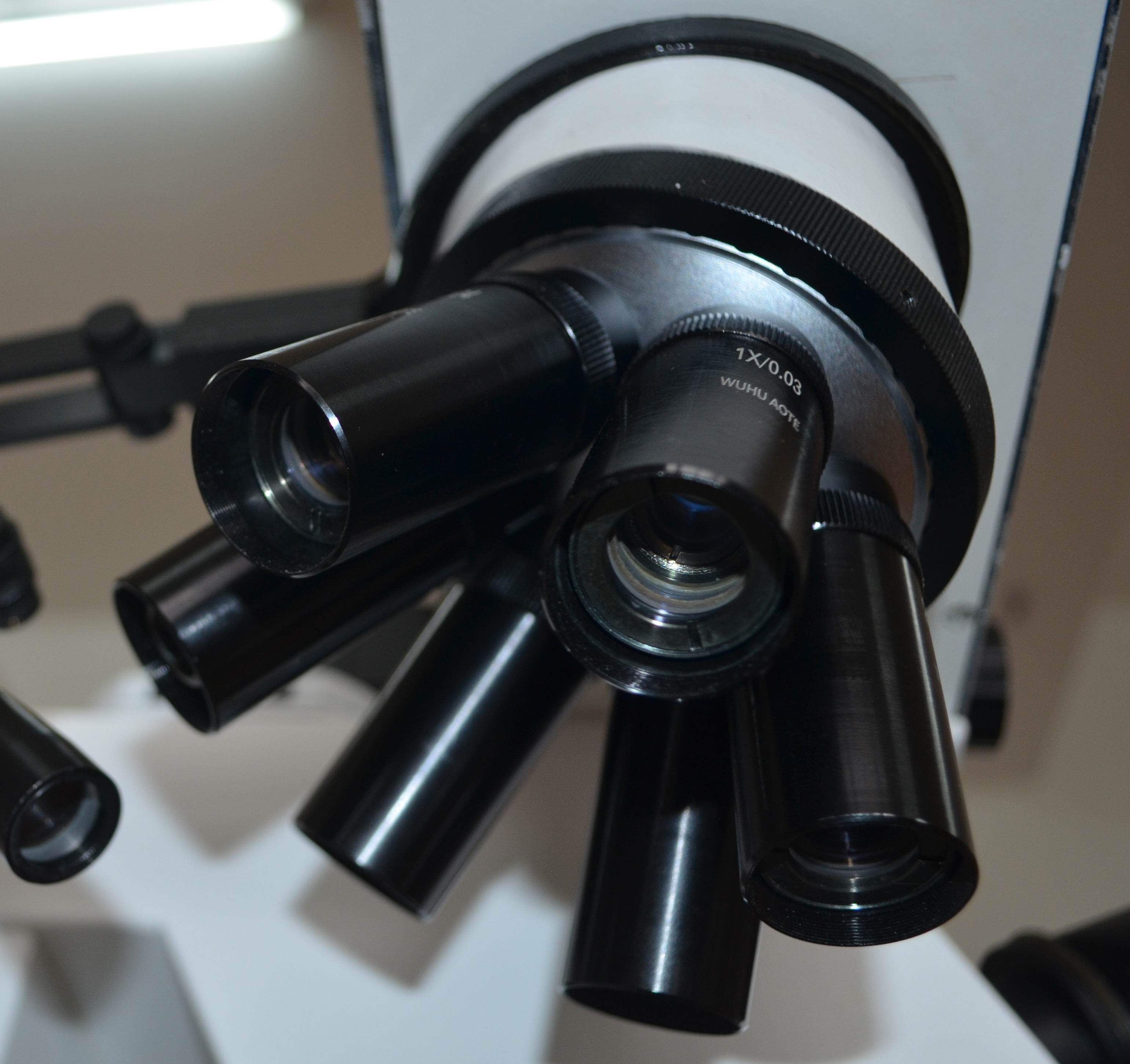

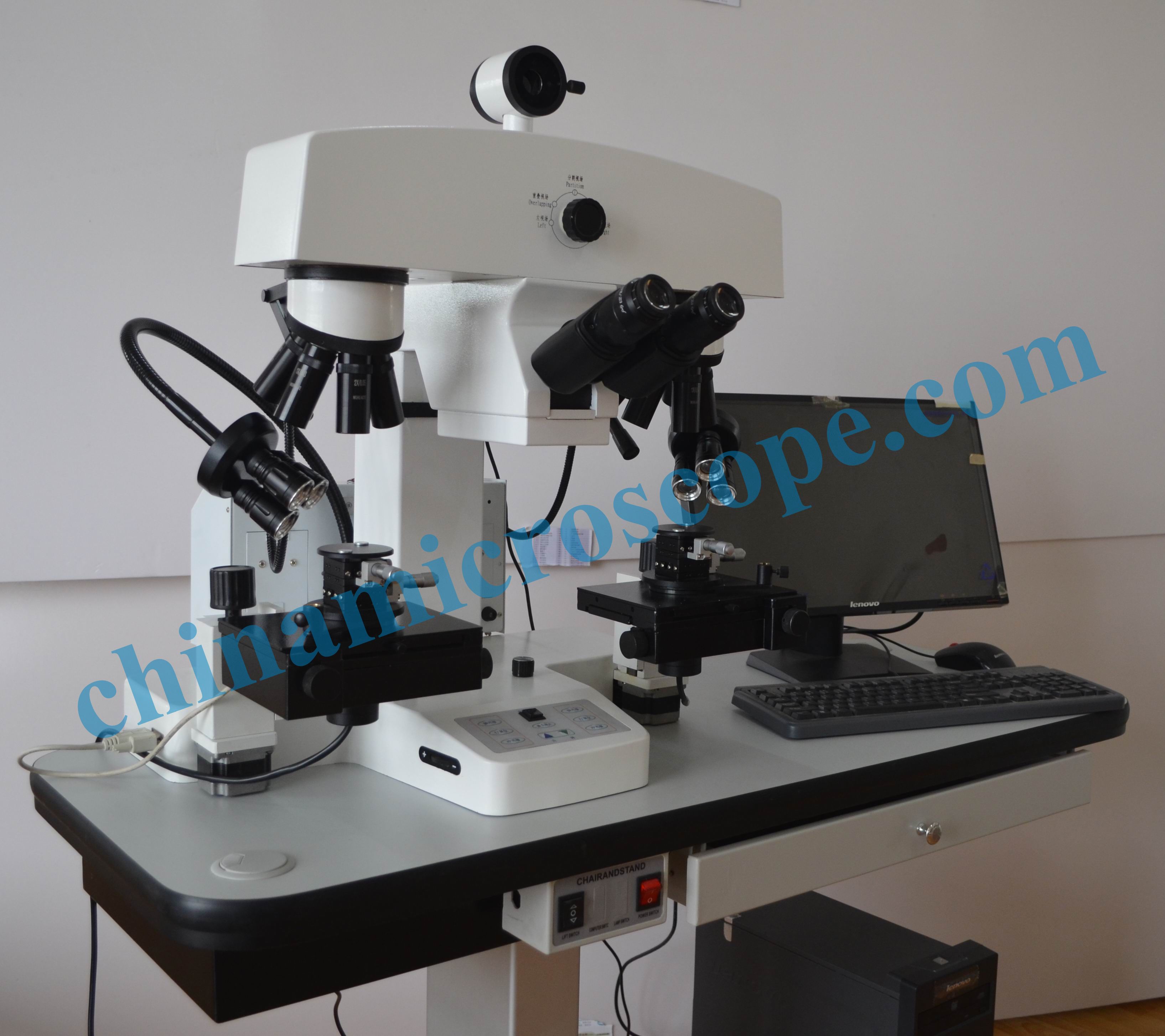

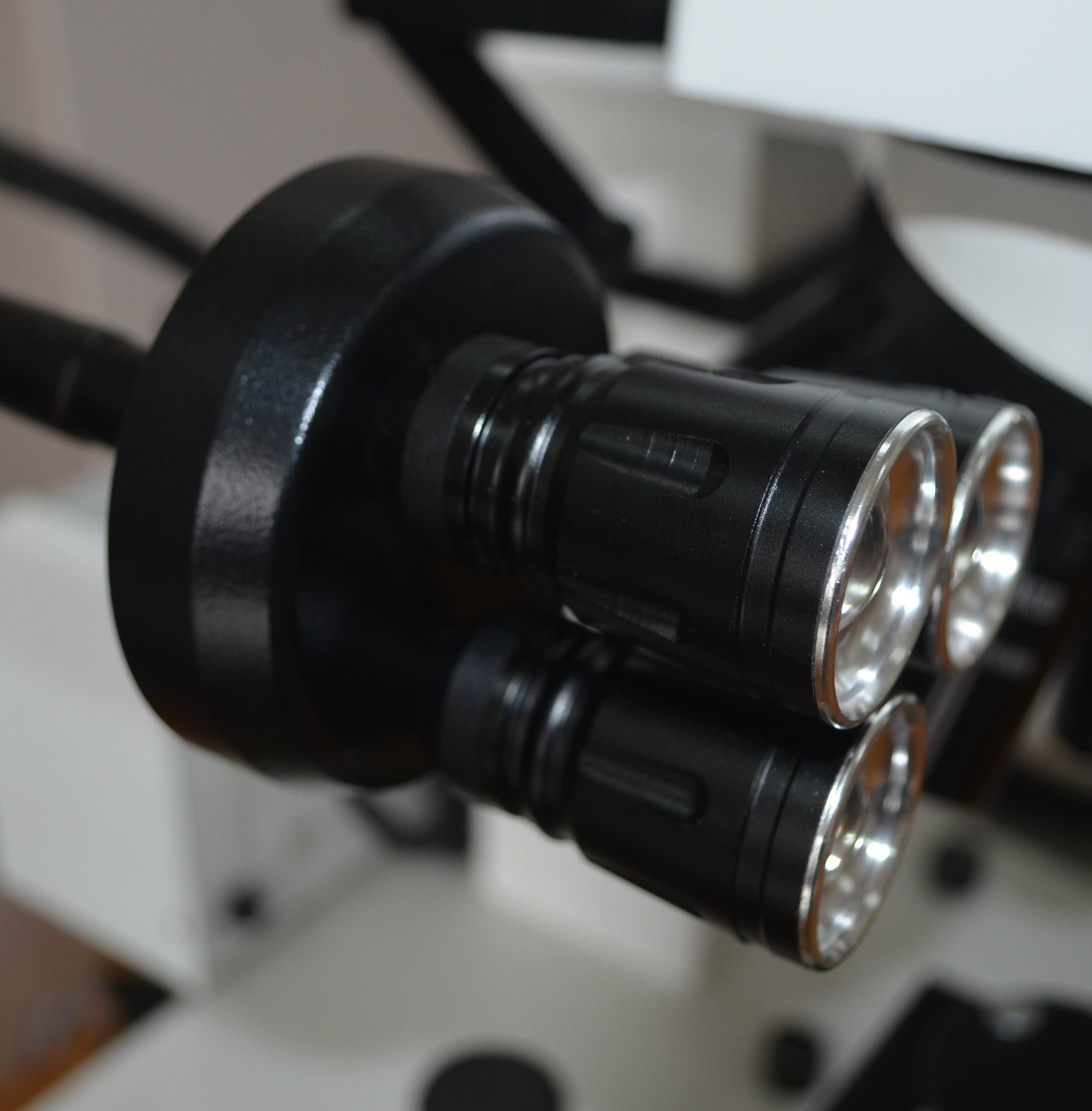

MIC-18 model comparison microscope, with the same eyepiece, observing the sample on the left and right side at the same time, making comparison by macro or micro observation of the sample, all process and be manual or automatical controlled by computer; also remote comparison through internet, including strong power LED warmly illumination, cold lighting source. New electronic six hole nosepiece with 3M pixel high resolution CCD digital camera
|
Total Magnification |
5.6x~127x definition 3000NA |
|
|
Eyepiece |
10X(24mm), 20X(12.5mm) wide field eyepiece |
|
|
Head |
0-30°inclined binocular head |
|
|
Objective |
0.6X, 1X, 1.5X, 2.5X, 4X stepping motor controlled fixed zoom change |
|
|
Working Distance |
100mm |
|
|

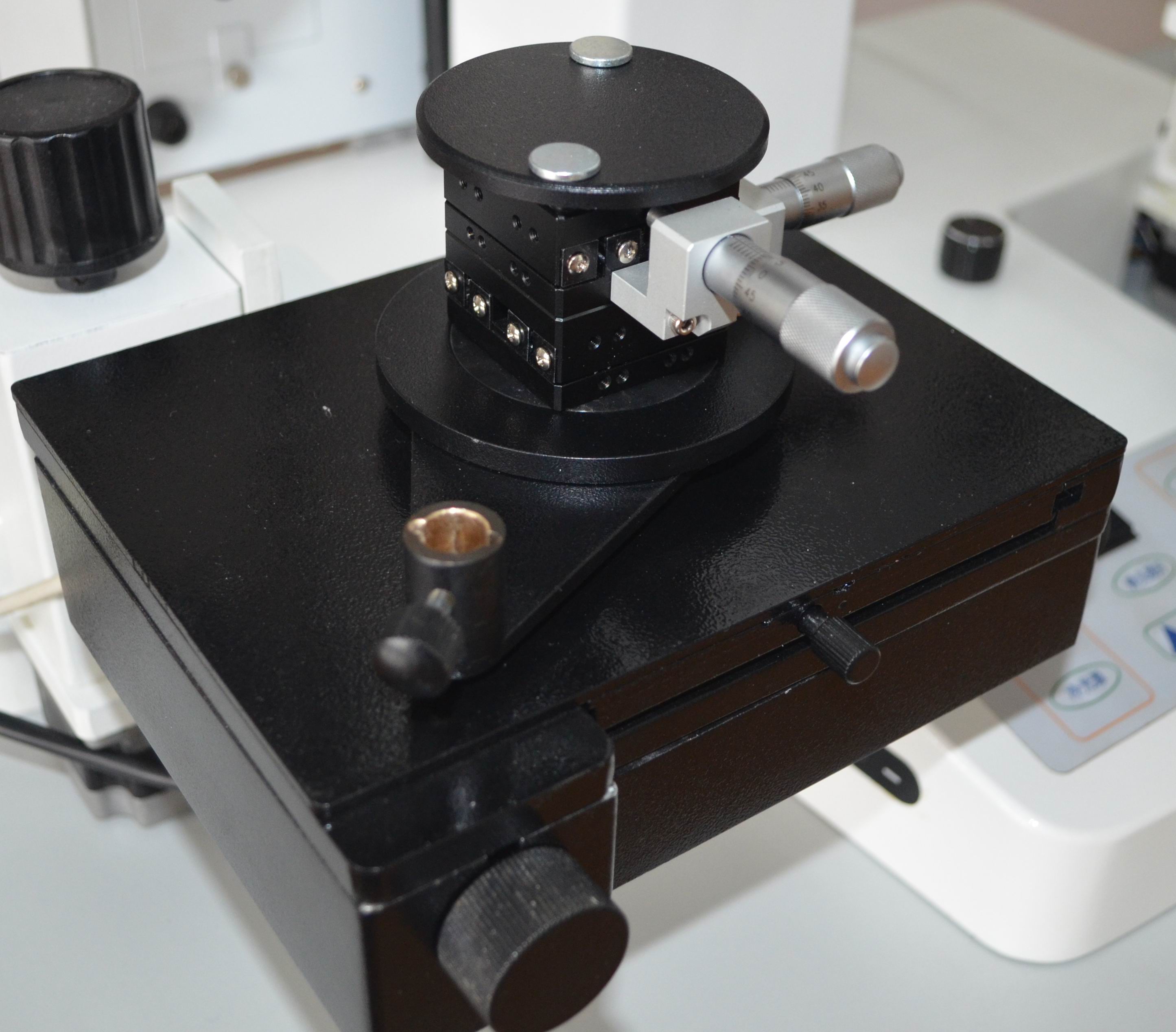

Stage |
Size: 180mmx150mm X axis 80mm, Y axis 80mm, vertical 60mm, horizontal turning angle 0°-360°, obliquity in any direction from the stage, manual or automatical stage moving in one axis, or double axis or in 3D direction. |
|
|
Bridge lift range |
0-150mm, hydraulic electronic lifting device for large size sample |
|
|
Working stage electronic lifting moving range |
0-300mm, with electronic lifting device |
|
|
Field of viewing |
Φ1mm- Φ90mm (with additional eyepiece and objective) |
|
|
Bullets start device |
small bullets start instrument |
|
|
Low magnification objective |
0.4x/Φ90mm |
|
|
|
|
