Information
1. Sharp stereo erect image over a wide field of view.
2. 45° inclined and 360° rotational binocular head with locked-in eyepiece. The left ocular-tube with diopter adjustment ±5dp, The interpupillary distance is between 55-75mm.
3. Three kinds of 90o rotational objet for selection

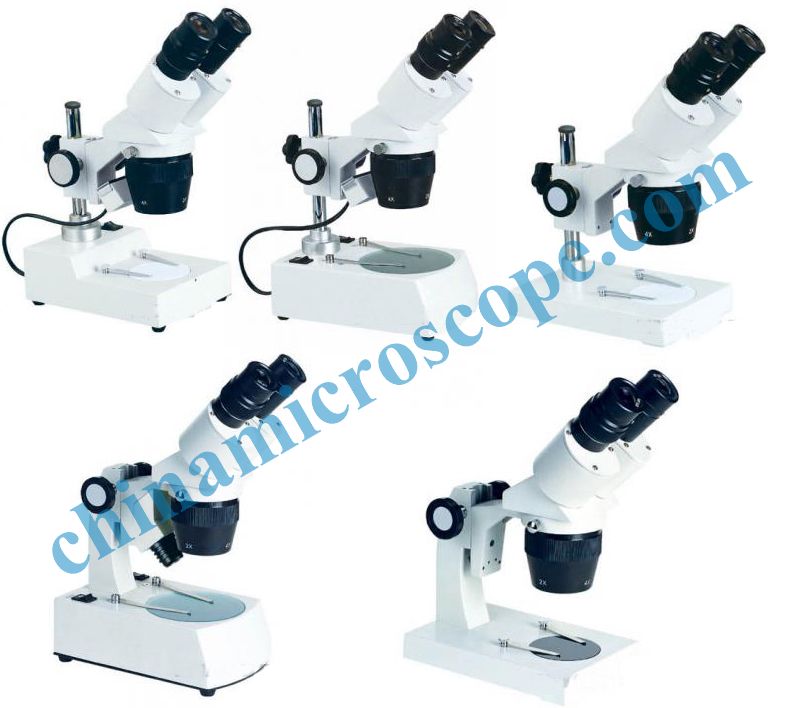

4. THH-X5(A,B,C)series supplied with pillar style stand; THH-X5(A,B,C)-W series supplied with arm curved style stand.
5. Electric apparatus has CE approval
6. Power supply 110V/60Hz or 220V/50Hz
7. Each set packed in Styrofoam and in an inner box. Four sets in one carton.
8.A wide range of optional accessories.
Optional accessories:
1. Eyepiece WF5X, WF10X, WF15X, WF20X
2. Objective 1X, 2X, 3X, 4X,
3. Dark field stage, Φ94.5mm
4. Jewel tweezers
5. White/black object plate, Φ60mm
6. Frosted glass object plate, Φ95mm
7. Incandescent bulb 12V/10W/LED
8. Halogen bulb 12V/10W
9. Ring fluorescent lighting 8W, 10W
10. Wooden cabinet with lock and key/Aluminum case
11. Ring fluorescent lighting 8W, 10W
12. Wooden cabinet with lock and key/Aluminum case
Specification
|
Model |
Eyepiece |
Objective |
Plate |
Illumination |
|
THH-X5A |
WF10X |
Rotated 1X-2X 1X-3X 2X-4X |
Black/White(Φ60) |
Natural illumination |
|
THH-X5B |
WF10X |
Black/White(Φ60) |
Incident illumination |
|
|
THH-X5C |
WF10X |
Frosted glass(Φ95) |
Incident illumination & transmitted illumination |
|
|
THH-X5A-W |
WF10X |
Black/White(Φ60) |
No |
|
|
THH-X5C-W |
WF10X |
Frosted glass(Φ95) |
Incident illumination & transmitted illumination |
Optical data: M means magnification, V means visual field, W means Working distance (mm)
O means Objective Magnification
|
O |
Eyepiece |
W |
|||||||
|
5X |
10X |
15X |
20X |
||||||
|
M |
V |
M |
V |
M |
V |
M |
V |
||
|
1X |
5X |
20.0mm |
10X |
20.0mm |
15X |
15.0mm |
20X |
10.0mm |
76mm |
|
2X |
10X |
10.0mm |
20X |
10.0mm |
30X |
7.5mm |
40X |
6.5mm |
|
|
1X |
5X |
20.0mm |
10X |
20.0mm |
15X |
15.0mm |
20X |
10.0m |
76mm |
|
3X |
15X |
7.0mm |
30X |
6.7mm |
45X |
5.0mm |
60X |
4.3m |
|
|
2X |
10X |
10.0mm |
20X |
10.0mm |
30X |
7.5mm |
40X |
6.5m |
76mm |
|
4X |
20X |
5.0mm |
40X |
5.0mm |
60X |
3.7mm |
80X |
3.2m |
|
