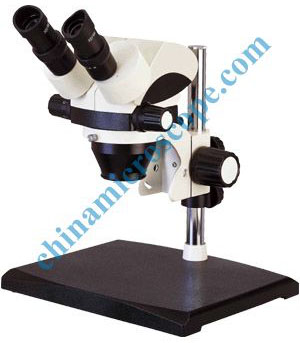

TYX-L series stereo zoom microscopes are a kind of positive image microscope, they are adopted horizontal knob to zoom control, they have long working distance, clear and smooth image quality, wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.
Features
Eyepieces field is wide and clear.
Objectives range of zoom magnification 0.7X~4.5X
Optical tube, 45° inclination. can be rotated 360°, interpupillary distance and eyepieces diopter can be adjusted, interpupillary distance adjustable range from55mm~75mm.
TYX-L1 Series
|
|
TYX-L1B |
TYX-L1C |
|||||||
|
Model Specification |
TYX-L1A |
TYX-L1B |
TYX-L1C |
||||||
|
Eyepieces |
WF10X (20mm) |
||||||||
|
Objective |
Objectives range of zoom magnification 0.7X~4.5X |
||||||||
|
Total magnification |
7X~45X |
||||||||
|
Visual field |
28.5~4.5 |
||||||||
|
Working distance |
88mm |
||||||||
|
Vertical effective movement |
25mm<=h<265mm |
25mm<=h<240mm |
|||||||
|
Base size |
240X180X25mm |
300X240X25mm |
240X180X25(mm)with movable stage, movement range:42X42(mm) |
||||||
|
Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body. |
|||||||||
|
TYX-L2 Series |
TYX-L2A |
||||||||
|
Model Specification |
TYX-L2 |
TYX-L2A |
|||||||
|
Eyepiece |
WF10X(20mm) |
||||||||
|
Objective |
Objectives range of zoom magnification 0.7X~4.5X |
||||||||
|
Total magnification |
7X~45X |
||||||||
|
Visual field |
28.5~4.5 |
||||||||
|
Working distance |
88mm |
||||||||
|
Vertical effective movement |
25mm<=h<265mm |
25mm<=h<130mm |
|||||||
|
Base size |
215X160X60mm |
||||||||
|
Illumination model |
Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness |
||||||||
|
Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body. |
|||||||||
|
TYX-L3 Series |
TYX-L3A |
||||||||
|
Model Specification |
TYX-L3 |
TYX-L3A |
|||||||
|
Eyepiece |
WF10X(20mm) |
||||||||
|
Objective |
Objectives range of zoom magnification 0.7X~4.5X |
||||||||
|
Total magnification |
7X~45X |
||||||||
|
Visual field |
28.5~4.5 |
||||||||
|
Working distance |
88mm |
||||||||
|
Vertical effective movement |
25mm<=h<265mm |
25mm<=h<130mm |
|||||||
|
Base size |
215X160X60mm |
||||||||
|
Illumination model |
Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness |
||||||||
|
Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body. |
|||||||||
|
TYX-L101 |
TYX-L102 |
||||||||
|
Model Specification |
TYX-L101 |
TYX-L102 |
|||||||
|
Eyepiece |
WF10X (20mm) |
||||||||
|
Objective |
Objectives range of zoom magnification 0.7X~4.5X |
||||||||
|
Total magnification |
7X~45X |
||||||||
|
Visual field |
28.5~4.5 |
||||||||
|
Working distance |
88mm |
||||||||
|
Vertical effective movement |
35mm<=h<215mm |
35mm<=h<265mm |
|||||||
|
Base size |
260X290X55mm |
300X240X25mm |
|||||||
|
Illumination model |
Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness |
Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness
|
|||||||
|
Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body. |
|||||||||
TYX-L103 Series
|
TYX-L103A |
TYX-L103B |
TYX-L103C |
|||
|
Model Specification |
TYX-L103A |
TYX-L103B |
TYX-L103C |
||
|
Eyepiece |
WF10X (20mm) |
||||
|
Objective |
Objectives range of zoom magnification 0.7X~4.5X |
||||
|
Total magnification |
7X~45X |
||||
|
Visual field |
28.5~4.5 |
||||
|
Working distance |
88mm |
||||
|
Vertical effective movement |
35mm<=h<265mm |
35mm<=h<265mm |
35mm<=h<240mm |
||
|
Base size |
240X180X25(mm) |
300X240X25mm |
240X180X25(mm)with movable stage, movement range:42X42(mm) |
||
|
Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body. |
|||||
|
|
|||||
Optional accessories
|
Name |
Sort/Technique parameter |
NO. |
|
Eyepiece |
Wide field eyepiece WF10X(22mm) |
1062010 |
|
Wide field eyepiece WF15X(15mm) |
1061015 |
|
|
Wide field eyepiece WF20X(12mm) |
1060020 |
|
|
Wide field eyepiece WF25X(9mm) |
1060025 |
|
|
Divisional wide field eyepiece 10X(20mm)0.1mm/Div |
1111010 |
|
|
Divisional wide field eyepiece 10X(22mm)0.1mm/Div |
1112010 |
|
|
Optical body |
Trinocular body |
602003 |
|
Trinocular body |
602004 |
|
|
Additional objective |
0.5X W.D.137mm |
621002 |
|
0.75X W.D.103mm |
622002 |
|
|
1X W.D.88mm |
623001 |
|
|
1.5X W.D.48mm |
624002 |
|
|
2X W.D.29mm |
625002 |
|
|
Illumination |
8W/90«265V Annular LED illumination W.D.:35~200mm |
630002 |
|
5W,110V /220V Annular fluorescent illumination |
630003 |
|
|
CCD adapter |
0.5X |
813004 |
|
1X |
813005 |
|
|
Camera |
DV-1 With USB & video output |
800001 |
|
DV-2 With USB output |
800003 |
|
|
DV-3 With video output |
800005 |
