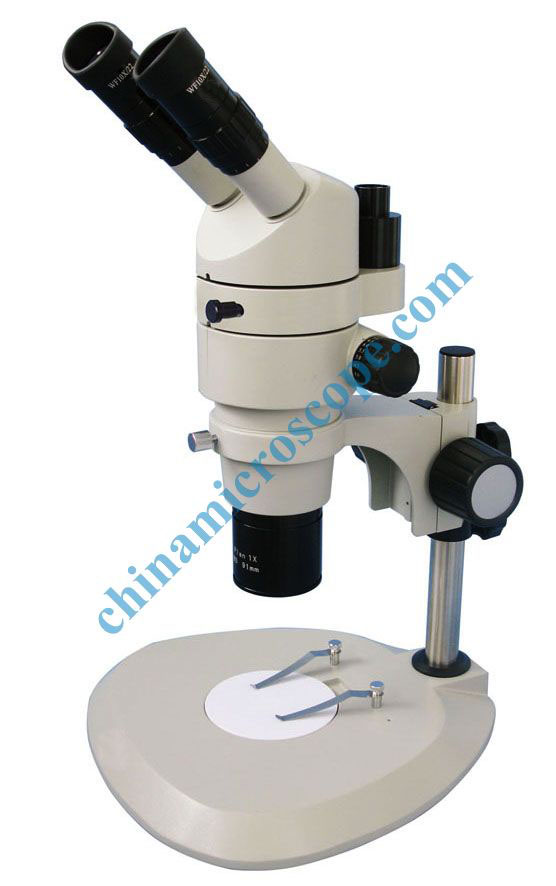

TM-80 series parallel optics zoom stereo microscopes have two types, TM-80 (binocular) and TM-80T (trinocular). It is characterized by parallel optical system. Magnification range of zoom body is 0.8X~8X, magnification from high to low non-flash in focusing course, large depth of field, long working distance, has many kinds of attachments. It can be satisfied the demands of checking-up and analysis in modern biology, medicine, environment, farming, police, micro-electronics, semiconductors etc. fields.
Standard specification：
|
|
TM-80 |
TM-80T |
|
Main body ZPS0880 |
● |
|
|
Main body ZPS0880T |
|
● |
|
Eyepieces WF10X/22 |
●● |
●● |
|
Eye shields |
●● |
●● |
|
1X plane objective PS-WP1.0 |
● |
● |
|
Stand SD1 |
● |
● |
Technical data：
|
Eyepiece |
Objective |
0.5X |
0.7X |
1X |
1.5X(auxiliary objective) |
|
10X |
Total magnification |
4X~40X |
5.6X~56X |
8X~80X |
12X~120X |
|
Diameter of visual field(mm) |
Φ55~Φ5.5 |
Φ39.3~Φ3.93 |
Φ27.5~Φ2.75 |
Φ18.33~Φ1.83 |
|
|
15X |
Total magnification |
6X~60X |
8.4X~84X |
12X~120X |
18X~180X |
|
Diameter of visual field(mm) |
Φ42.5~Φ4.25 |
Φ30.36~Φ3.04 |
Φ21.25~Φ2.13 |
Φ14.17~Φ1.42 |
|
|
20X |
Total magnification |
8X~80X |
11.2X~112X |
16X~160X |
24X~240X |
|
Diameter of visual field(mm) |
Φ35~Φ3.5 |
Φ25~Φ2.5 |
Φ17.5~Φ1.75 |
Φ11.67~Φ1.17 |
|
|
30X |
Total magnification |
12X~120X |
16.8X~168X |
24X~240X |
36X~360X |
|
Diameter of visual field(mm) |
Φ22.5~Φ2.25 |
Φ16.1~Φ1.61 |
Φ11.25~Φ1.13 |
Φ7.5~Φ0.75 |
|
|
Working distance(mm) |
186 |
135 |
91 |
40 |
|
