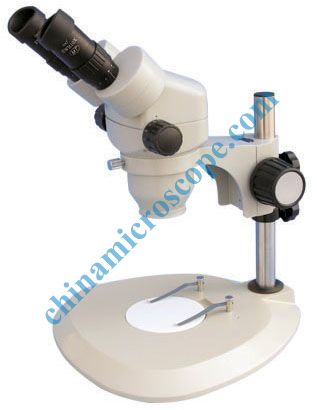

Total magnification 10X~65X(standard outfits), extend total magnification：390X
Zoom objective magnification 1.0X~6.5X, working distance118mm.
With high eye point and wide field eyepiece SWH10X(Φ23mm)
Binocular/ Trinocular eyetubes inclined 45°and main body can be rotated 360°
The range of adjusting the diopter is ±6
Interpupillary distance adjustment range52mm~76mm
The range of adjusting the focus is50mm(the square post is100mm), the diameter of the center working stage is Φ95mm
The measurement to match between the support and the main body is Φ76mm
The distance between from the post center to the main body center is140mm
The size of the round post is Φ25mm
Illuminators : the low illuminator is the transmitted illumination of the fluorescent lamp(5W),the up illuminator is the reflected illumination of the halogen lamp(6V、10W).
Standard specification：
|
|
TM-65 |
TM-65T |
|
Main body ZS1065 |
● |
|
|
Main body ZS1065T |
|
● |
|
Eyepieces SWH10X |
●● |
●● |
|
Eye shields |
●● |
●● |
|
Stand SD1 |
● |
● |
Technical data：
|
Eyepiece |
Objective |
Main body |
With 0.37X objective |
With 0.5X objective |
With 0.7X objective |
With 1.5X objective |
With 2X objective |
|
1X~6.5X |
0.37X~2.4X |
0.5X~3.3X |
0.7X~4.6X |
1.5X~9.8X |
2X~13X |
||
|
10X |
Total magnification |
10X~65X |
3.7X~24.1X |
5X~32.5X |
7X~46X |
15X~98X |
20X~130X |
|
Diameter of visual field(mm) |
Φ23~Φ3.5 |
Φ62.2~Φ9.6 |
Φ46~Φ7 |
Φ32.9~Φ5 |
Φ15.3~Φ2.3 |
Φ11.5~Φ1.8 |
|
|
15X |
Total magnification |
15X~97.5X |
5.55X~36.1X |
7.5X~48.8X |
10.5X~69X |
22.5X~147X |
30X~195X |
|
Diameter of visual field(mm) |
Φ17~Φ2.6 |
Φ45.9~Φ7.1 |
Φ34~Φ5.2 |
Φ24.3~Φ3.7 |
Φ11.3~Φ1.7 |
Φ8.5~Φ1.3 |
|
|
20X |
Total magnification |
20X~130X |
7.4X~48.1X |
10X~65X |
14X~92X |
30X~196X |
40X~260X |
|
Diameter of visual field(mm) |
Φ14~2.2 |
Φ37.8~Φ5.8 |
Φ28~Φ4.2 |
Φ20~Φ3.1 |
Φ9.3~Φ1.4 |
Φ7~Φ1.1 |
|
|
30X |
Total magnification |
30X~195X |
11.1X~72.2X |
15X~97.5X |
21X~138X |
45X~294X |
60X~390X |
|
Diameter of visual field(mm) |
Φ9~Φ1.4 |
Φ24.3~Φ3.7 |
Φ18~Φ2.7 |
Φ12.9~Φ2 |
Φ6~Φ0.9 |
Φ4.5~Φ0.7 |
|
|
Working distance(mm) |
118 |
275 |
195 |
145 |
50 |
35 |
|
Note: Please use lengthen round post when using 0.37X or 0.5X objective. When using 0.37X objective, the round post lengthen to350 mmat least.
