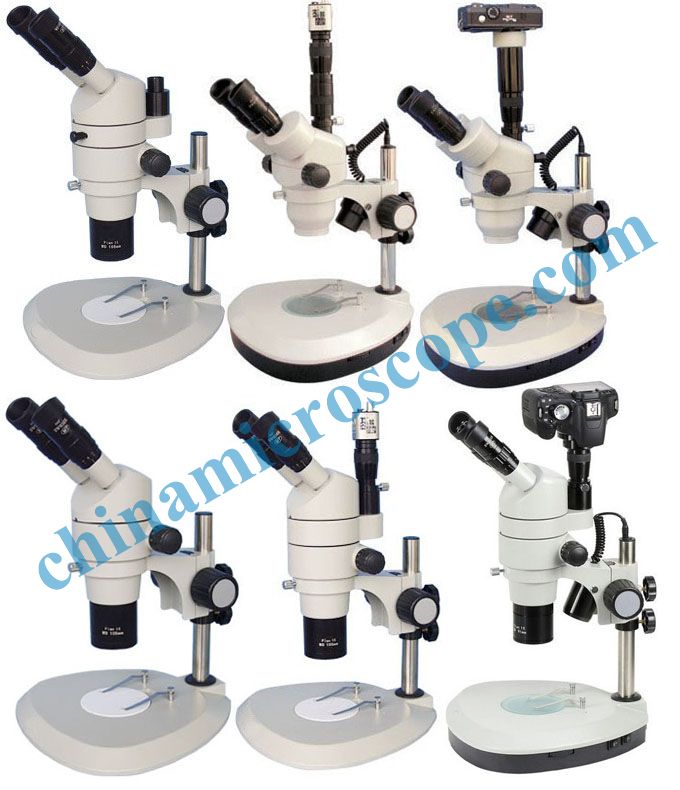

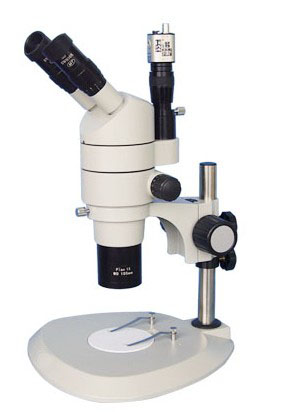

MIC TM-50 series parallel optics zoom stereo microscopes have two types, TM-50 (binocular) and TM-50T (trinocular). It is characterized by parallel optical system. Magnification range of zoom body is 0.8X~5X, magnification from high to low non-flash in focusing course, large depth of field, long working distance, has many kinds of attachments. It can be satisfied the demands of checking-up and analysis in modern biology, medicine, environment, farming, police, micro-electronics, semiconductors etc. fields.
Main technology Specifications：
|
Parallel optics system, 0.8X~5X zoom body, standard outfits. 1X plane none aberrance 10X |
|
eyepiece, working distance91mm. |
|
Standard total magnification: 8X~50X, the biggest magnification: 225X. |
|
With plan, high eye point and wide field eyepieces(Φ22mm). |
|
Binocular eye tubes inclined 45°. |
|
The range of adjusting the diopter is ±6 |
|
Interpupillary distance adjustment range50mm~76mm |
|
The range of adjusting the focus is50mm(the square post is100mm), the diameter of the center working stage is Φ95mm. |
|
The measurement to match between the support and the main body is Φ76mm |
|
The distance between from the post center to the main body center is140mm |
|
The size of the round post is Φ25mm |
|
There are many magnification objectives, eyepieces, auxiliary illuminators etc. attachments and kinds of stands and universal stands to be selected. |
Standard specification：
|
|
MIC TM-50 |
MIC TM-50T |
|
Main body ZPS0850 |
● |
|
|
Main body ZPS0850T |
|
● |
|
Eyepieces WF10X/22 |
●● |
●● |
|
Eye shields |
●● |
●● |
|
1X plane objective PS-WP1.0 |
● |
● |
|
Stand SD1 |
● |
● |
Technical data：
|
Eyepiece |
Objective |
0.5X |
0.7X |
1X |
1.5X(auxiliary objective) |
|
10X |
Total magnification |
4X~25X |
5.6X~35X |
8X~50X |
12X~75X |
|
Diameter of visual field(mm) |
Φ55~Φ8.8 |
Φ39.3~Φ6.3 |
Φ27.5~Φ4.4 |
Φ18.33~Φ2.93 |
|
|
15X |
Total magnification |
6X~37.5X |
8.4X~52.5X |
12X~75X |
18X~112.5X |
|
Diameter of visual field(mm) |
Φ42.5~Φ6.8 |
Φ30.36~Φ4.86 |
Φ21.25~Φ3.4 |
Φ14.17~Φ2.27 |
|
|
20X |
Total magnification |
8X~50X |
11.2X~70X |
16X~100X |
24X~150X |
|
Diameter of visual field(mm) |
Φ35~Φ5.6 |
Φ25~Φ4 |
Φ17.5~Φ2.8 |
Φ11.67~Φ1.87 |
|
|
30X |
Total magnification |
12X~75X |
16.8X~105X |
24X~150X |
36X~225X |
|
Diameter of visual field(mm) |
Φ22.5~Φ3.6 |
Φ16.1~Φ2.57 |
Φ11.25~Φ1.8 |
Φ7.5~Φ1.2 |
|
|
Working distance(mm) |
186 |
135 |
91 |
40 |
|
Note: 1. Please use lengthen
round post when using 0.5X objective.
2. Please use 1X plane objective & 1.5X auxiliary objective together when
using 1.5X.
|
Model: 0.5X achromatic objective PS-W0.5, working distance186mm, 0.7X achromatic objective PS-W0.7, working distance135mm, 1X plane achromatic none aberrance objective PS-WP1.0, working distance91mm, 1.5X achromatic objective PS-W1.5, working distance40mm. Introduction：Select different magnification objectives, obtain different total magnification and working distance. |
|
|

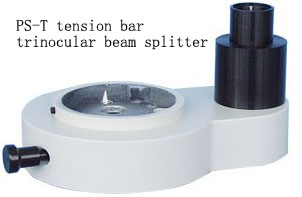

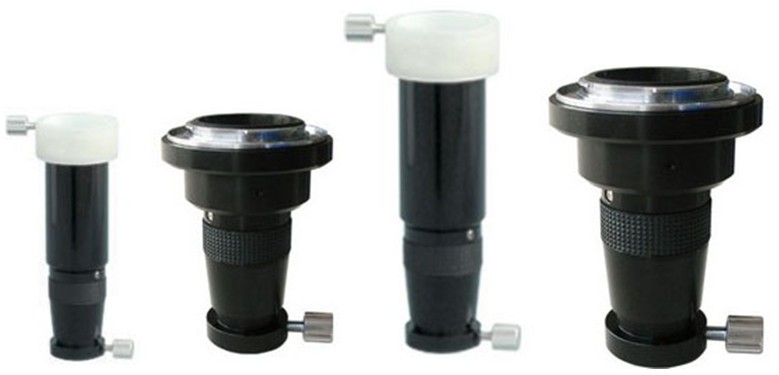

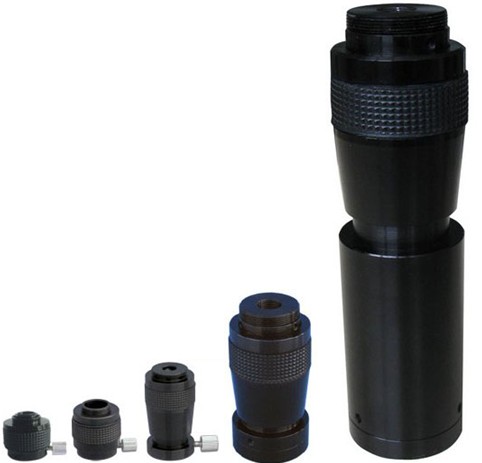

Model：Trinocular beam splitter
Introduction： |
||
|
|
||
|
|
||
|
|
5X wide
field eyepiece WF5X (FNΦ22mm)10X
plane wide field eyepiece WF10X/22 (FNΦ22mm) |
|
|
|

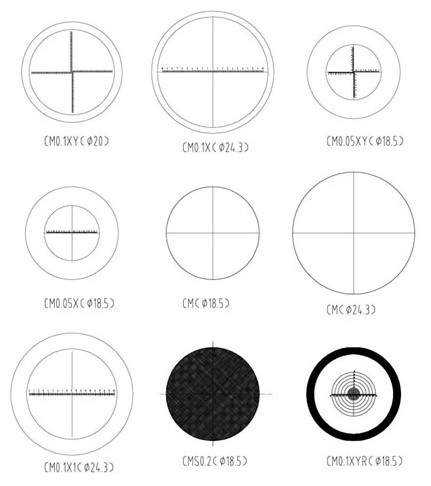

10X divisional
eyepiece WF10X-CM0.1XY(0.1mm/scale)
|
|
|
|
a line
stage micrometer CML0.01(0.01mm/scale) |
|
|
|
||
