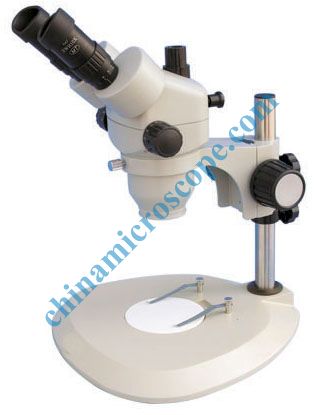

TM-45 series zoom
stereo microscopes have two types, TM-45(binocular) and TM-45T (trinocular). It
is characterized by brand-new optical design, the best reproduction and true
color image. It has many optional stands and attachments. It can be applied in modern
biology research, semiconductor and the other science and technology industry
field.
Main technology Specifications：
|
Total magnification 7X~45X (standard outfits), extend total magnification：270X |
|
Zoom objective magnification 0.7X~4.5X, working distance110mm. |
|
With high eye point and wide field eyepiece SWH10X(Φ23mm) |
|
Binocular/ Trinocular eye tubes inclined 45°and main body can be rotated 360° |
|
The range of adjusting the diopter is ±6 |
|
Interpupillary distance adjustment range52mm~76mm |
|
The range of adjusting the focus is50mm(the square post is100mm), the diameter of the center working stage is Φ95mm |
|
The measurement to match between the support and the main body is Φ76mm |
|
The distance between from the post center to the main body center is140mm |
|
The size of the round post is Φ25mm |
|
Illuminators : the low illuminator is the transmitted illumination of the fluorescent lamp(5W),the up illuminator is the reflected illumination of the halogen lamp(6V、10W). |
Standard specification：
|
|
TM-45 |
TM-45T |
|
Main body ZS0745 |
● |
|
|

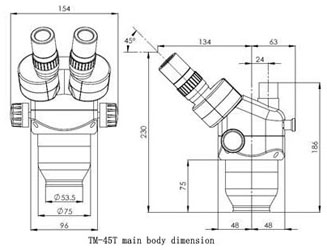

Main body ZS0745T |
|
● |
|
Eyepieces SWH10X |
●● |
●● |
|
Eye shields |
●● |
●● |
|

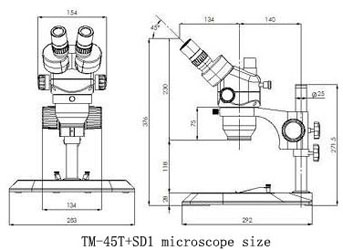

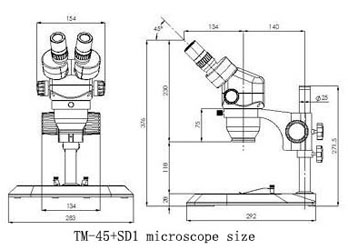

Stand SD1 |
● |
● |
Technical data：
|
Eyepiece |
Objective |
Main body |
0.37X objective |
0.5X objective |
0.7X objective |
1.5X objective |
2X objective |
|
0.7X~4.5X |
0.26X~1.67X |
0.35X~2.25X |
0.49X~3.15X |
1.05X~6.75X |
1.4X~9X |
||
|
10X |
Total magnification |
7X~45X |
2.59X~16.65X |
3.5X~22.5X |
4.9X~31.5X |
10.5X~67.5X |
14X~90X |
|
Diameter of visual field(mm) |
Φ32.8~Φ5.1 |
Φ88.8~Φ13.8 |
Φ65.7~Φ10.2 |
Φ46.9~Φ7.3 |
Φ21.9~Φ3.4 |
Φ16.4~Φ2.6 |
|
|
15X |
Total magnification |
10.5X~67.5X |
3.89X~25X |
5.3X~33.8X |
7.4X~47.2X |
15.8X~101.3X |
21X~135X |
|
Diameter of visual field(mm) |
Φ24.3~Φ3.8 |
Φ65.6~Φ10.2 |
Φ48.6~Φ7.6 |
Φ34.7~Φ5.4 |
Φ16.2~Φ2.5 |
Φ12.1~Φ1.9 |
|
|
20X |
Total magnification |
14X~90X |
5.18X~33.3X |
7X~45X |
9.8X~63X |
21X~135X |
28X~180X |
|
Diameter of visual field(mm) |
Φ20~Φ3.1 |
Φ54.1~Φ8.4 |
Φ40~Φ6.2 |
Φ28.6~Φ4.4 |
Φ13.3~Φ2.1 |
Φ10~Φ1.6 |
|
|
30X |
Total magnification |
21X~135X |
7.77X~50X |
10.5X~67.5X |
14.7X~94.5X |
31.5X~202.5X |
42X~270X |
|
Diameter of visual field(mm) |
Φ12.9~Φ2 |
Φ34.7~Φ5.4 |
Φ25.7~Φ4 |
Φ18.4~Φ2.9 |
Φ8.6~Φ1.6 |
Φ6.4~Φ1 |
|
|
Working distance(mm) |
118 |
275 |
195 |
145 |
50 |
35 |
|
Note: Please use
lengthen round post when using 0.37X or 0.5X objective. When using 0.37X
objective, the round post lengthen to350 mmat least.
|
|
|
|
|
