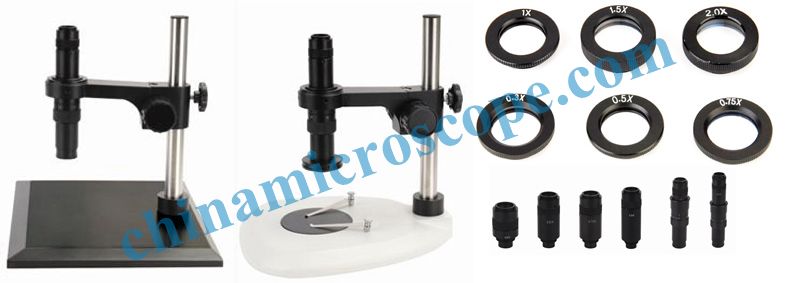

THW-M45 series zoom monocular video microscope systems are characterized by one of Parallel optical path. With high-resolution and high definition. They can be used in electric equipments, semi-conductor, LCD, LED etc. for observing digital images, checking-up and survey. We can observe different objects with different illumination.
Technical Spec.
1. In focus and non-flash in zoom course
2. Zoom objective magnification 0.7X~4.5X
3. The measurement to match between the support and the main body is39mm,45mm, add the connecting ring is76mm.
4. 0.35X, 0.5X (standard), 0.75X, 1X CCD eyepiece adapter to be selected
5. 0.5X, 0.75X, 1X (standard), 1.5X, 2X objectives to be selected
6. Kinds of illuminations and stands to selected
Technical data:
|
Objective |
Project |
CCD Eyepiece Adapter |
|||||
|
0.35X |
0.5X |
0.75X |
1X |
1.5X |
2X |
||
|
0.5X |
Optical Magnification |
0.1225~0.7875 |
0.175~1.125 |
0.2625~1.688 |
0.35~2.25 |
0.525~3.375 |
0.5~4.5 |
|
Field of video(mm) |
46~7 |
35~5 |
23.5~4 |
17.6~3 |
11.8~2 |
8.8-1~3 |
|
|
Work distance(mm) |
198 |
||||||
|
0.75X |
Optical Magnification |
0.18375~1.18125 |
0.2625~1.6875 |
0.39375~2.53125 |
0.525~3.375 |
0.7875~5.0625 |
1.05~6.75 |
|
Field of video(mm) |
31-4.7 |
23.5-3.6 |
15.7-2.4 |
12-1.8 |
7.8-1.2 |
6-0.9 |
|
|
Work distance(mm) |
131 |
||||||
|
1X |
Optical Magnification |
0.245~1.575 |
0.35~2.25 |
0.525~3.375 |
0.7~4.5 |
1.05~6.75 |
1.4~9 |
|
Field of video(mm) |
23-3 |
17.6-2.7 |
12-1.8 |
9-16 |
6-0.98 |
4-0.7 |
|
|
Work distance(mm) |
96 |
||||||
|
1.5X |
Optical Magnification |
0.3675~2.3625 |
0.525~3.375 |
0.7875~5.0625 |
1.05~6.75 |
1.575~10.125 |
2.1~13.5 |
|
Field of video(mm) |
15-2.3 |
11.8-1.8 |
7.8-1.2 |
6-0.99 |
4-0.61 |
3-0.4 |
|
|
Work distance(mm) |
63 |
||||||
|
2X |
Optical Magnification |
0.49-3.15 |
0.7~4.5 |
1.05~6.75 |
1.4~9 |
2.1~13.5 |
2.8~18 |
|
Field of video(mm) |
11.6-1.7 |
8.8-1.3 |
6-0.9 |
4-0.71 |
3-0.41 |
2-0.3 |
|
|
Work distance(mm) |
46 |
||||||
