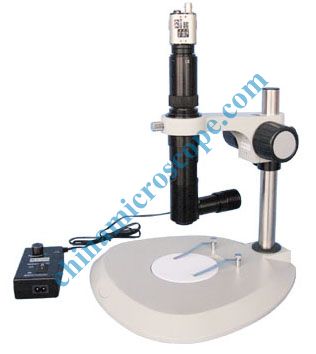

TMM-746Cseries high-contrasted coaxial illumination zoom monocular video microscope systems have high-quality effect of coaxial illumination. The contrast, definition and depth of field are very good. In addition to match with coaxial illumination, also can match with LED ring illuminator. It can be used for observing and measuring reflecting objects. Specially fit for checking-up the underside of the small deep hole, the bug of LCD, checking-up and measuring plane presswork’s and other plane articles with low reflectivity. TMM-746Cseries include the following models: ●TMM-746C, ●TMM-746C-D (Its shape is similar with TMM-746C), ●TMM-746C-PL, C expresses coaxial illumination. D expresses click-stop at integer magnification in zoom course. P expresses coaxial illumination with polarized module.
Main technology Specifications：
● Range of zoom objective magnification: 0.7X-4.6X, working distance73mm
● Adjusting high lightness long life LED coaxial illumination
● The measurement to match between the support and the main body isΦ45mm
● Standard CS-mount(the distance between the bearing surface and CCD plate is12.5mm)
● 0.5X, 1X(standard outfits), 1.5X CCD adapters to be selected
Standard specification：
|
|
TMM-746C |
TMM-746C-D |
|
Main body ZDB0746C |
● |
|
|
Main body ZDB0746C-D |
|
● |
|
Stand SD1-D |
● |
● |
|
LED illuminator MLC1000 |
● |
● |
Main optical data:
|
Auxiliary objective |
CCD adapter |
|||
|
Main body (Without auxiliary objective) |
|
0.5X |
1X |
1.5X |
|
Optical magnification |
0.35X-2.3X |
0.7X-4.6X |
1.05X-6.9X |
|
|
Field of video (mm) |
10.29X13.71-1.57X2.09 |
5.14X6.86-0.78X1.04 |
3.43X4.57-0.52X0.7 |
|
|
Working distance(mm) |
73 |
|||
|
Magnification range of zoom body 0.7X-4.6X |
||||
|
Item/Model |
ZDB0746C |
|||
|
Optical magnification |
0.7X~4.6X |
|||
|
|
0.7X |
2.0X |
4.6X |
|
|
NA |
0.022 |
0.052 |
0.072 |
|
|
Depth of field |
2.6mm |
0.38mm |
0.12mm |
|
|
Resolution |
15.3μm |
6.5μm |
4.7μm |
|
|
TV distortion |
0.07% |
0.11% |
0.09% |
|
|
Install dimension |
0Φ45 mm-0.1 |
|||
|
The largest compatible camera |
1/2" |
|||
|
CCD whorl mount |
1 inch 32 button |
|||
The depth of field is the value of parsing images if you use 1/2" CCD camera and monitor of level 320 line.(Imaging surface concessional confusion circumference: 40μm)
Resolution is the theory resolution of wavelength in 550nm.
