TL-68
Magnification: 0.7X-4 5X (Zoom ratio 6.5:1) Work distance, 90(mm) Focus adjustment: 0-3mmCCD camera which can be connected to 1/3", 1/2" . 2/3" Connected to 2/3" CCD camera, the field of vision scope in standard configuration: 15.7-2.44 mm
|
Product Item |
Zoom monocular |
Coaxial illumination zoom monocular |
Internal Focus Coaxial illumination zoom monocular |
|
Optical magnification |
0.7X-4.5X (Zoom ratio 6.5:1) |
||
|
|
0.7X |
2X |
4.5X |
|
Effective FNO |
14.4 |
18.3 |
32 |
|
Depth of field |
2.1mm |
0.37mm |
0.12mm |
|
Resolution |
12.4 µm |
6 µm |
4.7 µm |
|
TV distortion |
＜0.15% |
＜0.1% |
＜0.05% |
|
Largest Compatible CCD |
1/2" |
||
|
Mount |
c Mount |
||
The depth of field is the value of parsing images if you user 1/2" CCD camera and montior for level 320 line (imaging surface concessional confusion circumference:40)
Resolution is the theory resolute on of wavelength in 550nm
|
Auxiliary objective |
W.D. {mm) |
CCD Specification |
0.5X adapter Low-High |
0.67X adapter Low-High |
1X adapter Low-High |
2X adapter Low-High |
|
|
|
|
0.09X-0.56X |
0.12X-0.75X |
0.18X-1.13X |
0.35X-2.25X |
|
0.25X |
302 |
1/3" |
68.57-10.66 |
51.17-7.96 |
34.28-5.33 |
17.14-2.66 |
|
|
302 |
1/2" |
|
|
45.71-7.11 |
22.85-3.55 |
|
|
302 |
2/3" |
|
|
62.85-9.77 |
31.42-4.88 |
|
|
|
|
|
|
|
|
|
o.5x |
|
|
0.18X-1.12X |
0.23X-1.50X |
0.35X-2.25X |
0.7X-4.5X |
|
|
176 |
1/3" |
34.28-5.33 |
25.58-3.98 |
17.14-2.66 |
8.57-1.33 |
|
|
176 |
1/2" |
|
|
22.85-3.55 |
11.42-1.77 |
|
|
176 |
2/3" |
|
|
31.42-4.881 |
15.71-2.44 |
|
|
|
|
|
|
|
|
|
0.75X |
|
|
0.26X-1.69X |
0.35X-2.26X |
0.53X-3.38X |
1.05X-6.75X |
|
|
117 |
1/3" |
22.88-3.55 |
17.06-2.65 |
11.43-1.78 |
5.71-0.89 |
|
|
117 |
1/2" |
|
|
15.24-2.37 |
7.61-1.18 |
|
|
117 |
2/3" |
|
|
20.95-3.26 |
10.48-1.63 |
|
|
|
|
|
|
|
|
|
None |
|
|
0.35X-2.25X |
0.47X-3.OOX |
0.7X-4.5X |
1.40X-9.OOX |
|
|
96 |
1/3" |
17.14-2.66 |
12 79-1.99 |
8.57-1.33 |
4.28-0.66 |
|
|
96 |
1/2" |
|
|
11.42-1.77 |
5.71-0.89 |
|
|
96 |
2/3" |
|
|
15.71-2.44 |
7.86-1.22 |
|
|
|
|
|
|
|
|
|
1 5× |
|
|
0.56X-3.38X |
0.82X-4.52X |
1.05X-6.75X |
2.1X-13.5X |
|
|
50 |
1/3" |
10.67-1.78 |
7.31-1.33 |
5.71-0.86 |
2.86-0.89 |
|
|
50 |
1/2" |
|
|
7.61-1.18 |
3.81-1.19 |
|
|
50 |
2/3" |
|
|
10.48-1.63 |
5.24-1.63 |
|
|
|
|
|
|
|
|
|
2X |
|
|
0.70X-4.50X |
0 94X-6.03X |
1.40X-9.OOX |
2.80X-18.OOX |
|
|
35 |
1/3" |
8.57-1.33 |
6.40-0.99 |
4.28-0.66 |
2.14-0.33 |
|
|
35 |
1/2" |
|
|
5.71-0.89 |
2.86-0.44 |
|
|
35 |
2/3" |
|
|
7.86-1.22 |
3.93-0.61 |
The field of video is based on l/3" CCD adapter
Total magnification: Optical magnification x Digital magnification
Optical magnification: CCD adapter magnification X Auxiliary objective magnification zoom body magnification
Digital magnification: Display diagonal dimension: CCD camera plate diagonal dimension
CCD camera plate diagonal dimension: l/3" CCD:6mm; l/2" CCD:8mm; 2/3" CCD:11mm

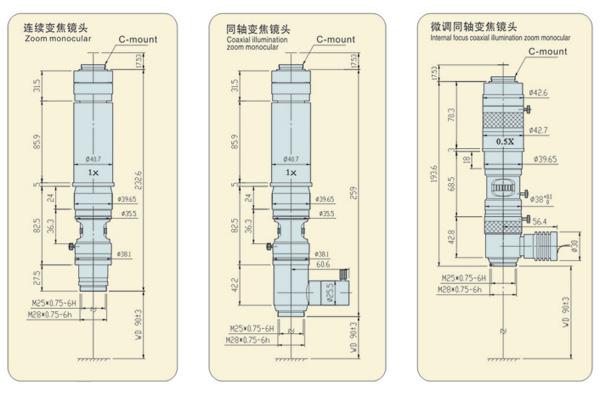

Zoom system diagram

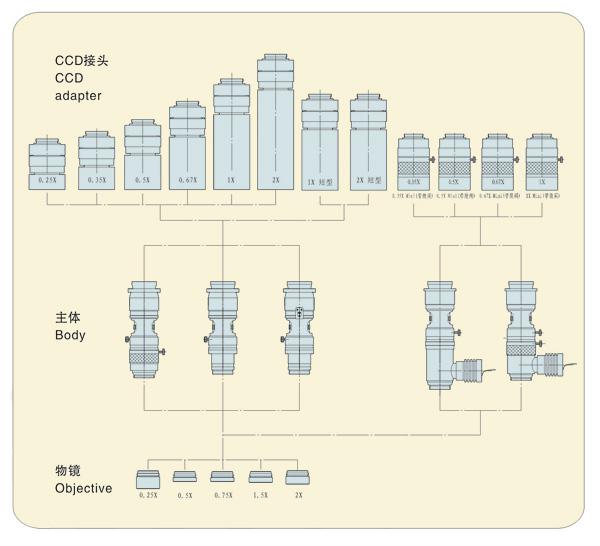

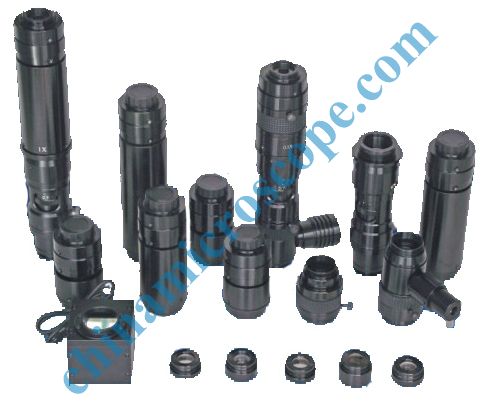

Auxiliary objective: 0.25X 0.5X 0.75X.1.5X, 2X.
CCD adapter: (1)0.5X 0.67X 1X, 2X. 5X;
(2)0.5X 0.67X 1X 2X Mini type connecting tube
Other: Ring lit source/Ring light source adapter/short C mount/Metallographic lens adapter/eyepieces/divisional eyepieces /Capture Card/CCD/Cross line division inspection plate
