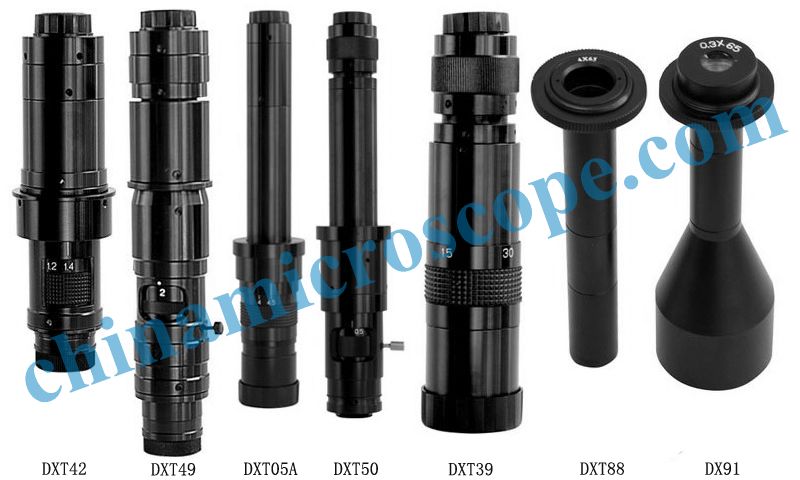

DXT42 DXT49
|
Model |
DXT42 |
|
Zoom radio |
7:1 |
|
Objectives zoom ranges |
0.2X-1.4X |
|
Working distance |
90mm |
|
Focus range |
47mm |
|
C-CCD distance of pickup device |
17.53mm |
|
available 1/2" 1/3" 2/3" CCD |
|
|
1/3"CCD，Diameter of visual field:30-43mm |
|
|
Model |
DXT49 |
|
Zoom radio |
7:1 |
|
Objectives zoom ranges |
0.65X-4.5X |
|
Working distance |
100mm |
|
Focus range |
47mm |
|
C-CCD distance of pickup device |
17.53mm |
|
available 1/2" 1/3" 2/3" CCD |
|
|
1/3"CCD，Diameter of visual field:9.3-1.3mm |
|
DXT05A DXT50
|
Model |
DXT05A |
|
|
Zoom radio |
7:1 |
|
|
Objectives zoom ranges |
0.65X-4.5X |
|
|
Working distance |
90mm |
|
|
Focus range |
47mm |
|
|
C-CCD distance of pickup device |
17.53mm |
|
|
available 1/2" 1/3" 2/3" CCD |
||
|
1/3"CCD，Diameter of visual field:9.3-1.3mm |
||
|
Model |
DXT50 |
|
|
Zoom radio |
6:1 |
|
|
Objectives zoom ranges |
0.5X-3X |
|
|
Working distance |
130mm |
|
|
Focus range |
47mm |
|
|
C-CCD distance of pickup device |
17.53mm |
|
|
available 1/2" 1/3" 2/3" CCD |
||
|
1/3"CCD，Diameter of visual field:12-2mm |
||
DXT39
|
Model |
DXT39 |
|
Zoom radio |
7.2:1 |
|
Objectives zoom ranges |
15X-100X(0.25X-1.8X) |
|
Working distance |
90mm |
|
Focus range |
47mm |
|
C-CCD distance of pickup device |
17.53mm |
|
available 1/2" 1/3" 2/3" CCD |
|
|
1/3"CCD，Diameter of visual field:24-3.33mm |
|
DXT88, DX91 Telemetric optical system monocular microscopes
|
Model |
DXT88 |
|
|
Magnification |
4X |
|
|
Working distance |
65mm |
|
|
Focus range |
47mm |
|
|
C-CCD distance of pickup device |
17.53mm |
|
|
available 1/2" 1/3" 2/3" CCD |
||
|
1/3"CCD，Diameter of visual field:1.5mm |
||
|
Model |
DX91 |
|
|
Magnification |
0.3X |
|
|
Working distance |
65mm |
|
|
Focus range |
47mm |
|
|
C-CCD distance of pickup device |
17.53mm |
|
|
available 1/2" 1/3" 2/3" CCD |
||
|
1/3"CCD，Diameter of visual field:20mm |
||
The TL Series of monocular zoom microscopes are designed for use with CCD and digital video cameras, to present an image of the material being examined to a computer or television monitor. They are high resolution, high contrast systems with a zoom ratio of 7:1. These models are used most often in manufacturing applications, but can also be utilized in education, machine vision, medical device inspection and scientific research. Although the TL20 and TL30 are illustrated on our standard TL base, they can also be adapted to a variety of Universal and Standard Frame designs.
|
TL-20 |
TL-30 |
T-20: Zoom range:0.25X-1.8X；Working distance:95mm
|
Optical system |
Zoom system |
|
Total magnification |
0.125X to 9Xdepending on objective used |
|
Zoom range |
0.25X to 1.8X |
|
Zoom ratio |
1:7 |
|
Working distance |
95mm |
|
CCD mount |
C-Mount |
|
Objective(Option) |
0.5X(W.D.=150mm),0.75X(W.D.=95mm),1.5X(W.D.=40mm),2.0X(W.D.=25mm) |
TL-30: Zoom range:0.65X-4.5X；Working distance:95mm
|
Optical system |
Zoom system |
|
Total magnification |
0.125X to 9Xdepending on objective used |
|
Zoom range |
0.25X to 1.8X |
|
Zoom ratio |
1:7 |
|
Working distance |
95mm |
|
CCD mount |
C-Mount |
|
Objective(Option) |
0.5X(W.D.=150mm),0.75X(W.D.=95mm),1.5X(W.D.=40mm),2.0X(W.D.=25mm) |
