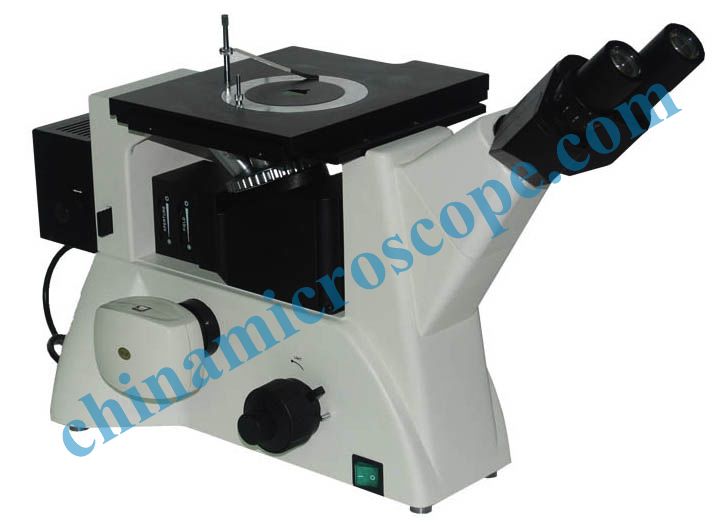

XYX-M20 Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.
Standard Configuration
|
Specification |
||
|
Eyepiece |
Wide field WF10X(field number:22mm) |
|
|
Objective |
XYX-M20 Equipped with bright field objectives |
PL L10X/0.25 (Work distance)：20.2 mm |
|
PL L20X/0.40 (Work distance)：8.80 mm |
||
|
PL L50X/0.70 (Work distance)：3.68 mm |
||
|
PL L100X/0.85£¨Dry£© (Work distance)：0.40 mm |
||
|
XYX-M20BD Equipped with bright & dark field objectives |
PL L5X/0.12 BD (Work distance)：9.70 mm |
|
|
PL L10X/0.25 BD (Work distance)：9.30 mm |
||
|
PL L20X/0.40 BD (Work distance)：7.23mm |
||
|
PL L50X/0.70 BD (Work distance)：2.50 mm |
||
|
Eyepiece tube |
Inclination angle is 45˚ and interpupillary distance is 53~75mm. |
|
|
Focus system |
Coaxial coarse/fine focus, with tension adjustable minimum division of fine focusing is 2μm. |
|
|
Nosepiece |
Quintuple (Backward ball bearing inner locating) |
|
|
Stage |
Mechanical stage overall size: 242mmX200mmand moving range : 30mmX30mm. |
|
|
Rotundity and rotatable stage size: maximal measurement is Ф130mmand minimal clear aperture is less then Ф12mm. |
||
|
Illumination system |
6V30W halogen and brightness enable control., use in XJL-20 |
|
|
12V50W halogen and brightness enable control., use in XJL-20BD |
||
|
Integrated field diaphragm , aperture diaphragm and puller type polarizer. |
||
|
Equipped with frosted glass and yellow ,green and blue filters |
||
Optional accessories
|
Name |
Sort/Technique parameter
|
NO. |
|
|
Eyepiece |
Dividing eyepiece(¦µ22mm) |
1122010 |
|
|
Objective |
PL L5X/0.12 (Work distance)：26.1 mm |
Equipped with bright field objectives |
2260105 |
|
PL L40X/0.60 (Work distance)：3.98 mm |
2260140 |
||
|
PL L60X/0.70 (Work distance)：3.18mm |
2260360 |
||
|
PL L80X/0.80 (Work distance)：1.28 mm |
2260180 |
||
|
PL L40X/0.60 BD (Work distance)：3.00 mm |
Equipped with bright & dark field objectives |
2120140 |
|
|
PL L60X/0.75 BD (Work distance)：1.90 mm |
2120160 |
||
|
PL L80X/0.80 BD (Work distance)：0.80mm |
2120180 |
||
|
PL L100X/0.85 BD (Work distance)：0.4 mm |
2120111 |
||
|
CCD Adapter |
0.5X |
812004 |
|
|
1X |
812002 |
||
|
0.5X with dividing0.1mm/Div |
812003 |
||
|
Camera
|
DV-1 Video output 380/520 TV line USB output0.42 Mpixel |
800001 |
|
|
DV-2 With USB output1.3M,2.0M,3.0Mpixel |
800003 |
||
|
DV-3 With video output 380/520 TV line |
800005 |
||
|
Digital camera adapter
|
CANON(EF) NIKON( F) |
820001 |
|
