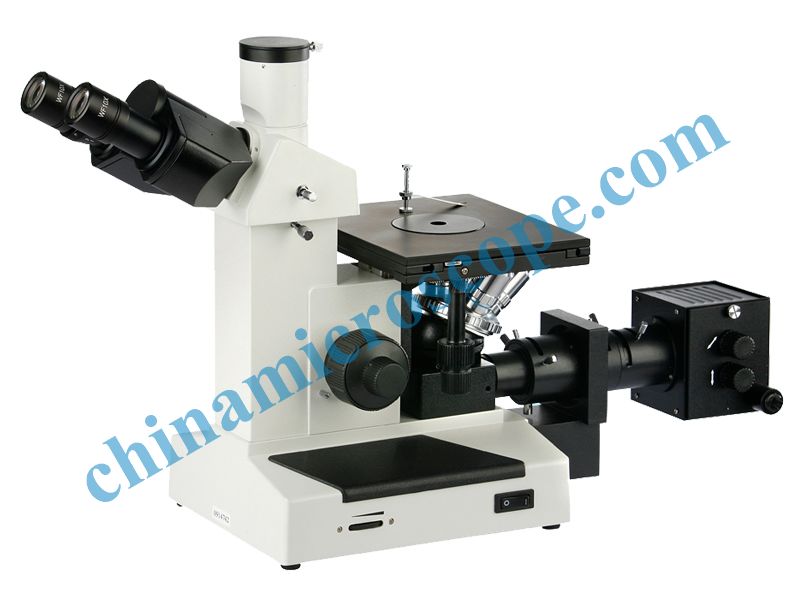

Model |
M-L-AT |
M-L-BT |
|
Eyepiece |
Wide field WF10X(µ18mm) |
|
|
Objective |
Plan achromatic objectives with long working distance (no cover glass) PL 10X/0.25 |
Achromatic objectives(no cover glass) 10X/0.25 |
|
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 |
Achromatic objectives(no cover glass) 20X/0.40 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 |
Achromatic objectives(no cover glass) SP 40X/0.65 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL 100X/1.25(Spring, oil) |
Achromatic objectives(no cover glass) 100X/1.25(Spring, oil) |
|
|
Eyepieces tube |
Trinocular, Inclination of 30˚ |
|
|
Filter |
Frosted filter |
|
|
Blue filter |
||
|
Green filter |
||
|
Yellow filter |
||
|
Focus system |
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm. |
|
|
Nosepiece |
Quadruple(Ball bearing inner locating) |
|
|
Stage |
Double layer mechanical (Size:180mmX150mm,moving range:15mmX15mm) |
|
|
Illumination unit |
6V 20W halogen lamp, brightness control. |
|
|
Optional accessories |
Sort/Technique parameter |
NO. |
|
Eyepiece |
Wide field WF16X(¦µ11mm) |
1051016 |
|
Dividing 10X(¦µ18mm) 0.1mm/Div |
1021010 |
|
|
Objective |
Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
1051016 |
|
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75(Spring) |
2250160 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) |
2250111 |
|
|
Achromatic objectives(no cover glass) 60X/0.85 |
2220160 |
|
|
Eyepieces tub |
Binocular, Inclination of 30˚ |
011008 |
|
Nosepiece |
Quintuple(Ball bearing inner locating) |
032001 |
|
Simple polarizing unit |
Polariser |
111002 |
|
Polarization analyzer |
111102 |
|
|
CCD adapter |
0.4X |
812001 |
|
0.5X |
812004 |
|
|
1X |
812002 |
|
|
0.5X with dividing0.1mm/Div |
812003 |
|
|
Camera |
DV-1 With USB & video output |
800001 |
|
DV-2 With USB output |
800003 |
|
|
DV-3 With video output |
800005 |
|
|
Photo unit |
2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
840001 |
|
4X Focusing photograph attachment |
840002 |
|
|
MD Adapter |
840003 |
|
|
PK Adapter |
840004 |
|
|
Digital camera adapter |
CANON(A610,A620,A630,A640) |
821001 |
