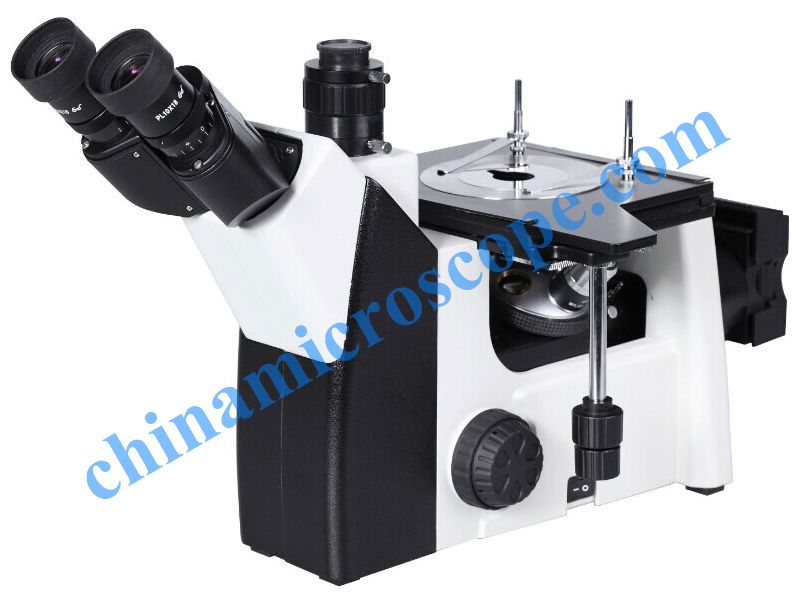

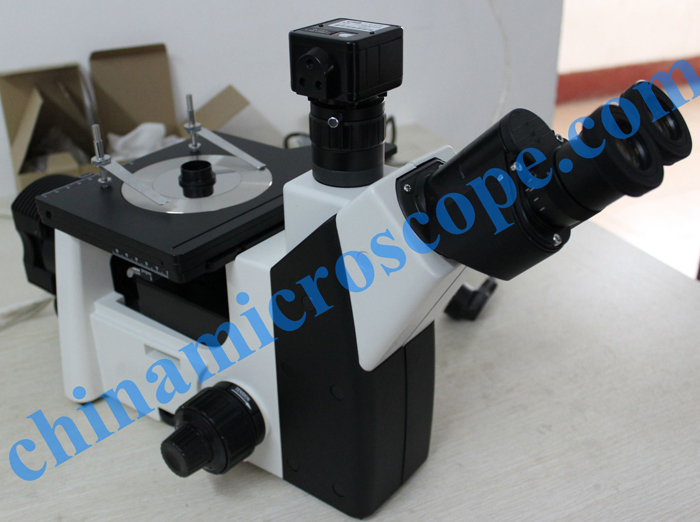

MIS-5 series Metallurgical Microscope
■ Professional metallurgical objective and plan eyepiece provide clear image, high resolution, comfortable observation
■ Superiorimage and reliable mechanical structure.

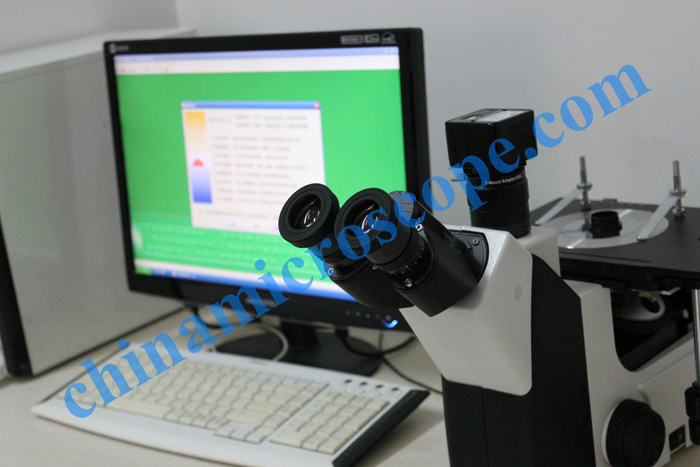

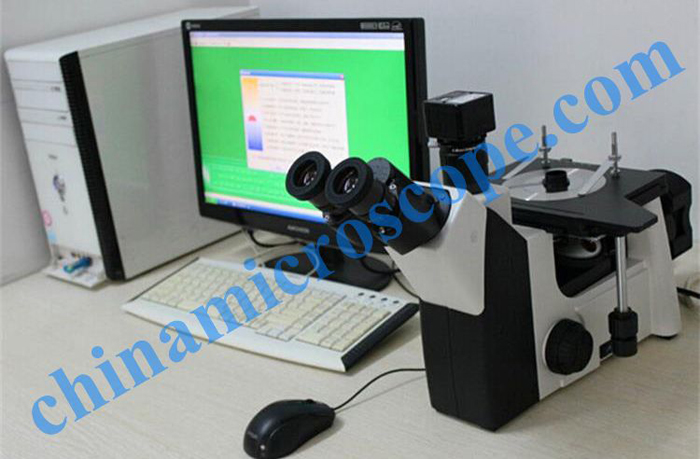

■ With the corresponding photo or video accessories, can collect and preserve the image, with computers and specialized metallographic analysis software can analysis the metallographic image.
■ Easy to operate, Have all kinds of accessories. Widely used in teaching and research metallographic analysis, semiconductor silicon wafer inspection, geology mineral analysis, precision engineering and surveying fields.
Specifications
|
Optical system |
Finity color corrected optical system |
|
Viewing head |
Trinocular，45°inclined，Diopter adjustment ±5 for each side，Interpupillary distance adjustable between：54-75mm，refract rate，binocular: trinocular =80%:20% |
|
Eyepiece |
High eyepoint wide field plan eyepiece PL10X/18mm |
|
High eyepoint wide field eyepiece WF15X/13 |
|
|
High eyepoint wide field eyepiece WF20X/10mm |
|
|
Metallurgical objective |
LWD plan achromatic metallurgical objective 5X，10X，20X，50X、100X |
|
Nosepiece |
Reversed quadruple nosepiece |
|
Reversed quintuple nosepiece |
|
|
Focusing adjustment |
Low position coaxial coarse and fine adjustment. with tightness adjustment. Coarse adjustment range38 mm；precision of fine adjustment:2um， |
|
stage |

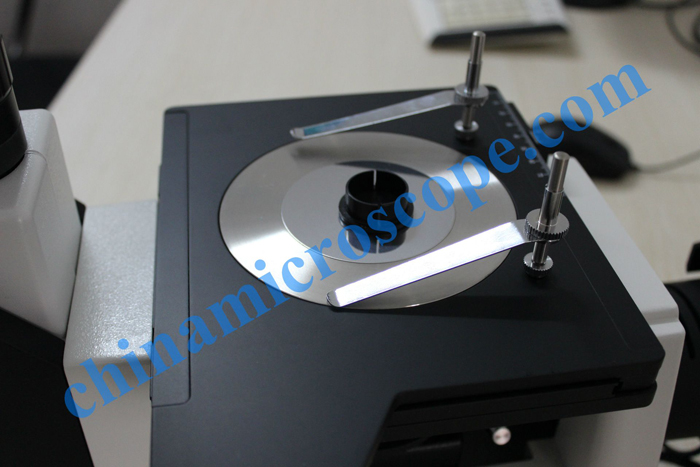

Three-ply mechanical stage，area 180mmX155mm，right hand low position control，Moving range:75mm×40mm; Metal stage plate，center hole dia.φ12mm |
|
Illumination system |
Reflection Koehler illumination with iris diaphragm and centerable field diaphragm , wide-range voltage 90-240V ，6V/30W halogen bulb(single 3W LED option), with continuous intensity |
|
Polarizing kit |
Polarizer and the analyzer can be removed from the optical path, the analyzer can be rotated 360 °. |
|
Photo accessories |
Photo tube（with PK mount），photo eyepiece 3.2X |
|
Video accessories |
CTV0.5X/1.0X |
|
software |
specialized metallographic analysis software |
