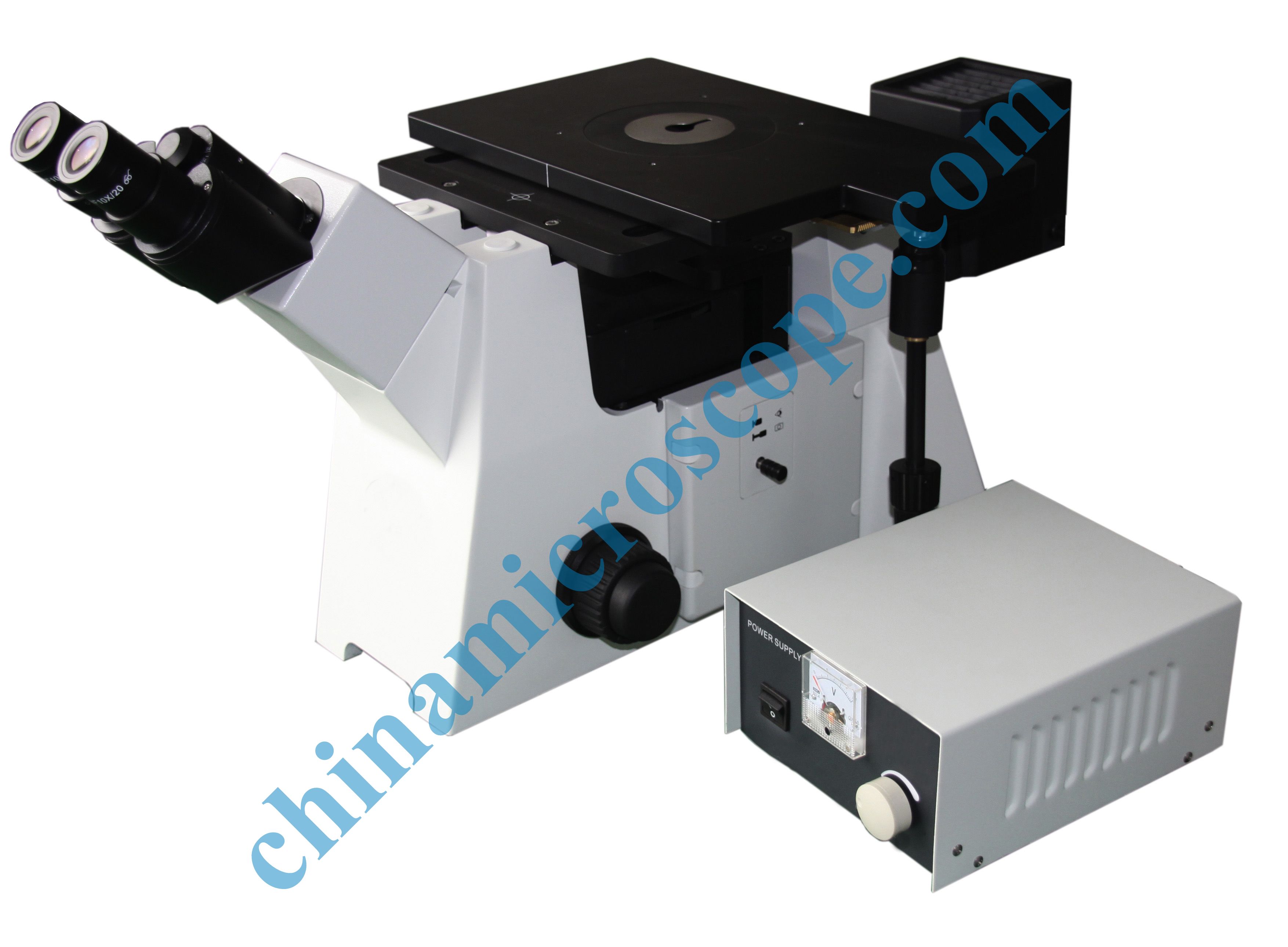

MIC-M5 Series Inverted Metallurgical Microscope
|
Parts |
Order No. |
Specification |
MIC-M5 |
|
Frame |
MIC-M5 |
Humanity Design, Stable Reliable. |
● |
|
Seidentopf |
MS1 |
Binocular Tube, Interpupillary distance 52-75mm, 45°inclined diopter adjustable. |
● |
|
MS1A |
Binocular Tube, Interpupillary distance 48-75mm, 45°inclined diopter adjustable. |
○ |
|
|
Eyepiece |
E1020PC |
Plan Eyepiece, WF10X/20, and diopter adjustable. |
●● |
|
E1022PC |
Plan Eyepiece, WF10X/22, and diopter adjustable. |
○○ |
|
|
E1614PA |
Plan Eyepiece, WF16X/14 |
○○ |
|
|
E1020RA |
Reticule Eyepiece: CROSSWF10X/20, diopter adjustable. |
● |
|
|
Objectives |
WB-P4C |
4X Infinity Plan Objectives |
○ |
|
WM-L10A |
10X Infinity Plan Objectives |
● |
|
|
WM-L20A |
20X Infinity Plan Objectives (S) |
● |
|
|
WM-P50A |
50X Metallurgical Infinity Long Work Distance Plan Objectives (S) |
● |
|
|
WM-P80B |
80X Metallurgical Infinity Long Work Distance Plan Objectives (S) |
● |
|
|
WM-P100A |
100X Infinity Long Plan Objectives (S/Oil) |
○ |
|
|
Lamp House |
DX10 |
12V100W Halogen Lamp House |
● |
|
Power Box |
DYX4 |
12V100W Halogen Power Box |
○ |
|
DYX2 |
12V50W Halogen Power Box |
● |
|
|
Stage |
ZT1 |
Fixed Stage, Size: 240mmX260mm, Movement Range: 135mmX85mm. X/Y Coaxial Flexible Knobs On The Bottom Side. |
○ |
|
ZT1-1000 |
Specimen Holder(φ118) |
● |
|
|
ZT1A |
Mechanical Stage, Size:350mm×208mm, Movement Range: 50mmX50mm. |
● |
|
|
Specimen Clamps |
YPQ1 |
Specimen Clamps |
○ |
|
Revolving Nosepiece |
ZQ580A |
Quintuple Revolving Nosepiece, |
● |
|
Illuminator |
DLST1 |
Multifunctional Reflected Light Illuminator |
● |
|
JXMKBG |
Brightfield Module |
● |
|
|
Filter |
LA3-0011 |
Blue Filter |
● |
|
LU3-0011 |
Green Filter |
● |
|
|
LH3-0011 |
Yellow Filter |
● |
|
|
LAB3-0011 |
50% Cutting Filter |
● |
|
|
Polarization Kits |
PQ2 |
Polarizer |
● |
|
PY3 |
Analyzer |
● |
|
|
C-Mount |
SX1 |
0.5X C-Mount |
● |
|
SX5 |
0.25X C-Mount(Fit 1/3'CCD) |
○ |
|
|
Illumination Bulb |
BZ-0022E |
12V50W Osram Halogen Bulb |
○ |
|
BZ-0022D |
12V50W Halogen Bulb |
●●● |
|
|
Other |
BZ-0023A |
250V/5AΦ5X20 Fuse |
●●● |
|
OMMM |
Metallurgical Micrometer |
● |
|
|
DLSS1-0029 |
Diaphragm Adjusting Handle |
●● |
|
|
BZ2-0018 |
φ2mmAllen Screw Driver |
● |
|
|
BZ1-0018 |
φ2.5mmAllen Screw Driver |
● |
|
|
BZ1-0018A |
φ3mmAllen Screw Driver |
● |
|
|
BZ-0021 |
Power Cord |
● |
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological
advances, we have reserved the right to
make design modification and changes
without notice.
