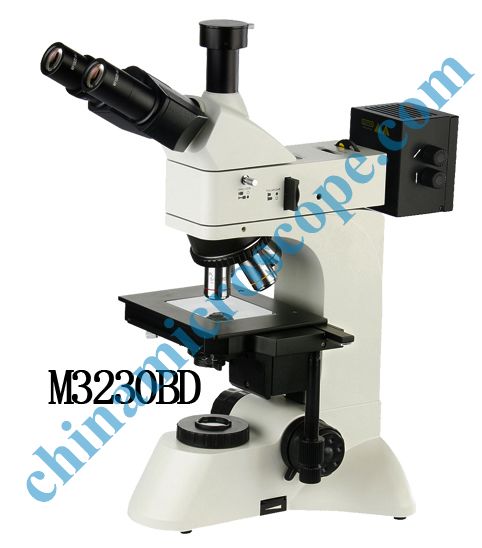

XYX-M3230BD upright bight or dark transmitted or reflected light metallurgical microscope is a multi-purpose industrial inspection optical instrument. It is equipped with bright or dark field objectives, wide field eyepieces and integrated polarization observation device, the Kohler illuminator is used in the transmitted and reflected illuminating system, the whole field is clear and uniformity. It is suitable for inspecting, such as semiconductor silicon wafer, LCD floor plate, electrocircuit plate, solid powder and all kind of industry sample that translucent or opaque. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc.
Features
1. Adopt infinity optical system and modularization function design.
2. Long W.D bright or dark field plan objectives (no cover glass), the field of view is widely and clear.
3. Wide-field plan eyepieces: field number Ф22mm.
4. Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

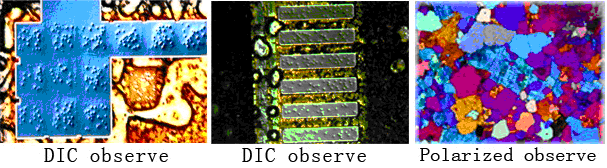

4. Integrated polarization observation device, the polarizer can be circumrotated for 360°.
5. The Epi-illumination is 12V 50W halogen lamp and the lamp box cover can be revolved, replacing lamp facility and safety. The transmitted illumination is 12V 30W halogen lamp and adding radiator.
6. Trinocular
can be observation for eyepieces and microphotography in 100% light flux, suits
for dark field microphotography.
Technical
specifications (standard)
Eyepiece
10X
wide field plan eyepiece and field of view number is Φ22mm, the eyepiece interface
is Ф30mm
Infinity
plan achromatic objectives

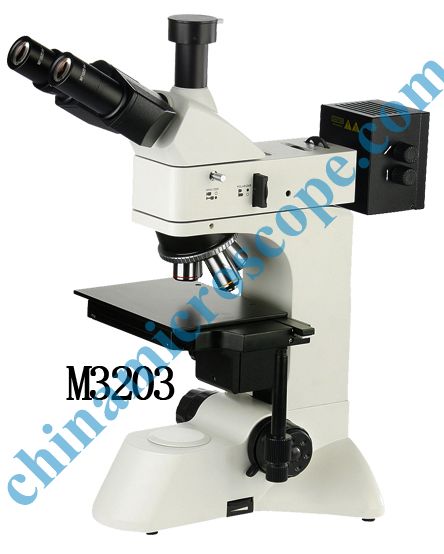

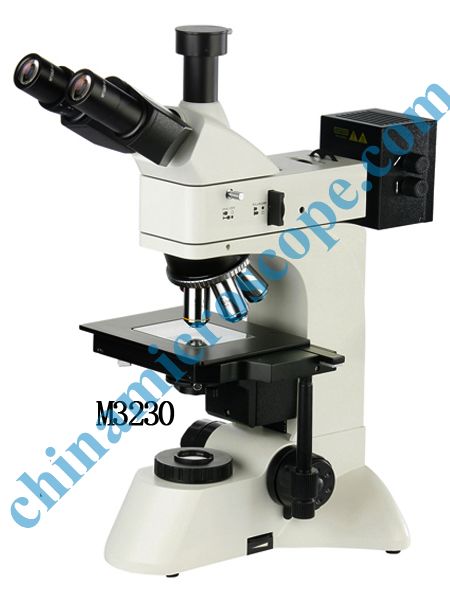

M3230/
M3203
Equipped
bright field objective
PL
L5X/0.12 working distance：26.1 mm
PL
L10X/0.25 working distance：20.2 mm
PL
L20X/0.40 working distance：3.98 mm
PL
L50X/0.70 working distance：3.18 mm
M3230BD
Equipped
with dark/bright field objective
PL
L5X/0.12 BD working distance：9.70 mm
PL
L10X/0.25BDworking distance：9.30 mm
PL
L20X/0.40 BD working distance：7.2mm
PL
L50X/0.70 BD working distance：3.0 mm
Eyepiece
tube
Trinocular
inclined 30˚, pupil separation 53~75 mm.
Focusing
system
Coaxial
coarse/fine focus system, with tension adjustable device, minimum division of
fine focusing: 2.0μm.
Nosepiece
Quintuple
(Backward ball bearing inner locating)
Stage
Mechanical
stage，overall size：210mmX140mm，moving
range: 75mmX50mm
Illumination
system
M3230/
M3203
6V30W
halogen and brightness enable control.
M3230BD
12V30W halogen
and brightness enable control for transmission illumination.
12V50W
halogen and brightness enable control for reflecting illumination.
Integrated
field diaphragm, aperture diaphragm and puller type polarizer.
Equipped
with ground glass and yellow ,green and blue filters
Optional
Accessory
Eyepiece
Dividing
eyepiece(Φ22mm)
Objective
M3230/
M3203
Bright
field objective 20X、50X、80X、100X(Dry)
M3230BD
Bright&dark
field objective 50X、60X、80X、100X
CCD
adapter
0.5X、1X、0.5X（with dividing）
Camera
Usb
output1.3M、3.0M、5.0M、10Mpixel
Digital
camera adapter
Cannon（EF） Nikon（F）
