Features
1. With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
2. Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
3. 6V 20W halogen lamp, adjustable brightness.
4. Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port
Standard Configuration
|
Model |

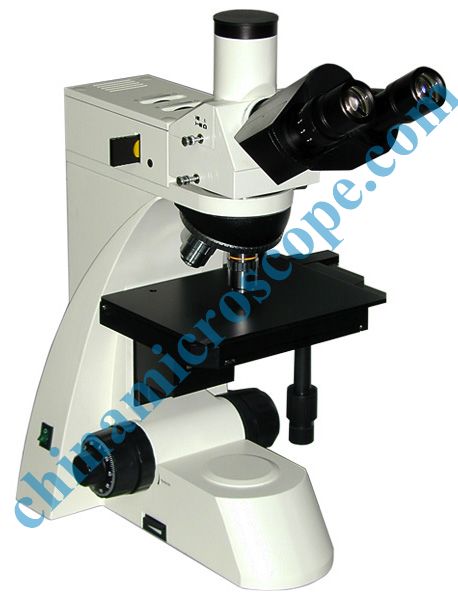

XYX-M3003 |
|
Eyepiece |
Wide field WF10X(18mm) |
|
Objective |
Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
|
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70 |
|
|
Eyepieces tube |
Trinocular,Inclination of 30˚, (Analyzer with field diaphragm to switch) |
|
Vertical illumination unit |
6V 20W, Halogen lamp, Adjustable brightness |
|
Vertical illumination With field diaphragm ,aperture diaphragm and polarizer,(Y,B,G)filter and Ground glass |
|
|
Focus system |
Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm. |
|
Nosepiece |
Quadruple Backward ball bearing inner locating |
|
Stage |
Double layer mechanical ( Size: 210mmX140mm,movingrange:75mmX50mm) |
Optional accessories
|
Name |
Sort/Technique parameter |
NO. |
|
Eyepiece |
Wide field WF16X(µ11mm) |
1051016 |
|
Dividing 10X(µ18mm)0.1mm/Div |
1121010 |
|
|
Objective |
Plan achromatic objectives with long working distance (no cover glass) PL L 40X/0.60 |
2250140 |
|
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring) |
2250160 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L 80X/0.80 |
2250180 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) |
2250111 |
|
|
Plan achromatic objectives (no cover glass) PL 100X/1.25(Spring, oil) |
2240111 |
|
|
Nosepiece |
Quintuple Backward ball bearing inner locating |
032002 |
|
CCD adapter |
0.4X |
810001 |
|
0.5X |
810004 |
|
|
1X |
810002 |
|
|
0.5X with dividing0.1mm/Div |
810003 |
|
|
Camera |
DV-1 With USB & video output |
800001 |
|
DV-2 With USB output |
800003 |
|
|
DV-3 With video output |
800005 |
|
|
Photo unit |
2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
840001 |
|
4X Focusing photograph attachment |
840002 |
|
|
MD Adapter |
840003 |
|
|
PK Adapter |
840004 |
|
|
Digital camera adapter |
CANON(A610,A620,A630,A640) |
820001 |
