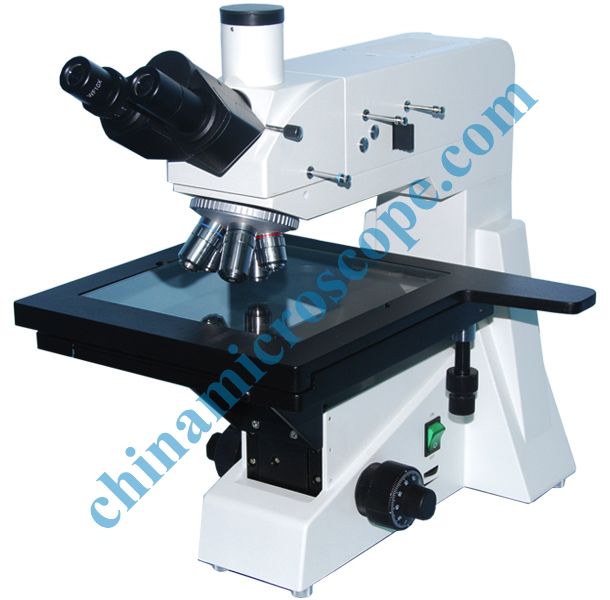

XYX-M101 series reflected metallurgical microscopes are suitable to observe the microscopical surfaces of non-transparent object. They are equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. They have clear and high-contrast picture beautiful sculpt, convenient control and etc. they are the ideal instrument in research work in metallography, mineralogy, precision engineering, electronics and etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.

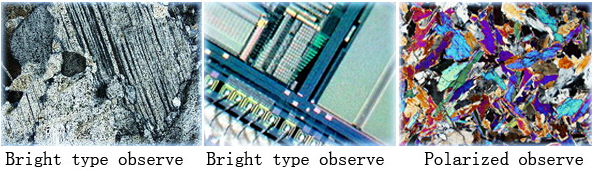

Features
1. With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.


2. With large move range mechanical stages, can move quickly and slowly.

3. Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 0.7μm.

4. 6V 20W halogen lamp, adjustable brightness.

5. Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.

Standard Configuration

Model

XYX-M101

XYX-M101A

Eyepiece

Wide field  WF10X(18mm)

Objective

Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12

Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25

Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40

Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60

Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80

Eyepieces tube

Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch)

Vertical illumination unit

6V 20w halogen lamp, brightness control.

Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter

Focus system

Stage adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.7μm.

Nosepiece

Quintuple(Frontward ball bearing inner locating)

Stage

Three layer mechanical

Size:250mmX230mm,movingrange:154mmX154mm

Three layer mechanical
Size:280mmX270mm,movingrange:204mmX204mm

Optional accessories

Name

Sort/Technique parameter

NO.

Eyepiece

Wide field  WF16X(¦µ11mm)

1051016

Dividing  10X(¦µ18mm) 0.1mm/Div

1021010

Objective

Plan achromatic objectives with long working distance (no cover glass) PL L 50X/0.70

2250150

Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring)

2250160

Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring)

2250111

Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil)

2240111

CCD adapter

0.4X

810001

0.5X

810004

1X

810002

0.5X with dividing0.1mm/Div

810003

Camera

DV-1 With USB & video output

800001

DV-2 With USB output

800003

DV-3 With video output

800005

Photo unit

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

840001

4X Focusing photograph attachment

840002

MD Adapter

840003

PK Adapter

840004

Digital camera adapter

CANON(A610,A620,A630,A640)

820001
