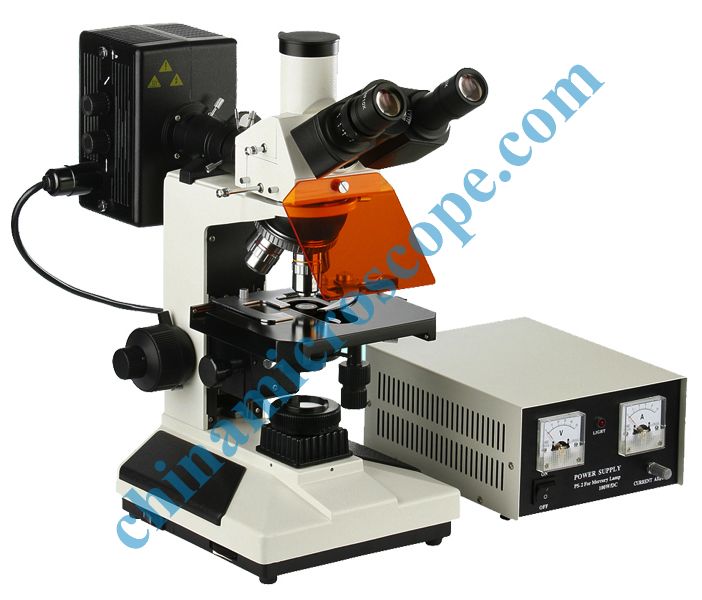

Model |
L2001A |
L2001B |
|
Eyepiece |
Wide field WF10X(µ20mm) |
|
|
Objective |
Plan achromatic objectives PL 4X/0.10 |
Plan achromatic objectives PL 4X/0.10 |
|
Plan achromatic objectives PL 10X/0.25 |
Plan achromatic objectives PL 10X/0.25 |
|
|
|
Plan achromatic objectives PL 20X/0.40 |
|
|
Plan achromatic objectives PL 40X/0.65(Spring) |
Plan achromatic objectives PL 40X/0.65(Spring) |
|
|
Plan achromatic objectives PL 100X/1.25(Spring, oil) |
Plan achromatic objectives PL 100X/1.25(Spring, oil) |
|
|
Fluorescence objectives FL 25X/0.65 |
||
|
Fluorescence objectives FL 40X/1.00 (Spring, Glycerin) |
||
|
Eyepiece tube |
Trinocular (Inclination of 30˚) |
|
|
Focus system |
Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm. |
|
|
Nosepiece |
Quadruple(Backward ball bearing inner locating) |
Quintuple (Backward ball bearing inner locating) |
|
Stage |
Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm) |
|
|
Abbe condenser |
N.A.1.25Rack & pinion adjustable |
|
|
Filter |
Blue filter |
|
|
Frosted filter |
||
|
Collector |
For halogen lamp |
|
|
Light source |
6V 20W Halogen lamp with brightness control |
|
|
Reflected fluorescence system |
Mercury lamp house 100W/DC |
|
|
Power supply unit:AV:110V or 220V |
||
|
Fluorescence filter system B exciton wavelength:420~485nm |
||
|
Fluorescence filter system G exciton wavelength:460~550nm |
||
|
Optional accessories |
Sort/Technique parameter |
NO. |
|
|
Eyepiece |
Wide field WF16X(µ11mm) |
1051016 |
|
|
Dividing 10X(µ20mm),0.1mm/Div |
1120010 |
||
|
Objective |
Plan achromatic objectives PL 5X/0.12 |
2040105 |
|
|
Fluorescence objectives FL 100X/1.25 (Spring, Glycerin) |
2600111 |
||
|
Filter |
Green filter |
115002 |
|
|
Yellow filter |
115003 |
||
|
Fluorescence power supply |
100W fluorescence power supply(Wide voltage range and constant power and calculagraph) |
100003 |
|
|
Reflected fluorescence system |
Fluorescence filter system UV exciton wavelength:330~400nm |
115103 |
|
|
Fluorescence filter system V exciton wavelength:395~415nm |
115104 |
||
|
Phase contrast unit |
Eyepiece |
Centering telescope |
110001 |
|
Objectives |
Phase contrast plan achromatic 10X/0.25 PHP |
2420110 |
|
|
Phase contrast plan achromatic 20X/0.40 PHP |
2420120 |
||
|
Phase contrast plan achromatic 40X/0.65 PHP(Spring) |
2420140 |
||
|
Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) |
2420111 |
||
|
(PH-¢ñ) Turnplate phase contrast condenser |
052001 |
||
|
(PH-¢ò) Turnplate phase contrast condenser |
052004 |
||
|
Flashboard phase contrast condenser |
052002 |
||
|
Pull board phase contrast condenser |
052003 |
||
|
CCD adapter |
0.4X |
810001 |
|
|
0.5X |
810004 |
||
|
1X |
810002 |
||
|
0.5X with dividing0.1mm/Div |
810003 |
||
|
Camera |
DV-1(With USB & video output) |
800001 |
|
|
DV-2(With USB output) |
800003 |
||
|
DV-3(With video output) |
800005 |
||
|
Digital camera adapter |
CANON digital camera adapter(A610,A620,A630,A640) |
820001 |
|
|
Photograph unit |
2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
840001 |
|
|
4X Focusing photograph attachment |
840002 |
||
|
MD Adapter |
840003 |
||
|
PK Adapter |
840004 |
||
