MIC-FM inverted fluorescent, metallurgical microscope
Introduction:

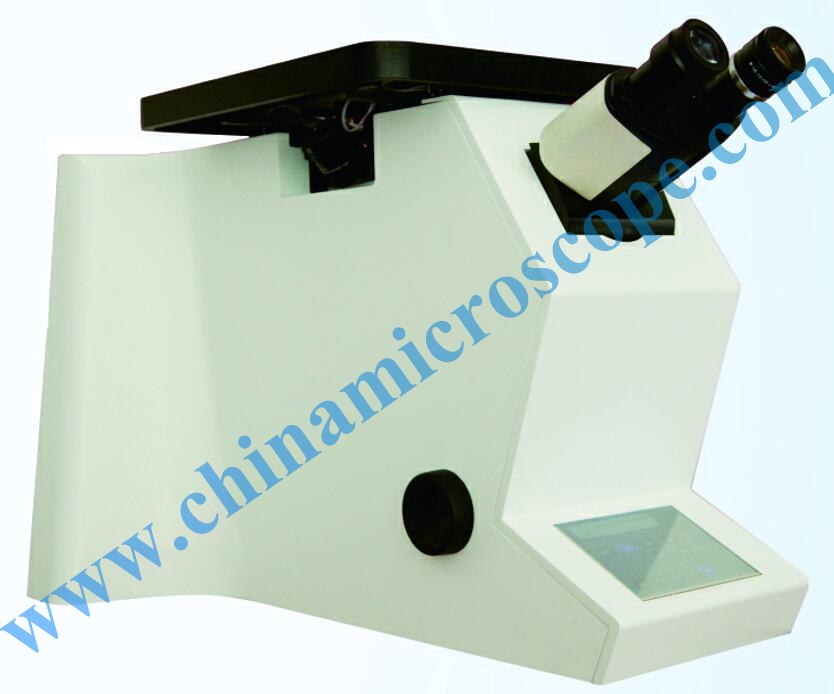

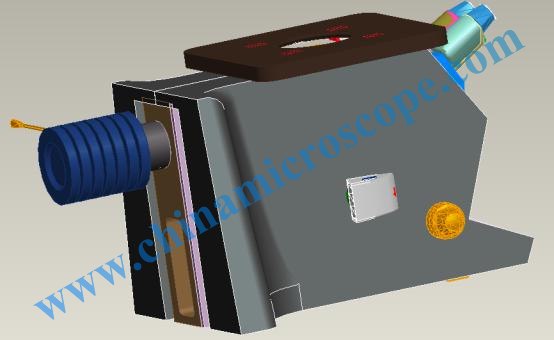

MIC-FM serials microscope is a fully motor-driven multipurpose transmitting fluorescent biological metallurgical microscope.
MIC-FMT（Fully motor-driven,including motor-driven Z-drive ）
MIC-FMB : Manual
This microscope can be widely used in each industry, mainly for research on the cell in the Petri dishes and bottles, tissue culture, sediment with transmitting and reflecting light, can be applied in bright field, dark field, phase contrast, DIC, polarizing, fluorescence filed.
MIC-FM serials microscope is ideal instrument for living cell micro working.
Main stand can be connected to a serials tools for your micro operation. With different light source and incubator
Inverted model, LD condenser with movable stage offers sufficient space for the sample or sample plate.
This microscope can be applied to DSLR adapter, easy to attache fluorescence, or fluorescence laser scanning con-focal device and other accessories.
MIC-FM microscope can offer two camera or TV mount according to customer’s different application.
ICS optical design for the image output.
High thermal and mechanical stability

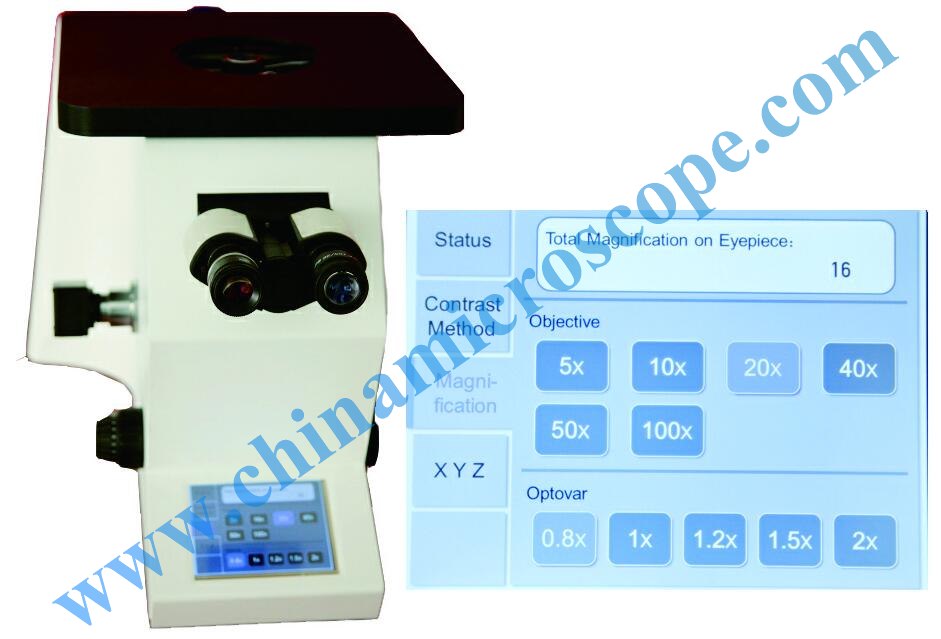

Ergonomic design, tilting head, instrument specification LCD touch screen or can connected to TFT screen, easy to get outcome.
Eyepiece WF10X/23MM
Light control, reflecting controller
־ six points motor-driven digital nonspiece.
־ eight points motor-driven digital fluorescence turret (can be fixed or taken out)
־ five points filter wave length turret
־ five points motor-driven digital zoom turret
־ motor-driven aperture diaphragm and motor-driven filed grating
־ HAL 100, HBO100, HBO 50 illumination
־ all functions of microscope is motor-driven （Z1）
Motor-driven; Coding system can be read by computer; LCD display
CAN; RS232; USB; Out fixed shutter mount; Shutter trigger mount
Optical management; Observation method management
Motor-driven, stepper motor driven (Z axis 50nm)

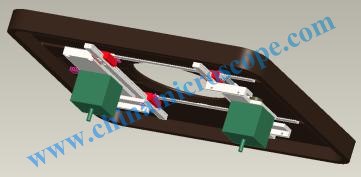

Stage X ,Yaxis stepper motor driven (XY axis 10-0.2μ,press button to focus automatically. )
Automatic identification system nosepiece; Automatic identification system reflecting light turret
Automatic identification system zoom turret; Automatic identification system filter turret

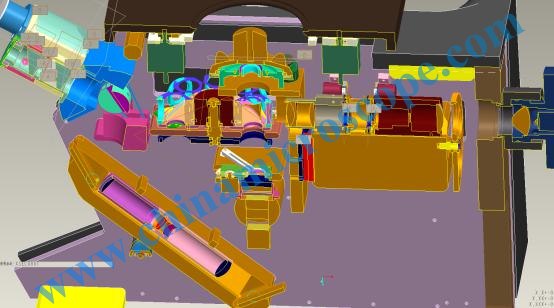

System optical scheme

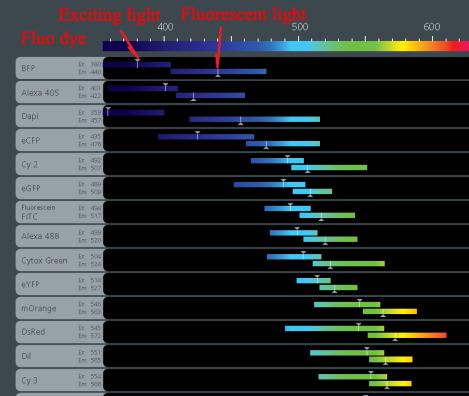

Fluorescent Illumination
|
Filter module number |
Exciter |
Exciter range |
Dichroic splitter |
Cut filter |
|
A D E4 H3 I3 K3 L4 M2 N2.1 TX G/R
B/G/R |
UV-light UV-purple light Blue light Blue light Blue light Blue light Blue light Green light Green light Green light Blue Green light
UV/blue/green light
|
BP340-380 BP355-425 BP400-450 BP420-490 BP450-490 BP470-490 BP450-490 BP546/14 BP515-560 BP530-595 BP490/20 BP575/30 BP400/20 BP495/15 BP570/30 |
RKP400 RKP455 RKP455 RKP510 RKP510 RKP510 RKP510 RKP580 RKP580 RKP600 RKP505 RKP600 RKP415 RKP510 RKP590 |
LP425 LP470 LP470 LP515 LP515 LP515 BP515-560 LP590 LP590 LP615 BP525/20 BP635/40 BP530/30 BP640/40 BP610/75 |
Z-drive spec
|
Description |
Blacklash ＜0.2μm |
|
Coarse adjustment torque: 10Ncm+/-1Ncm |
|
|
Fine adjustment torque: 0.7Ncm+/-（0 ~0.2）Ncm |
|
|
Locking force: 5N+2N |
|
|
descending speed: ＜0.5μm /2min @ 2kg weights |
|
|
Focusing bounce-back＜3μm @ 2.5N |
|
|
Focusing range: 11mm+/-1mm |
|
|
Focusing toruqe: 110N-120N |
|
|
Resolution:0.002mm |
Stage
|
Description |
flatness≤0.05mm @ 120*50mm, for other area ≤0.1mm |
|
XY knobs torque in X-direction 1.2+/-0.3Ncm, torque in Y-direction 1.5-1.8Ncm |
|
|
Travel range: 76*52mm min for limit stop, 76*63mm min for no limit stop |
|
|
Travel parallelism: E/W≤0.026mm @ 40mm, N/S≤0.013mm @20mm |
|
|
Distance between slide and stage during travel: -0.1~+0.1mm |
|
|
Rotating angle: total angle 115°+/-2°, clockwise 110°+/-1°counterclockwise: 5°+/-1 for rotatable stage |
|
|
Focus fluctuation: 0.020mm max. when rotating for rotatable stage |

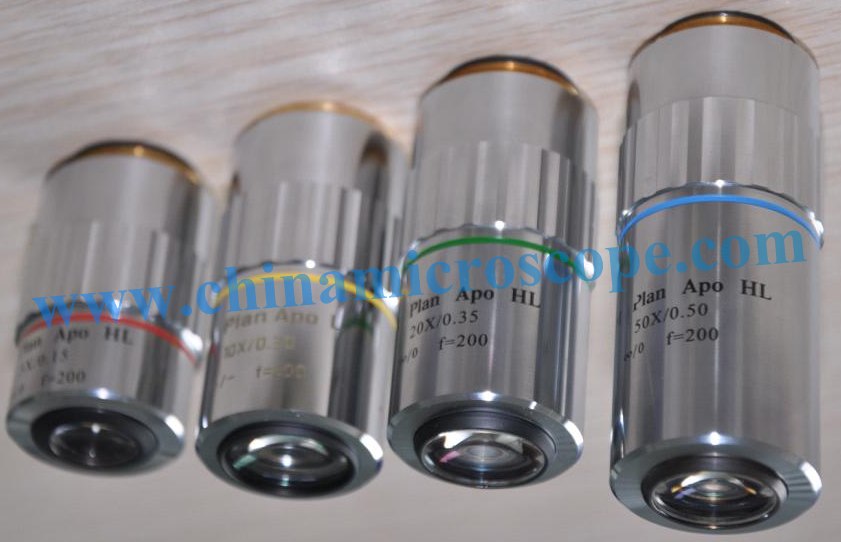

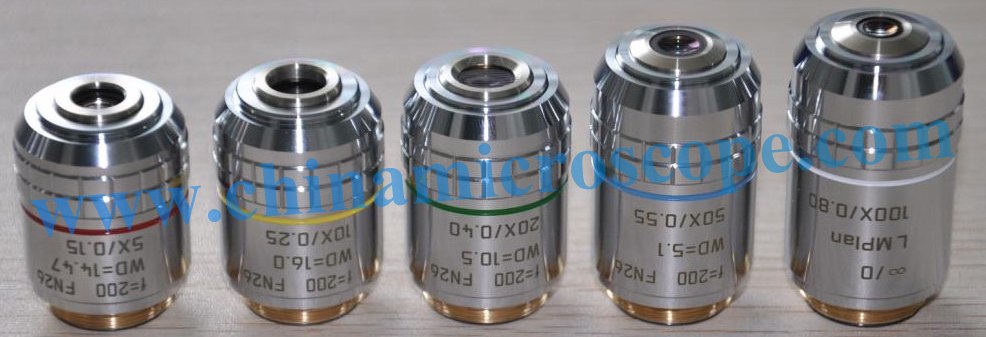

Plenty Objective for different application:
M plan Apo f=200/∞ 95mm
|
|
5X |
10X |
20X |
50X |
|
|
Numerical Aperture,N.A |
0.15 |
0.3 |
0.35 |
0.5 |
|
|
Focal length,f'(mm) |
40 |
20 |
10 |
4 |
|
|
Resolving Power,R(um) |
2.3 |
1 |
1 |
0.6 |
|
|
Depth of Focus,±ΔP(um) |
15 |
3.5 |
3.5 |
1.1 |
|
|
Working Dist,W.D.(mm) |
44 |
34 |
29 |
17 |
|
|
F.N |
Eyepiece,Φ24(mm) |
4.8 |
2.4 |
1.2 |
0.48 |
|
2/3"CCD V×H(mm) |
1.76×1.32 |
0.88×0.66 |
0.44×0.33 |
0.176×0.132 |
|
|
1/2"CCD V×H(mm) |
1.28×0.96 |
0.64×0.48 |
0.32×0.24 |
0.128×0.096 |
|

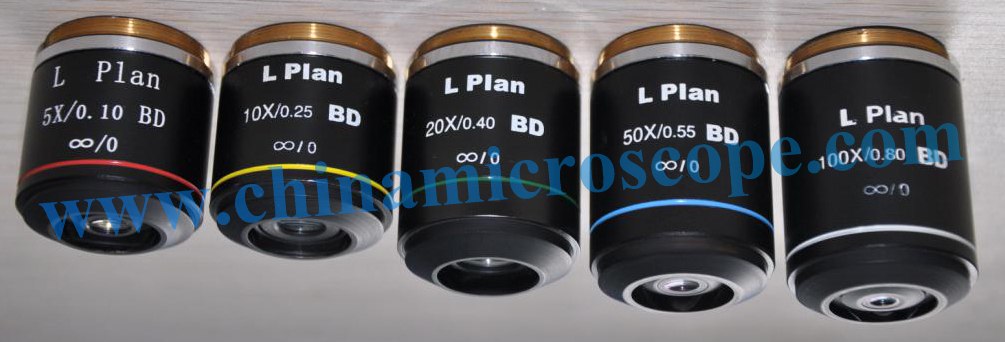

Long Working Distance Plan Achromatic (Infinite)BD (Bright field/Dark field)
|
MIC-W8BD-5X |
M plan Achromatic 5X |
N.A=0.1 W.D=14.47mm |
|
F.N:Φ24 Cover glass thickness:-- |
||
|
MIC-W8BD-10X |
M plan Achromatic 10X |
N.A=0.25 W.D=16mm |
|
F.N:Φ24 Cover glass thickness:-- |
||
|
MIC-W8BD-20X |
M plan Achromatic 20X |
N.A=0.4 W.D=10.5mm |
|
F.N:Φ24 Cover glass thickness:0 |
||
|
MIC-W8BD-40X |
M plan Achromatic 40X |
N.A=0.6 W.D=5.4mm |
|
F.N:Φ24 Cover glass thickness:0 |
||
|
MIC-W8BD-50X |
M plan Achromatic 50X |
N.A=0.55 W.D=5.1mm |
|
F.N:Φ24 Cover glass thickness:0 |
||
|
MIC-W8BD-100X |
M plan Achromatic100X |
N.A=0.8 W.D=3.01mm |
|
F.N:Φ24 Cover glass thickness:0 |
Long Working Distance Metallurgical Plan Achromatic (Infinite)
|
MIC-W8-5X |
M plan Achromatic 5X |
N.A=0.15 W.D=14.47mm |
|
F.N:Φ24 Cover glass thickness:-- |
||
|
MIC-W8-10X |
M plan Achromatic 10X |
N.A=0.25 W.D=16mm |
|
F.N:Φ24 Cover glass thickness:-- |
||
|
MIC-W8-20X |
M plan Achromatic 20X |
N.A=0.4 W.D=10.5mm |
|
F.N:Φ24 Cover glass thickness:0 |
||
|
MIC-W8-40X |
M plan Achromatic 40X |
N.A=0.6 W.D=5.4mm |
|
F.N:Φ24 Cover glass thickness:0 |
||
|
MIC-W8-50X |
M plan Achromatic 50X |
N.A=0.55 W.D=5.1mm |
|
F.N:Φ24 Cover glass thickness:0 |
||
|
MIC-W8-100X |
M plan Achromatic 100X |
N.A=0.8 W.D=3.01mm |
|
F.N:Φ24 Cover glass thickness:0 |

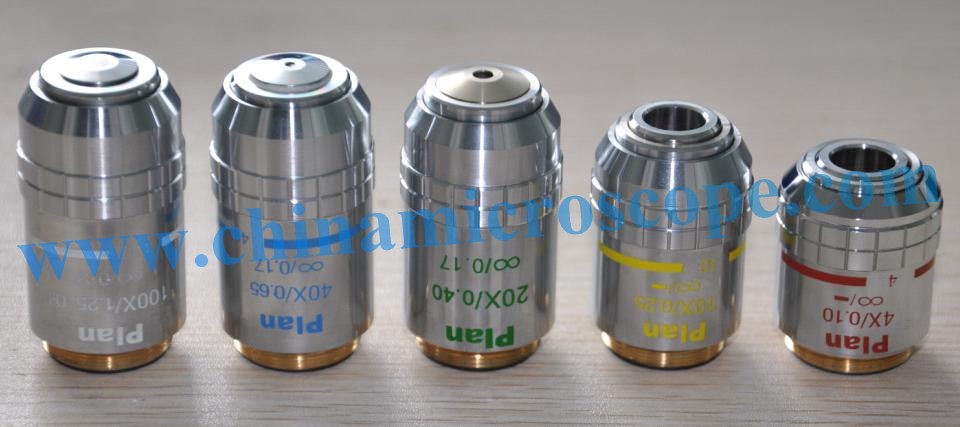

Biological Plan Achromatic (Infinite)
|
MIC-W3-4X |
Plan Achromatic 4X |
N.A=0.1 W.D=29.4mm Depth of field:115 |
|
F.N:Φ24 Cover glass thickness:-- |
||
|
MIC-W3-10X |
Plan Achromatic 10X |
N.A=0.25 W.D=16.0mm Depth of field:18.4 |
|
F.N:Φ24 Cover glass thickness:-- |
||
|
MIC-W3-20X |
Plan Achromatic 20X |
N.A=0.40 W.D=3.0mm Depth of field:6 |
|
F.N:Φ24 Cover glass thickness:0.17 |
||
|
MIC-W3-40X |
Plan Achromatic40X |
N.A=0.65 W.D=0.63mm Depth of field:2 |
|
F.N:Φ24 Cover glass thickness:0.17 |
||
|
MIC-W3-100X |
Plan Achromatic 100X |
N.A=1.25(oil) W.D=0.35mm Depth of field:0.7 |
|
F.N:Φ24 Cover glass thickness:0.17 |
Polarizer specification
|
Description |
Polarization direction: 0/-0.5° |
|
Repeatability of polarization direction: ＜0.5° |
Analyzer spec
|
Description |
Polarization direction: 90°+/-0.5° |
|
Repeatability of polarization direction: ＜0.3° |
|
|
Adjusting range: 180°+/-0.5° |
|
|
Image fluctuation when installation: TBC |
|
|
Image fluctuation when rotation≤0.2mm |
|
Type |
Specification |
||
|
Overall spec |
Functional spec |
Application level |
Research-level |
|
Objective function |
Plan&achromatic, oil |
||
|
Contrast method |
Dark,bright,FL, DIC,Pol,PH |
||
|
Illumination function |
TI,II,LED |
||
|
Observe function |
Wide FOV |
||
|
Stage function |
Auto Controls |
||
|
Focusing function |
Auto focusing-drive, coarse and fine |
||
|
Assistant function |
CDA |
||
|
Extendable function |
Camera compatible |
||
|
Performance spec |
Objective performance |
PLAN 4X NA=0.10;10X,NA=0.25;20X,NA=0.40 N PLAN 40X,NA=0.65;100X,NA=1.25 oil |
|
|
Illumination performance |
CL/PH 0.9 1.25 oil CLP/PH 0.85 ,LED 4500K |
||
|
Observe performance |
Eyepiece: 10X/20,10X/22 |
||
|
Stage performance |
X direction≥60 mm;Y direction≥60 mm |
||
|
Focusing performance |
Distinguish ability: 0.0005-0.00005 mm, Adjusting range: 10mm |
||
|
Life time |
10 years |
||
|
Other |
TBC |
||
|
Component spec |
Major optical system |
Objective |
|
|
Condenser |
|
||
|
Illumination |
|
||
|
LED |
|
||
|
Eyepiece |
|
||
|
Mechanical system |
Stage |
|
|
|
Stand |
|
||
|
Z-drive |
|
||
|
Objective turret |
|
||
|
Camera module |
|
||
|
Incident illumination module |
Industry axis |
|
|
|
Polarization axis |
|
||
|
Florescent axis |
|
||
|
Electric system |
TBC |
||
|
Software system |
TBC |
||
|
Accessories |
|
||
