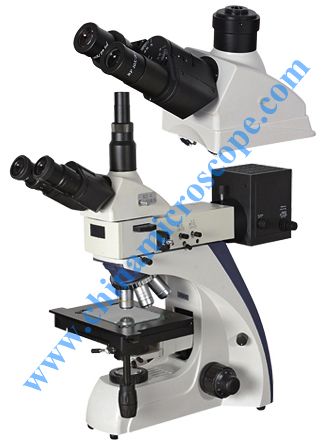

This equipment can be used in observation, analysis and research of Metallurgy, Mineral, Crystal, Micro-electronics and it is the first choice for the factories, universities, research institutions and electronic industry. It is adopted 2 kinds of illumination of reflection and transmission and also equipped with Epi-illumination Polarization devices. Under the reflected light, it can proceed Bright field and Polarizing observation. And it can also proceed Bright field observation under transmitted illumination. Stable, high-quality optical systems meet your requirement of high image quality, square-built body represents more rigid, T-shaped design gives you a more stable base. Humanized configuration design and convenient operation, Let you release form the pressure of heavy work. Let you devote experiment with entire energy.
|
Specification |
Model |
|||
|
XJP-159B |
XJP-159T |
|||
|
Viewing Head |
Compensation Free Binocular Head Inclined at 30°（48mm-75mm） |
● |
|
|
|
Compensation Free Binocular Head Inclined at 30°（48mm-75mm） |
|
● |
||
|
Eyepiece |
Super wide field WF10×/22mm |
● |
● |
|
|
Nosepiece |
Infinity Plan metallurgical objective
|
5×/0.1W.D.29.4mm |
● |
● |
|
10×/0.25W.D.16mm |
● |
● |
||
|
20×/0.4W.D.10.6mm |
● |
● |
||
|
40×/0.55W.D.5.1mm |
● |
● |
||
|
Stage |
Double layer mechanical stage |
● |
● |
|
|
Stage Size:180mm×160mm |
||||
|
Moving Range：80mm×50mm |
||||
|
Condenser |
N.A.1.25 Abbe Condenser with irisdiaphragm ＆filter |
● |
● |
|
|
Focusing |
Coaxial coarse ＆fine focusing adjustment With rack and pinion mechanism.Fine focusing scale value 0.002mm
|
● |
● |
|
|
Light Source |
Epi-Kohler illumination with aperture iris diaphragm and Field iris diaphragm, 12V/30W.AC85V230V Adjustable Brightness |
● |
● |
|
|
Transmission illumination 12V/30W.AC85V230V Adjustable Brightness |
● |
● |
||
|
Polarizing Device |
Analyzer rotatable360,°Polarizer ＆ Analyzer can be moved in/out of the optical path |
● |
● |
|
|
Filter |
Flashboard type filters(green ,blue neutral) |
● |
● |
|
|
Checking Tool |
0.01mm Micrometer |
● |
● |
|
|
Optional Accessory |
Positive compensation free trinocular head,inclined at 30° |
|||
|
Two dimensional(2D) measuring software |
||||
|
micrometer eyepiece |
||||
|
1.3Mega、2.0 Mega、3.0 Mega,5.0 Mega pixels CMOS Digital camera eyepiece |
||||
|
Photography attachmentand CCD Adapter 0.5×、0.57×、0.75× |
||||
|
Infinity Plan metallurgical objective: 50×/0.55W.D.5.1mm，80×/0.75W.D.4mm、100×/0.8W.D.3mm |
||||
|
Planishing tool |
||||
|
CCD Camera, colour1/3″High resolution 770 TV lines |
||||
