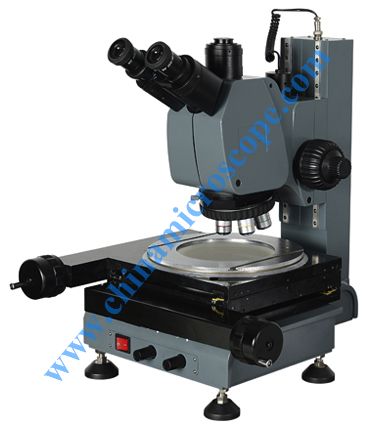

Specification |
|
|
Optical system |
infinite optical system |
|
Viewing Head |
Positive Compensation free head inclined at 30° interpupilary distance adjustable( 50mm-75mm),0.3X CCD adapter |
|
Eyepiece |
Wide field Plan WF10×/22mm |
|
WF10×/20mm,cross hair with reticule0.1mm |
|
|
Objective |
infinite Lone Working distance plan objectives 5X/0.15（W.D.14.47mm） 10X/0.25（W.D.16.01mm） 20X/0.40（W.D.10.5mm） 50X/0.55（W.D.5.1mm） |
|
Nosepiece |
Six hole Nosepiece with DIC jack |
|
Stage |
Stage Size:250mm x 250mm (Glass Stage Size:Ф148mm) |
|
Measuring Range:50mm x 50mm |
|
|
Measuring accuracy:≤(3+L/25) um (L represents length to be measured) |
|
|
Focusing |
Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm Z direction lifting range：150mm |
|
Light Source |
Reflecting illumination,Kohler illumination LED 5V/3W,AV85V-230V,brightness adjustable Transmitted illumination Telecentric Lighting,LED5V/3W,AC85V-230V,brightness adjustable |
|
Checking Tool |
0.01mm Micrometer |
|
Optional Accessory |
Eyepiece：WF15X/17mm、WF20X/12.5mm |
|
infinite Long working distance plan objective 80X/0.70(W.D.3.1mm)\100X/0.80(W.D.3.01mm) |
|
|
Two-dimensional measurement software |
|
|
Professional metallurgical image analysis software 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega piexels CMOS digital camera eyepiece |
|
|
Photography attachment and CCD C-mount: 0.5X、0.57X、0.75X、1X |
|
|
Micrometer eyepiece |
|
|
CCD Camera,colour1/3 high resolution 700 TV lines |
|
|
Various Industrial Camera |
|
