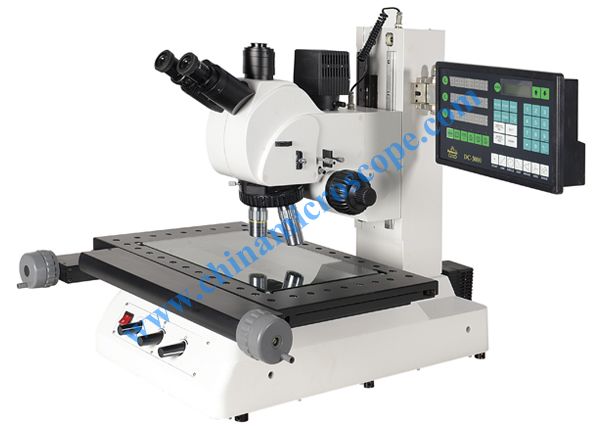

Specification

Optical system

 infinite optical system

Viewing Head

 Positive Compensation free head inclined at 30°

 interpupilary distance adjustable( 50mm-75mm)

Eyepiece

 Super Wide field Plan eyepiece WF10×/23mm

 WF10×/20mm,crosshair with reticule0.1mm

Objective

 95mm infinite Plan Apochromatic LWD objectives

 5X/0.15（W.D.44mm）

 5X/0.15（W.D.44mm）

 5X/0.15（W.D.44mm）

 5X/0.15（W.D.44mm）

Nosepiece

 Quadruple Nosepiece with DIC jack,adjustable center

Stage

 Stage Size:286mm x 286mm

 Moving Range:100mm x 100mm

 Quick X and Y direction moving function

Focusing

 Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm

 Z direction lifting range：150mm

Light Source

 Surface Lighting，Kohler illumination with aperture iris diaphragm and field iris diaphragm；

 field iris diaphragm；Halogen Bulb 12V/50W,AC85V-230V,brightness adjustable

 Contour Lighting

 Telecentric Lighting,Halogen Bulb 12V/50W,AV85V-230V,brightness adjustable

Polarizing Device

 Analyzer rotatable 360°,porlarizer & analyzer

Display Device

 Number of Axes：2 or 3

 Resolution：0.0005mm

 Function：Zero set，directional conversion，data output，TTL Signal

 Power supply：AC85V~230V

Checking Tool

 0.01mm Micrometer

Optional Accessory

 Eyepiece：WF10X/25mm、WF15X/17mm、WF20X/12.5mm

 Objectives：95mm infinite plan apochromatic 2X/0.05（W.D.20mm）、100X0.80（W.D.4.0mm）  Objectives

 Two-dimensional measurement software

 Professional metallurgical image analysis software

 Micrometer eyepiece

 Photography attachment and CCD C-mount：0.5X、0.57X、0.75X

 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega

 pixels digital camera eyepiece

 CCD Camera,colour1/3 high resolution 700 TV lines

 Various industrial Camera
