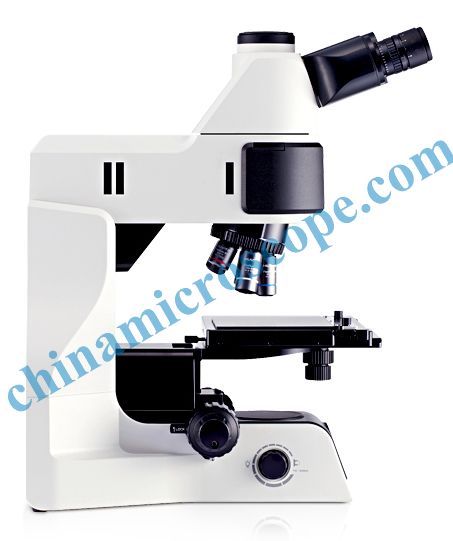

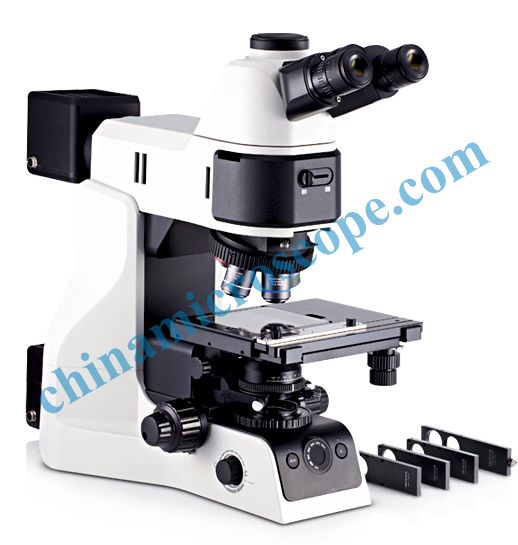

MIC-M3 |
MIC-M3M |
|
|
Optical System |
Infinity-Corrected Optical System |
||
|
Illumination |
Reflected / Transmitted |
Reflected |
|
|
Base unit |
Focus |
Stroke range:29.5 mm Coarse and Fine focusing knob Coarse:17.7 mm/revolution Fine:0.1 mm/revolution (1 ㎛ scale) Upper limit stopper, Torque adjustment ring |
|
|
|
Electronics |
Integrated power supply for 12V 100W light adjustment. LED voltage indicator IL switch and ECO switch |
|
|
Reflected Illumination |
BF/DF |
RLI: Kohler illumination system Brightfield / Darkfield, Normaski DIC, Polarized light |
|
|
BF |
RLIBI: Kohler illumination system Brightfield, Normaski DIC, Polarized light |
||
|
Light source |
LH100: 12V 100W halogen |
||
|
Transmitted Illumination |
|
Kohler illumination system Brightfield Built-in filters (ND6, ND25, LB) |
- |
|
Light source |
LH100: 12V 100W halogen |
||
|
Condenser |
Abbe |
ACD: N.A 1.20 |
- |
|
Long-working |
LWCD: N.A 0.65 |
||
|
Stage |
3X2 inch |
ST3R: glass plate, specimen holder Size 180(W) X 160(D) mm Stroke 79(X) X 55(Y) mm |
|
|
4X4 inch |
ST4R: metal plate, glass plate Size 210(W) X 170(D) mm Stroke 104(X) X 102(Y) mm |
||
|
6X4 inch |
ST6X4R: metal plate, glass plate Size 299(W) X 193(D) mm Stroke 154(X) X 104(Y) mm |
||
|
6X6 inch |
ST6R: metal plate, glass plate Size 300(W) X 280(D) mm Stroke 153(X) X 153(Y) mm |
||
|
Observation Tube |
Trinocular |
WETR: Erect type(F.N 25), Incline angle 20° |
|
|
Binocular |
WEBI: Erect type(F.N 25), Incline angle 20° |
||
|
Eyepieces |
|
EPA10X: 10X(F.N 25), Diopter adjustable |
|
|
Reticle |
Crosshair, X-micrometer, XY-micrometer, Grid |
||
|
Revolving Nosepiece |
BF/DF |
D5BDRE: 5-position Nosepiece for Dark-field objective lens with DIC slot |
|
|
BF |
D5RE: 5-position Nosepiece for Bright-field objective lens with DIC slot |
||
|
Dimensions |
Approx. 246(W) X 572(D) X 514(H) mm |
||
|
Weight |
Approx.19 kg |
||
3D Profile Module for MIC-M3A
|
Mechanism |
High-resolution 5-phase stepping motor, Long cross-roller guide system |
|
Stroke Distance |
30 mm |
|
Resolution |
0.01 ㎛ |
|
Repeatability |
0.5 ㎛ |
|
Max Speed |
1.4 mm/sec |
|
Dimensions |
240(W) X 157(D) X 202.5 (H) mm |
|
Weight |
5 kg |
|
Load capacity |
15 kg |
Objective Lens
|
Objective Lens |
Magnification |
Numerical Aperture |
WD(mm) |
Resolution(㎛) |
|
PlanFluor EPI |
5X |
0.15 |
20 |
2.24 |
|
10X |
0.30 |
11 |
1.12 |
|
|
20X |
0.45 |
3 |
0.75 |
|
|
50X |
0.80 |
1 |
0.42 |
|
|
100X |
0.90 |
1 |
0.37 |
|
|
PlanFluor EPI-BD |
5X |
0.15 |
20 |
2.24 |
|
10X |
0.30 |
11 |
1.12 |
|
|
20X |
0.45 |
3 |
0.75 |
|
|
50X |
0.80 |
1 |
0.42 |
|
|
100X |
0.90 |
1 |
0.37 |
|
|
LPlanFluor EPI |
20X |
0.40 |
12.0 |
0.84 |
|
50X |
0.50 |
10.6 |
0.67 |
|
|
100X |
0.80 |
3.3 |
0.42 |
|
|
LPlanFluor EPI-BD |
20X |
0.40 |
12.0 |
0.84 |
|
50X |
0.50 |
10.6 |
0.67 |
|
|
100X |
0.80 |
3.3 |
0.42 |
