MIC TECH microscope MIC-W5 is design for Hybrid Wireless and USB interface beauty Microscope. It works on its built-in WiFi module，allows up to about 10 mobile devices to watch & record images simultaneously .It can use NOT ONLY
iPAD / iPHONE /Android by wireless BUT also PC windows by USB interface to capture images/video at the mean time.

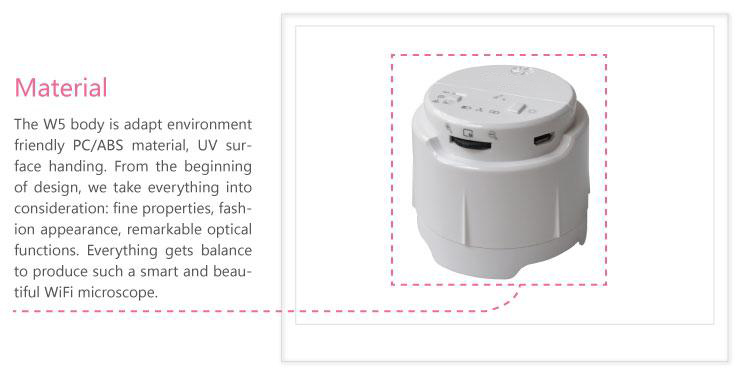

The handheld MIC-W5, a portable and light weighted WiFi microscope that fit in the palm of your hand, providing remarkable image on precision inspection, skin care,
education, art preservation, science, you will find dozens of uses for the Wi-Fi microscope MIC-W5 with 80X magnify.
The smallest Wi-Fi microscope in the world
1) Dual purposes

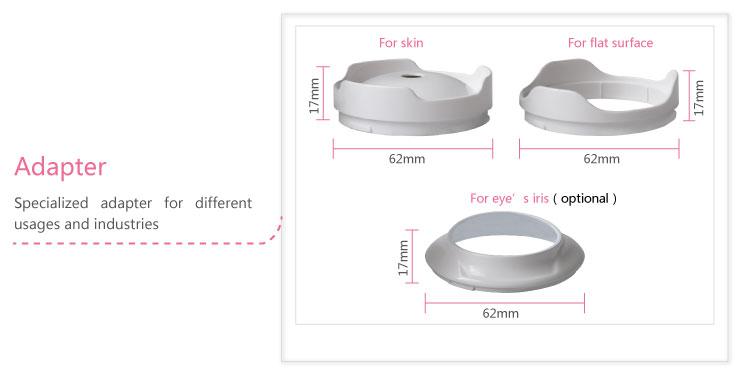

MIC-W5’s unique design comes from its two adapters for dual purposes. One adapter serves for observing uneven and flexible
skin, another is for normal tiny inspections.

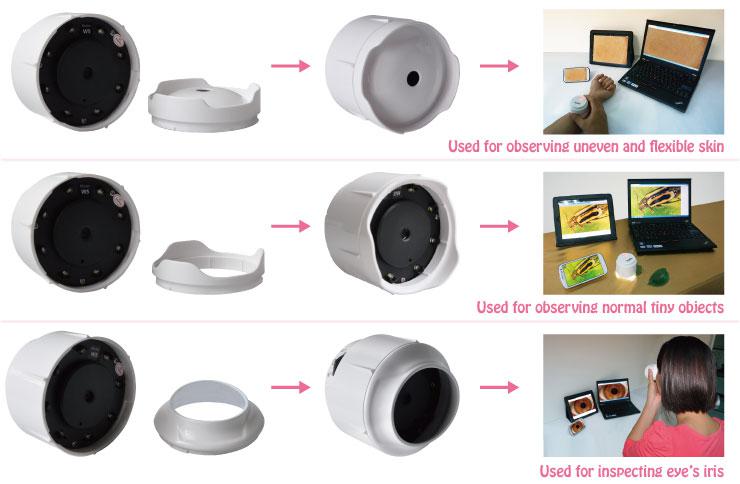

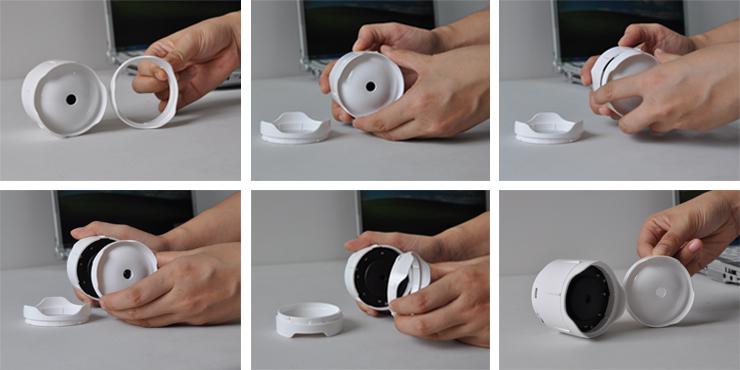

How to change the adapters for dual purposes?

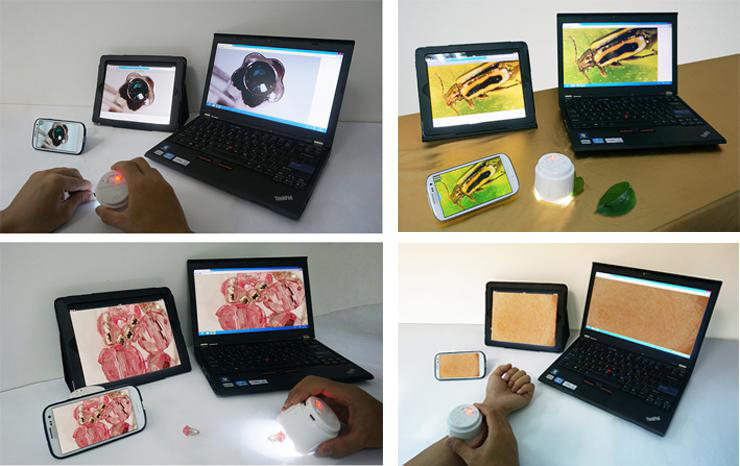

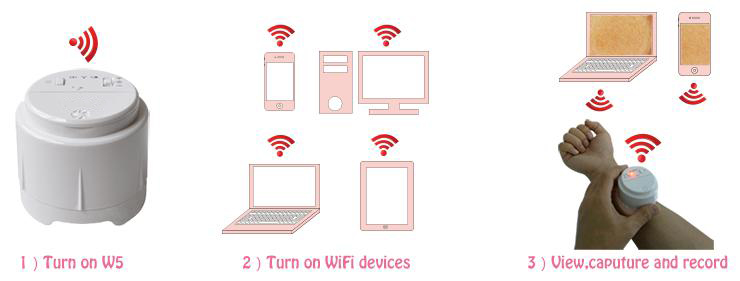

multiple mobile devices (iPhone, iPad, Android phones, PC with Wi-Fi function, tablets )
when you are inspecting an antique/ art painting/signature/insect, distinguish fake money, you may plug

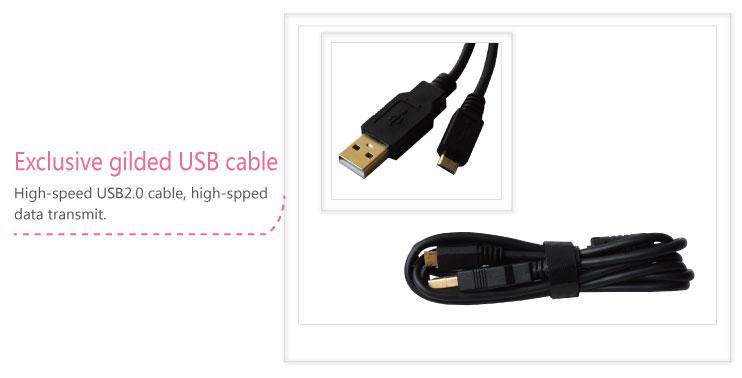

MIC-W5 with normal USB wire into computer and share inspected content with your colleagues/friends/family through
Skype, MSN, QQ, or other instant chatting tools.

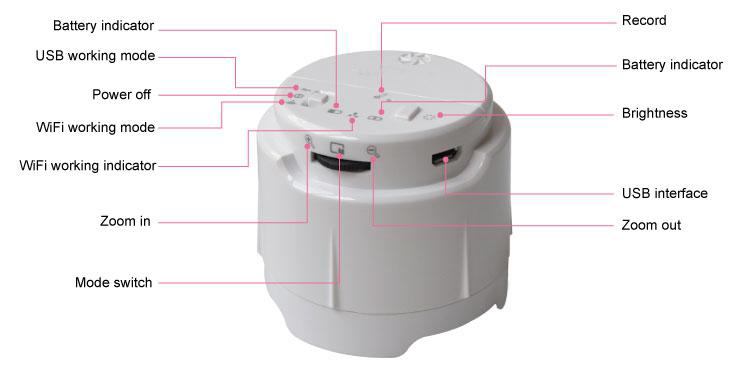

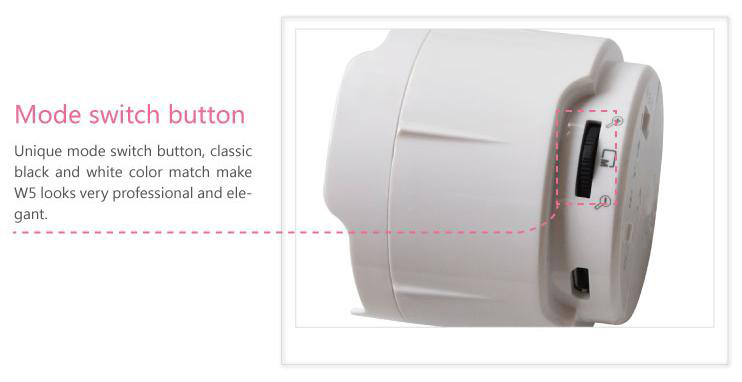

4) Multi-functional buttons on the operate interface
your work become easier.
your MIC-W5into the smart Wi-Fi phones/devices and you are all set for round-the clock viewing/recording.

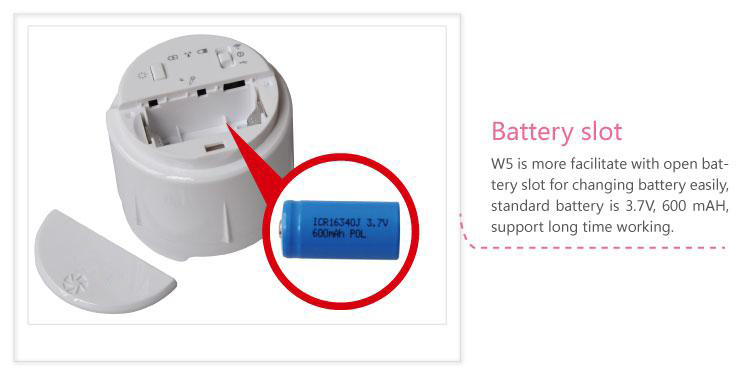

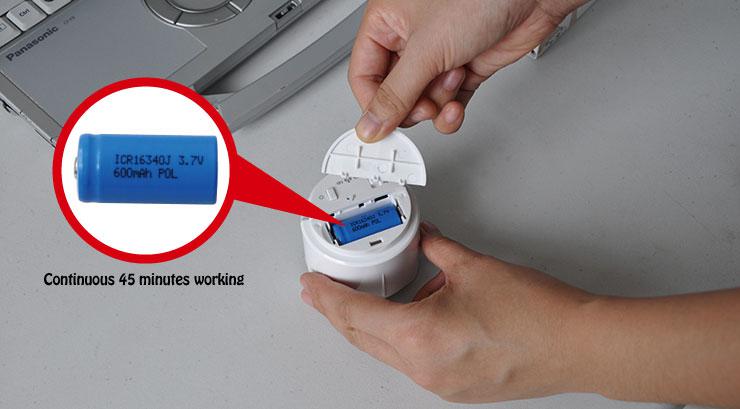

ICR Battery: after charging and battery indicator flashing as yellow, the battery can support MIC-W5 to work independently. Standard accessorized ICR battery is rechargeable and replaceable, and support once
continuous 45 minutes working after fully charged.
And eternity in an hour." Auguries of Innocence"-William Blake
Specification:
|

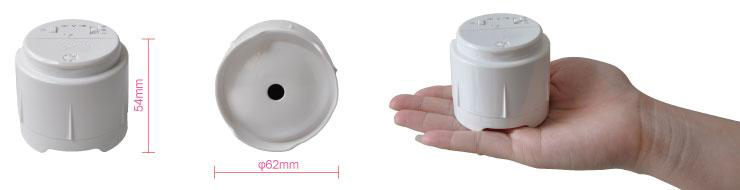

Size/Net weight |
φ62(Diameter)x54mm(Height)/90g |
|
Working modes |
A.USB 2.0 Micro Interface |
|

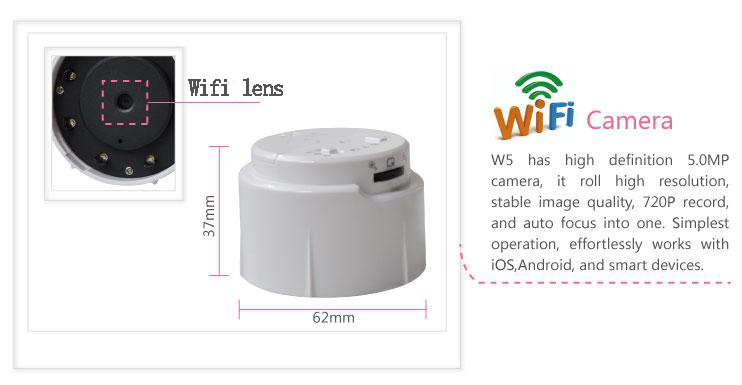

Sensor type |
5.0M true color 1/4”CMOS |
|
5.0M pixels |
High resolution, scan tiny clear |
|

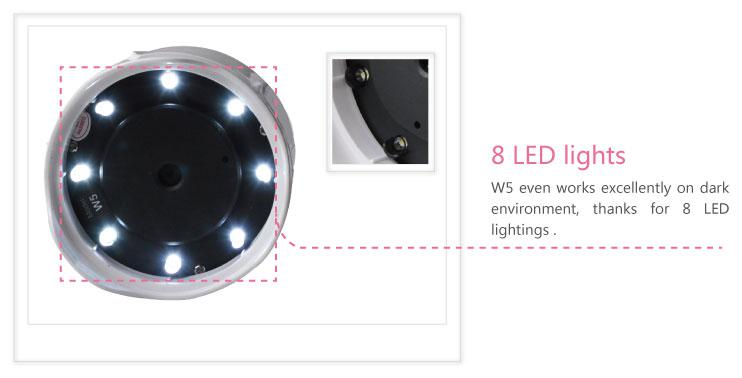

Illumination |
Built in 8LEDs |
|
Speed Shooting |
1 second |
|
Focus Mode |
Single Automatic focus/Continue Automatic focus |
|
magnification |
80X(Display in14”Size Screen) |
|
Operation software |
MIC TECH Capture, Simple operation,easy to use |
|
Resolution |
Max: 2592 x 1944( 5,038,848 Mega Pixel) |
|
A/D switch |
12-bit on chip,10-bit to pc |
|
Image format Frame rate |
YUV output: |
|
Exposure way |
Wide range auto/manual exposure |
|
White balance |
Automatic White Balance/Automatic Exposure |
|
Focus mode |
Continuous auto-focus; single auto-focus; manual fine adjust |
|
Snapshot control API |
native C/C++, C#, Direct Show, UVC |
|
Observe methods |
Still picture and video in real time |
|
Spectral region |
380-650nm (with IR-cut Filter) |
|
Wireless |
wireless protocol: IEEE 802.11b/g/n frequency
range:2.4000--2.4835GHz |
|
Power supply |
Separable and rechargeable LR123 lithiumbattery(3.6 V 600 mAh); |
|
OS requirement |
Microsoft® Windows® XP /Vista/ 7 / 8
(32 & 64 bit) |
|
Hardware |
CPU: equivalent to Intel Core2 1.6GHz or higher Memory :2GB or higher |
